Where can I buy G125-MV15005M3P?

G125-MV15005M3P is available from Digi-Key, Newark, Newark. See pricing comparison above.

What is the price of G125-MV15005M3P?

Pricing ranges from $14.29 to $29.73 depending on quantity and distributor.

Is G125-MV15005M3P in stock?

Yes, G125-MV15005M3P is currently in stock at multiple distributors with immediate availability.

G125-MV15005M3P Harwin Inc. | Connectors, Interconnects | DigiKey

Name: G125-MV15005M3P Harwin Inc. | Connectors, Interconnects | DigiKey
Brand: Harwin Inc.
Price: 29.73 USD
Availability: InStock

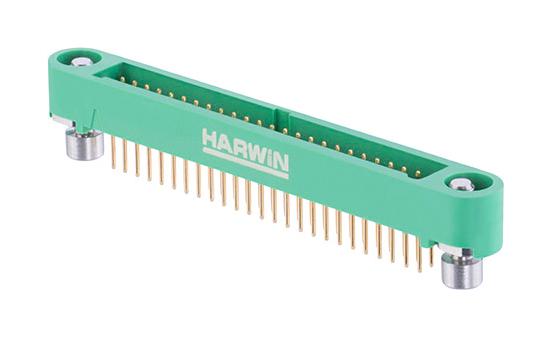

Connector Header Through Hole 50 position 0.049\

Harwin Inc. . G125-MV15005M3P

Attributes

Brand name, Manufacturer name, Manufacturer, Mfr	Harwin Inc.
DimensionUnit	inch
Extra Product Name	G125-MV15005M3P Harwin Inc. \| Connectors, Interconnects \| DigiKey
atoms, moq, multiple, tierMinQty1	1
extraShipping	0
height	0.2854330708661417
height_Attrib	Mated Stacking Heights
length	0.118
length_Attrib	Contact Length - Post
MPN	G125-MV15005M3P
packaging, Package	Strip
qtyInStock	25
SKU	9739377
snippet	Connector Header Through Hole 50 position 0.049\
tierMinQty2	10
tierMinQty3	100
tierMinQty4	500
tierPrice1	29.73000
tierPrice2	26.03100
tierPrice3	23.29910
tierPrice4	21.42448
Category	Connectors, Interconnects
Series	Gecko SL Reverse Fix
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating, Row Spacing - Mating	0.049" (1.25mm)
Number of Positions	50
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Screw Lock
Contact Length - Mating, Overall Contact Length, Ingress Protection, Applications	-
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.193" (4.90mm)
Contact Shape	Circular
Contact Finish - Mating, Contact Finish - Post	Gold
Contact Finish Thickness - Mating, Contact Finish Thickness - Post	8.00?in (0.203?m)
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features	Mating Flange, Mounting Flange, Pick and Place
Operating Temperature	-65?C ~ 150?C
Material Flammability Rating	UL94 V-0
Insulation Color	Green
Current Rating (Amps)	2A
Voltage Rating	450V
Mated Stacking Heights	7.25mm, 7.33mm
Base Product Number	G125-MV1

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Digi-Key	9739377	1	25	1	1 @ $29.73, 10 @ $26.03, 100 @ $23.30, 500 @ $21.42
Newark	89AH5354	1		1
Newark	84AC1680	1	20	1	1 @ $14.29, 10 @ $14.29, 50 @ $14.29, 100 @ $14.29, 250 @ $13.89, 500 @ $13.60, 1000 @ $12.92
