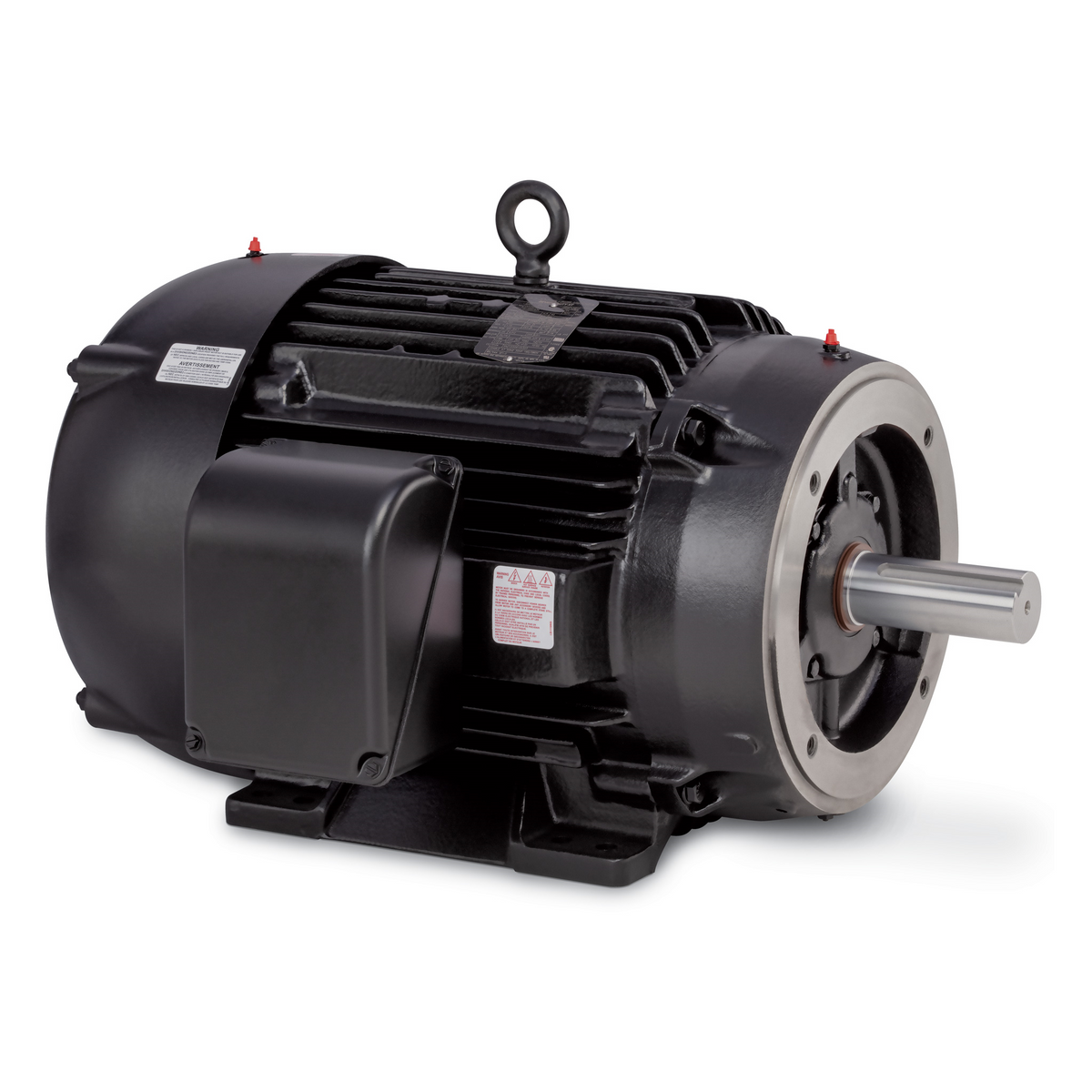

Baldor CXT3502TS Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 50RPM: 3540Volts: 230/460Amps: 56/112Hz: 60Phase: 3Frame: 326TSCEnclosure Material: IronMounting: C-Face/RigidShaft Diameter: 1.875"Overall Length: 28.78"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 93.0%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cyc
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor CXT3502TS Three Phase Severe Duty XT Motor |
| Voltage, Volts | 230/460 |
| Weight | 600 |
| WeightUnit | lbs |
| diameter, height, width | 1.875 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 28.78 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | CXT3502TS |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 6822.38 |
| Product Type | Three Phase |
| HP | 50 |
| RPM | 3540 |
| Amps | 56/112 |
| Hz | 60 |
| Phase | 3 |
| Frame | 326TSC |
| Enclosure Material | Iron |
| Mounting | C-Face/Rigid |
| Shaft Diameter | 1.875" |
| Overall Length | 28.78" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 93.0% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 12-0000-1904 |
| Ship Weight | 600 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| CXT3502TS | 1 | -2 | 1 | 1 @ $6822.38 |
