Blower,22 In

Blower 22 In | AF3LKX | Worldwide Delivery | +44 203 287 5224 | [email protected]

Dayton . 7HR56

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL34996
CategoryIdL130
CategoryIdL24581
CategoryL1Heating & Cooling
CategoryL2Blowers
CategoryL3Belt Drive Blowers
DimensionUnitinch
GraingerSku, MPN7HR56
Extra Product NameBlower,22 In
UPC, Housing FinishNone
UnitOfMeasureEA
Voltage230/460
Weight, height, length, moq, multiple, tierMinQty1, width, Number of Speeds1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
jsonUrlData924526ffbdad25e5923b
qtyInStock99999
qtyInStockOverrideDrop Ship
SKUG2559295
tierPrice12775.51
urlhttps://www.zoro.com/dayton-blower-22-in-7hr56/i/G2559295/
Wheel Dia (In ), Wheel Diameter22 1/8 in
Wheel Width (In ), Wheel Width10 7/8 in
Shaft Dia (In ), Dimension R (In )1 3/16 in
Dimension M (In )15 1/4 in
Dimension E (In ), Discharge Height (In ), Outlet Height27 1/4 in
Dimension H (In )20 1/8 in
Dimension D (In )5/8 in
Inlet Dia (In ), Dimension F (In )22 5/16 in
Dimension L (In ), Overall Height40 1/8 in
Dimension C (In )15 11/16 in
Dimension T (In )1 1/2 in
Housing Length (In ), Dimension B (In ), Housing Depth, Overall Width35 1/8 in
Housing Width (In ), Dimension K (In ), Discharge Width (In ), Housing Width, Outlet Width17 1/8 in
Dimension Z (In )3/4 in
Dimension A (In ), Housing Height (In )39 7/16 in
Dimension G (In )21 in
Dimension J (In )22 15/16 in
Dimension X (In )3/8 in
Dimension S (In )3 3/4 in
Dimension Y (In )2 1/2 in
Outlet Size27 1/4 in x 17 1/8 in
Flange Size, Outlet Diameter, Airflow @ 1 250 in SP, Airflow @ 4 500 in SP, Airflow @ 11 00 in SP, Airflow @ 1 000 in SP, Airflow @ 0 000 in SP, Airflow @ 0 100 in SP, Airflow @ 6 000 in SP, Airflow @ 10 00 in SPNot Applicable
Overall Depth21 1/8 in
Wheel Dimensions22 1/8 in Dia. x 10 7/8 in W
Shaft Diameter1 1/8 in
Inlet Diameter22 1/4 in
Manufacturer Warranty Length1 yr Limited
Housing Height39 3/8 in
ItemBlower

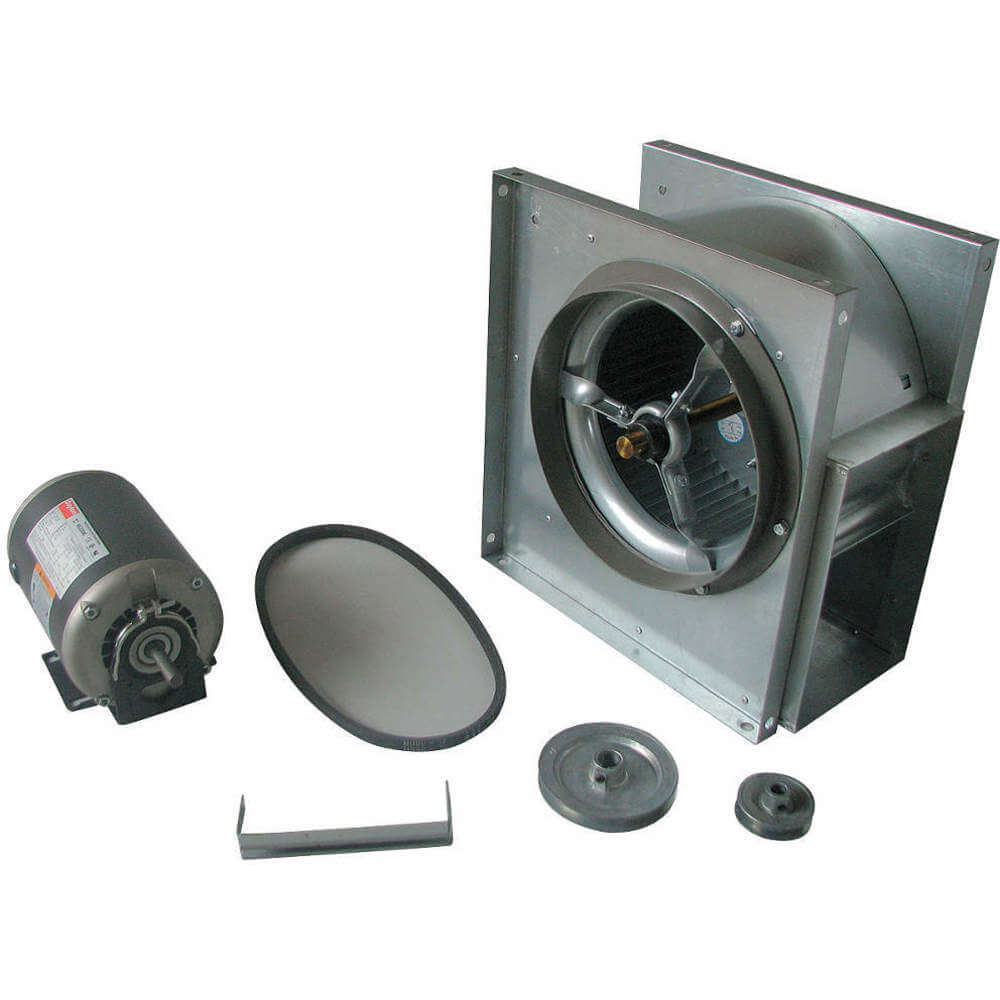

TypeBelt Drive, Single Inlet Forward Curve With Drive Package
Motor HP3 hp
CFM @ 0 250-In SP8,380 cfm
CFM @ 0 500-In SP, Airflow @ 0 500 in SP7,220 cfm
Assembled/UnassembledUnassembled
Motor EnclosureOpen Dripproof
Blower RPM445
Motor InsulationClass F
Housing Material, Wheel MaterialSteel
CFM @ 0 125-In SP8,780 cfm
CFM @ 0 750-In SP5,450 cfm
Motor Type3-Phase
Full Load Amps9.2-8.3/4.2
Motor RPM1,750 RPM
Phase3
Max Blower RPM600
Max Inlet Temp (Deg F)150 Degrees F
RotationCW
Max Ambient Temp (F), Maximum Ambient Temperature104 Degrees F
Bearing TypeBall
Hz60 Hz
Mounting PositionBlower Shaft Horizontal
StandardsCSA Certified, UL Listed
Motor Speed1,770 RPM
Airflow @ 2 500 in SP RangeMore than 5000 cfm
Maximum Static Pressure3/4 in wc
Motor Duty ClassContinuous
Motor Enclosure DesignOpen Dripproof (ODP)
Outlet ShapeRectangular
Includes MotorYes
Motor Insulation ClassF
Current8.3-7.8/3.9 A
Number of Discharge Positions4
Nameplate Voltage, Nominal Voltage208-230/460V AC
MarketIndustrial
Flange Type_broadOutlet
Mounting OrientationHorizontal
Airflow @ 0 500 in SP RangeMore than 4000 cfm
For Fan Speed (Dependent on Motor)445 RPM to 600 RPM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG255929519999911 @ $2775.51
Grainger7HR56111 @ $2841.00
Raptor SuppliesAF3LKX111 @ $4560.61
simsupply.comZO-G255929514211 @ $3219.46
