Marathon Motors . H192

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
UPC786674022813
UnitOfMeasureEA
Voltage200-230/460V AC
Weight19
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead25
extendedQty-2
height, width10
length13
moq, multiple, tierMinQty1, No of Speeds1
MPNH192
qtyInStock0
SKUG700905190
tierPrice1329.54
urlhttps://www.zoro.com/marathon-motors-3-phase-general-purpose-pump-motor-12-hp-56c-frame-200-230460v-ac-voltage-3-450-nameplate-rpm-h192/i/G700905190/

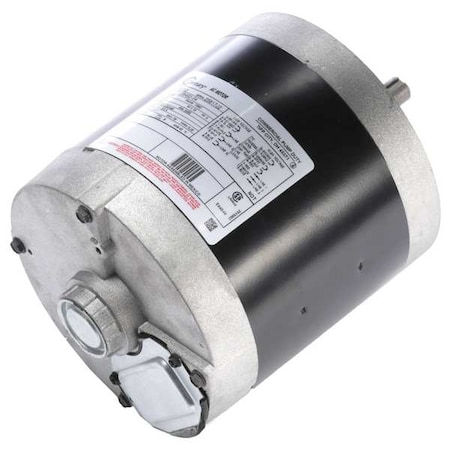

ItemGeneral Purpose Pump Motor
Motor Enclosure DesignTotally Enclosed Nonventilated
Height6 1/2 in
Motor Mounting TypeFace
HP1/2
RPM Range3,001-3,600
Frame56C
Motor Thermal Protection, NEMA DesignNone
Motor Service Factor1.2
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM3,450
Motor Shaft RotationCW/CCW
Motor Frame MaterialSteel
Motor Shaft DesignKeyed
StandardsCSA Certified, UL Recognized
Bearing ProtectionShaft Shields
Length Less Shaft7 1/2 in
Usable @ 208VNo
Shaft MaterialStainless Steel
Overall Length9 9/16 in
Body Dia6.5 in
Full Load Amps1.9-1.8/0.9
Duty CycleContinuous
Hz60
Usable @ 200VYes
Shaft Length2 1/16 in
Ins ClassB
PhaseThree
Max Ambient Temp104 Degrees F
Shaft Dia5/8 in
Bolt Circle Dia5 7/8 in
Motor BearingsBall
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG700905190111 @ $329.54
GalcoH192-MARA111 @ $542.50
