SZP6SMB62AT3G Littelfuse Inc. | Circuit Protection | DigiKey

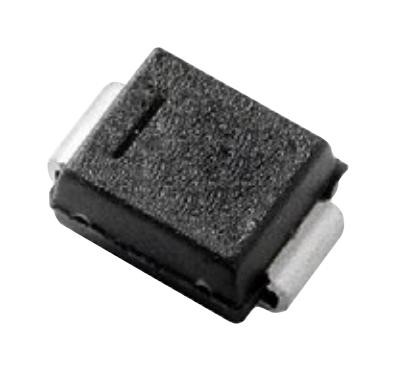

85V Clamp 7.1A Ipp Tvs Diode Surface Mount SMB
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| Extra Product Name | SZP6SMB62AT3G Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, tierMinQty1, Unidirectional Channels | 1 |
| extendedLead | 44 Weeks |
| extraShipping | 0 |
| moq, multiple | 2,500 |
| MPN | SZP6SMB62AT3G |
| qtyInStock | 4544 |
| SKU | 9326960 |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1,000 |
| tierPrice1 | 0.6325 |
| tierPrice2 | 0.5382 |
| tierPrice3 | 0.40169499999999997 |
| tierPrice4 | 0.31558299999999995 |
| tierPrice5 | 0.24386899999999997 |
| Category | Circuit Protection |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Type | Zener |
| Voltage - Reverse Standoff (Typ) | 53V |
| Voltage - Breakdown (Min) | 58.9V |
| Voltage - Clamping (Max) @ Ipp | 85V |
| Current - Peak Pulse (10/1000?s) | 7.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 335pF @ 1MHz |
| Operating Temperature | -65?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | P6SMB |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 9326960 | 2500 | 4544 | 2500 | 1 @ $0.63, 10 @ $0.54, 100 @ $0.40, 500 @ $0.32, 1000 @ $0.24 |
 Newark | 67AH3262 | 5 | 5 | 1 @ $0.53, 10 @ $0.45, 25 @ $0.40, 50 @ $0.36, 100 @ $0.31, 250 @ $0.28, 500 @ $0.24 | |
| Newark | 34AC6280 | 2500 | 2500 | 1 @ $0.20, 5000 @ $0.20, 10000 @ $0.18, 20000 @ $0.17, 30000 @ $0.16, 50000 @ $0.15 | |
| Digi-Key | 9327186 | 1 | 3534 | 1 | 1 @ $0.63, 10 @ $0.54, 100 @ $0.40, 500 @ $0.32, 1000 @ $0.24 |
| Digi-Key | 3063450 | 1000 | 1000 | 1 @ $0.63, 10 @ $0.54, 100 @ $0.40, 500 @ $0.32, 1000 @ $0.24 |
