TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 13 to 18 A, screw clamp | Mayer Electric

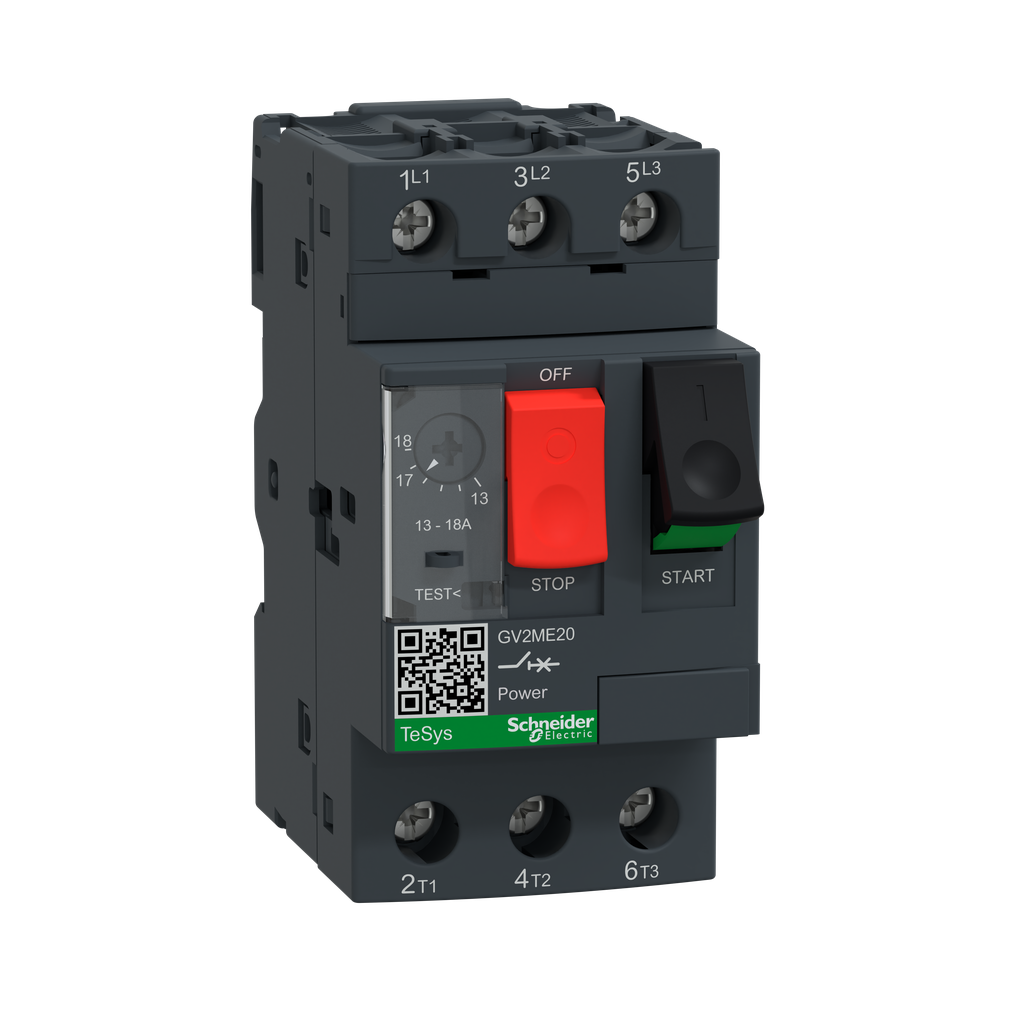

Shop SQUARE D at Mayer. TeSys GV2 Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 13 to 18 A, screw clamp

Mayer Electric Supply . GV2ME20

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameTeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 13 to 18 A, screw clamp | Mayer Electric
UPC3389110343199
Weight0.26
WeightUnitkg
Weight_AttribNet Weight
color, Colordark grey
depth, length78.5
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-TeSys-GV2-Manual-Starter-and-Protector-thermal-magnetic-circuit-protector-push-buttons-13-to-18-A-screw-clamp-785901211990
jsonUrlData205ffa4b2-af87-477c-947e-abb200c9d0ec
keywordsSQUARE D, Mayer SQUARE D, 785901211990, GV2ME20
length_AttribDepth
moq, multiple, tierMinQty11
MPNGV2ME20
qtyInStock0
SKUSQDGV2ME20
snippetShop SQUARE D at Mayer. TeSys GV2 Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 13 to 18 A, screw clamp
tierPrice1256.05
width45.0
width_AttribWidth
Ambient Air Temperature For Operation-20-60 ?C
Climatic WithstandIACS E10
Ip Degree Of ProtectionIP20 IEC 60529
StandardsEN/IEC 60947-2 || EN/IEC 60947-4-1
Ambient Air Temperature For Storage-40-80 ?C
Fire Resistance960 ?C IEC 60695-2-11
Product CertificationsCCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA
Ik Degree Of ProtectionIK04
Mechanical Robustnessshocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
Operating Altitude6561.68 ft (2000 m)
Warranty18 months
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Circularity ProfileENVEOLI121004
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectiveCompliant
Environmental DisclosureENVPEP121004
Sustainable Offer StatusGreen Premium product
Control Typepush-button
Depth78.5 mm
Network TypeAC
Power Dissipation Per Pole2.5 W
Width45 mm
Electrical Durability100000 cycles AC-3 415 V In
Poles Description3P
Tightening Torque1.7 N.m screw clamp terminal
[Ue] Rated Operational Voltage, [Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2
Net Weight0.26 kg
[Ith] Conventional Free Air Thermal Current18 A IEC 60947-4-1
Phase Failure Sensitivityyes IEC 60947-4-1
Thermal Protection Adjustment Range13-18 A IEC 60947-4-1
Line Rated Current18 A
Network Frequency50/60 Hz IEC 60947-4-1
Utilisation Categorycategory A IEC 60947-2 || AC-3 IEC 60947-4-1
Magnetic Tripping Current223-223 A
Motor Power Kw7.5-7.5 kW 400/415 V AC 50/60 Hz || 9-9 kW 500 V AC 50/60 Hz || 15-15 kW 690 V AC 50/60 Hz
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Mechanical Durability100000 cycles
Suitability For Isolationyes IEC 60947-1 ? 7-1-6
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Height89 mm
Rated Dutycontinuous IEC 60947-4-1
Product NameTeSys GV2 || TeSys Deca
Device Applicationmotor protection
Product Or Component Typemotor circuit breaker
Device Short NameGV2ME
RangeTeSys Deca
Trip Unit Technologythermal-magnetic

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDGV2ME20111 @ $256.05
