Complete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC | Mayer Electric

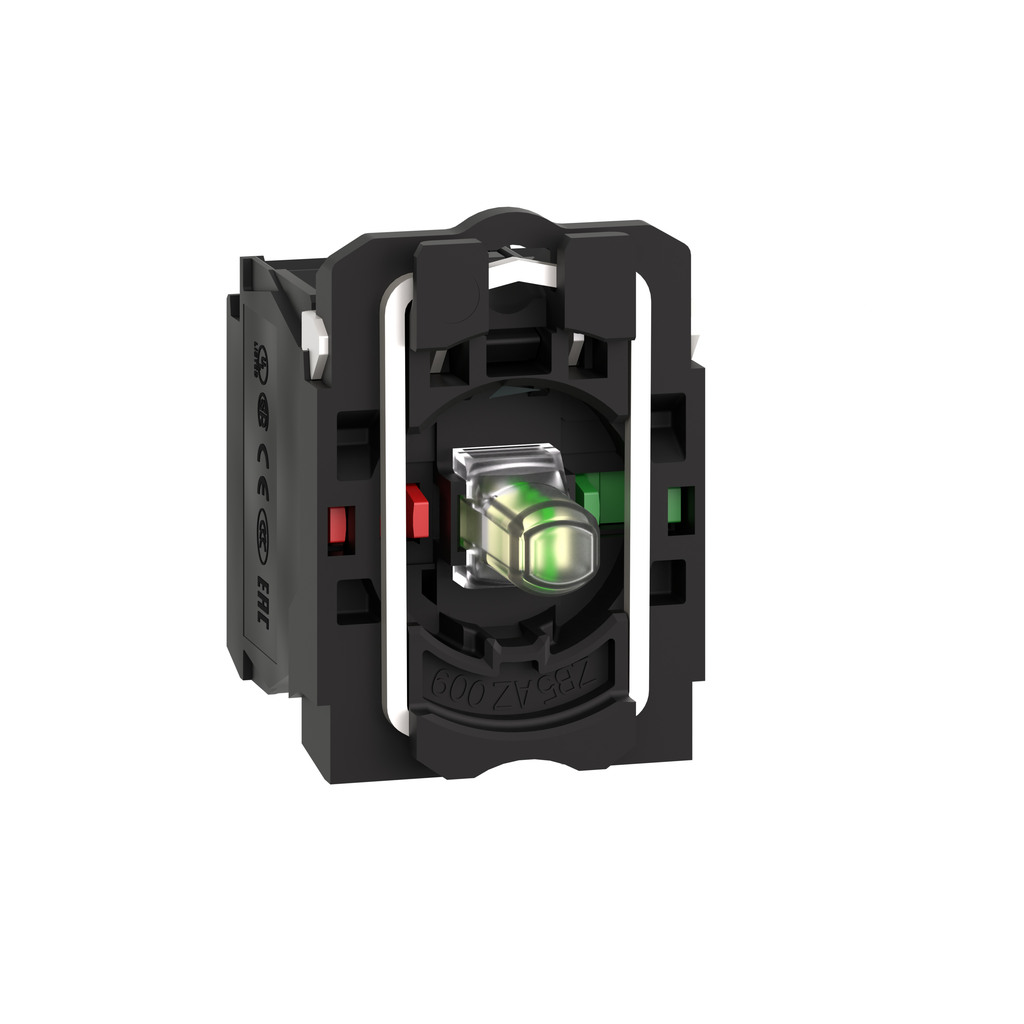

Complete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC

Mayer Electric Supply . ZB5AW0B15

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameComplete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC | Mayer Electric
UPC3389110908398
Weight0.042
WeightUnitkg
Weight_AttribNet Weight
height42.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-Harmony-XB5-Light-block-with-body-fixing-collar-plastic-white-integral-LED-24-V-AC-DC-1-NO-1-NC-785901387763
jsonUrlData2329687a5-32b4-42d0-b6ac-aeea00590f0c
keywordsComplete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC SQDZB5AW0B15
length32.0
length_AttribCad Overall Depth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPNZB5AW0B15
qtyInStock0
SKUSQDZB5AW0B15
snippetComplete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC
tierPrice187.73
width30.0
width_AttribCad Overall Width
Resistance To Fast Transients2 kV IEC 61000-4-4
Electrical Shock Protection Classclass II IEC 60536
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Ambient Air Temperature For Storage, Ambient Air Temperature For Operation-40-70 ?C
Product CertificationsCSA || LROS (Lloyds register of shipping) || UL Listed || BV || GL || DNV
Electromagnetic Emissionclass B IEC 55011
StandardsJIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Protective TreatmentTH
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Warranty18 months
Rohs Exemption Information, Mercury FreeYes
China Rohs RegulationX
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP1710010EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity ProfileENVEOLI1710010EN
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Net Weight0.042 kg
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Mechanical Durability5000000 cycles
Terminals Description Iso N?1(13-14)NO || (11-12)NC
Positive Openingwith IEC 60947-5-1 appendix K
Service Life100000 h at rated voltage and 25 ?C
Device Presentationbasic sub-assemblies
Contacts Materialsilver alloy (Ag/Ni)
Current Consumption18 mA
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
Cad Overall Height42 mm
Operating Force2 N NC changing electrical state || 2.3 N NO changing electrical state
Contacts Usage, Head Typestandard
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Operating Torque0.05 N.m NO changing electrical state
Cad Overall Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Signalling Typesteady
Surge Withstand1 kV IEC 61000-4-5
Cad Overall Depth32 mm
Light Block Supplydirect
Range Of ProductHarmony XB5
Contacts Type And Composition1 NO + 1 NC
Light Source Colourwhite
Product Or Component Typecomplete body/contact assembly and light block
Light Sourceuniversal LED
Bulb Baseintegral LED
Device Short NameZB5
Fixing Collar Materialplastic
Contact Operationslow-break

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZB5AW0B15111 @ $87.73
