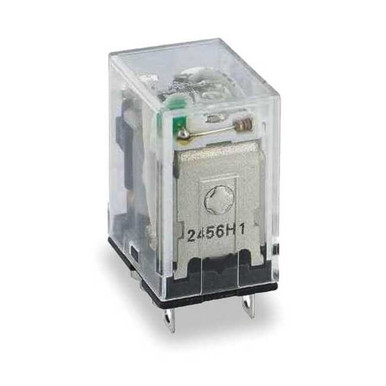

LY1N-AC24 Omron Automation and Safety | Relays | DigiKey
General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 120V, 15 A @ 120V, Contact Rating (DC) 15 A @ 24V, 7 A @ 24V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Omron Automation and Safety |
|---|---|
| Extra Product Name | LY1N-AC24 Omron Automation and Safety | Relays | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | LY1N-AC24 |
| qtyInStock | 10 |
| SKU | Z11219-ND |
| Part Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | SPDT (1 Form C) |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating, Coil Insulation | - |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operating Temperature | -25?C ~ 55?C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
| Contact Rating (Current) | 15 A |
| Coil Current | 46 mA |
| Operate Time, Release Time | 25 ms |
| Coil Resistance | 180 Ohms |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | Z11219-ND | 1 | 10 | 1 | |
 Onlinecomponents.com | LY1NAC24 | 1 | 4 | 1 | 1 @ $8.30, 25 @ $7.66, 100 @ $7.12, 250 @ $6.64, 500 @ $6.39 |
 Zoro | G0901013 | 1 | 190 | 1 | 1 @ $10.99 |
| Grainger | 1YCN1 | 1 | 1 | ||
 Radwell | LY1N-AC24 | 1 | 3 | 1 | |
| Galco | LY1N-AC24 | 1 | 1 | ||
| AB4HUY | 1 | 1 | 1 @ $17.44 | ||
| Newark | 89C7006 | 1 | 1 | 1 @ $17.87, 5 @ $16.89, 10 @ $14.84, 25 @ $13.33, 50 @ $12.49, 100 @ $11.81, 250 @ $11.13 | |
| Allied Electronics | 71063112 | 1 | 1 | ||
| sustainablesupply.com | C1168641 | 1 | -2 | 1 | 1 @ $12.74 |
| Kele | LY1N-AC24 | 1 | 42 | 1 | 1 @ $14.04 |
 grainger.ca | WWG1YCN1 | 1 | 1 | ||
| LY1N-AC24-OMRN | 1 | 1 | 1 @ $0.00 | ||
| Airline Hydraulics | OMRON LY1N-AC24 | 1 | 1 | ||
| us.rs-online.com | 71063112 | 1 | 2 | 1 | 1 @ $17.03, 10 @ $15.14, 25 @ $14.38, 50 @ $13.62 |
| Digi-Key | 369461 | 1 | 1 | ||
| Master Electronics | LY1NAC24 | 1 | 35 | 1 | 1 @ $17.99, 3 @ $10.49 |
 simsupply.com | ZO-G0901013 | 1 | 97 | 1 | 1 @ $20.12 |
