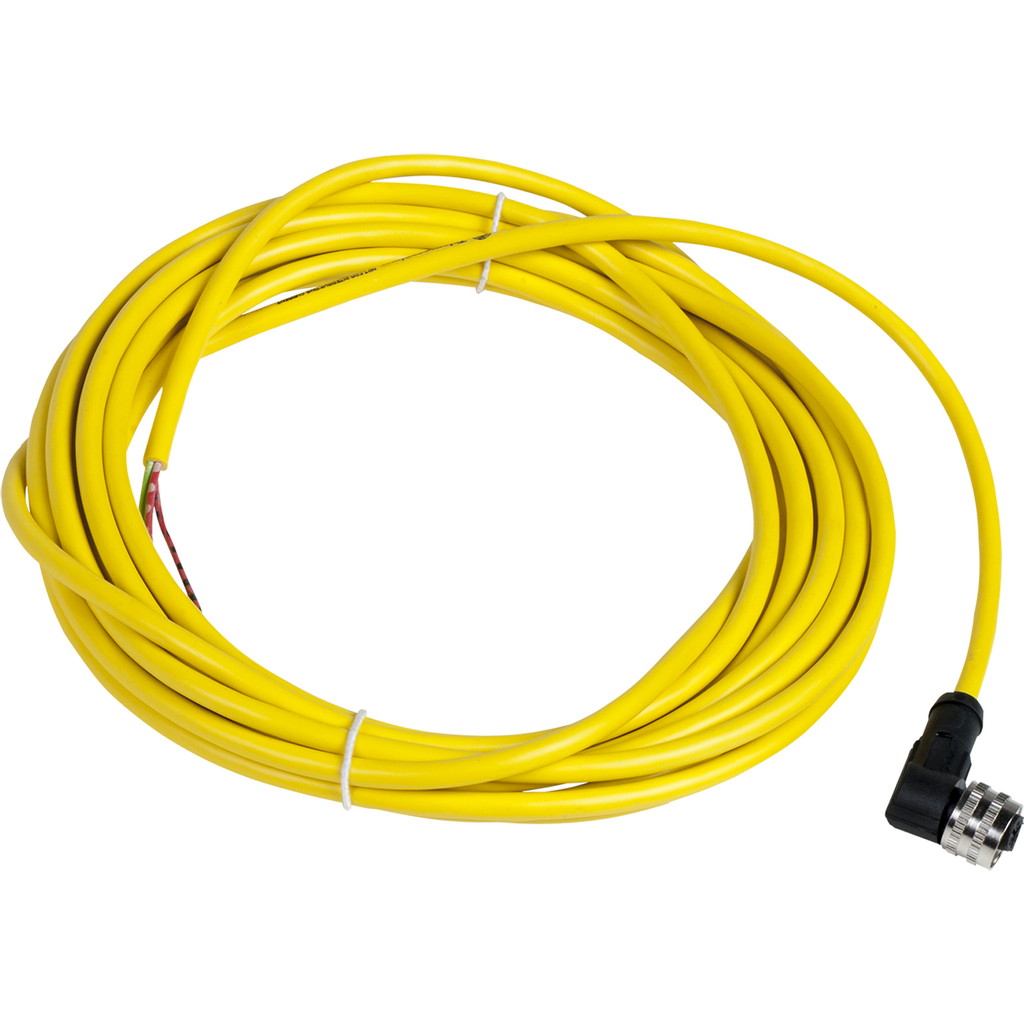

Pre wired connectors XZ, elbowed female, 1/2"20 UNF, 3 pins, cable PVC 5 m | Mayer Electric

Mayer Electric Supply . XZCPV1965L5

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NamePre wired connectors XZ, elbowed female, 1/2"20 UNF, 3 pins, cable PVC 5 m | Mayer Electric
UPC785901578062
Weight0.35
WeightUnitkg
Weight_AttribNet Weight
diameter, height, width0.005200000000000001
height_Attrib, width_AttribCable Outer Diameter
jsonUrlData/Product/SQUARE-D-Pre-wired-connectors-XZ-elbowed-female-1-220-UNF-3-pins-cable-PVC-5-m-785901578062
jsonUrlData2dab5c1f0-7a10-464a-91af-ade40063c20b
length5.0
length_AttribCable Length
moq, multiple, tierMinQty11
MPNXZCPV1965L5
qtyInStock0
SKUSQDXZCPV1965L5
tierPrice126.79
Series Namegeneral purpose
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part Typepre-wired connectors
Warranty18 months
Collar Materialmetal
Electrical Connectionelbowed female connector 1/2"20 UNF, 3 pins
Cable Outer Diameter5.2 mm
Minimum Insulating Resistance1 G?
Wire Insulation MaterialPVC
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Cable Connector Fixingscrew-on
Cable Length5 m
Line Rated Current4 A
Cable Composition3 x 0.34 mm?
Status Ledwithout
Net Weight0.35 kg
Contact Resistance5000 ?Ohm
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationscULus
Ambient Air Temperature For Operation-25-80 ?C static
Ambient Air Temperature For Storage-25-80 ?C
Ip Degree Of ProtectionIP67 || IP65

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXZCPV1965L5111 @ $26.79
