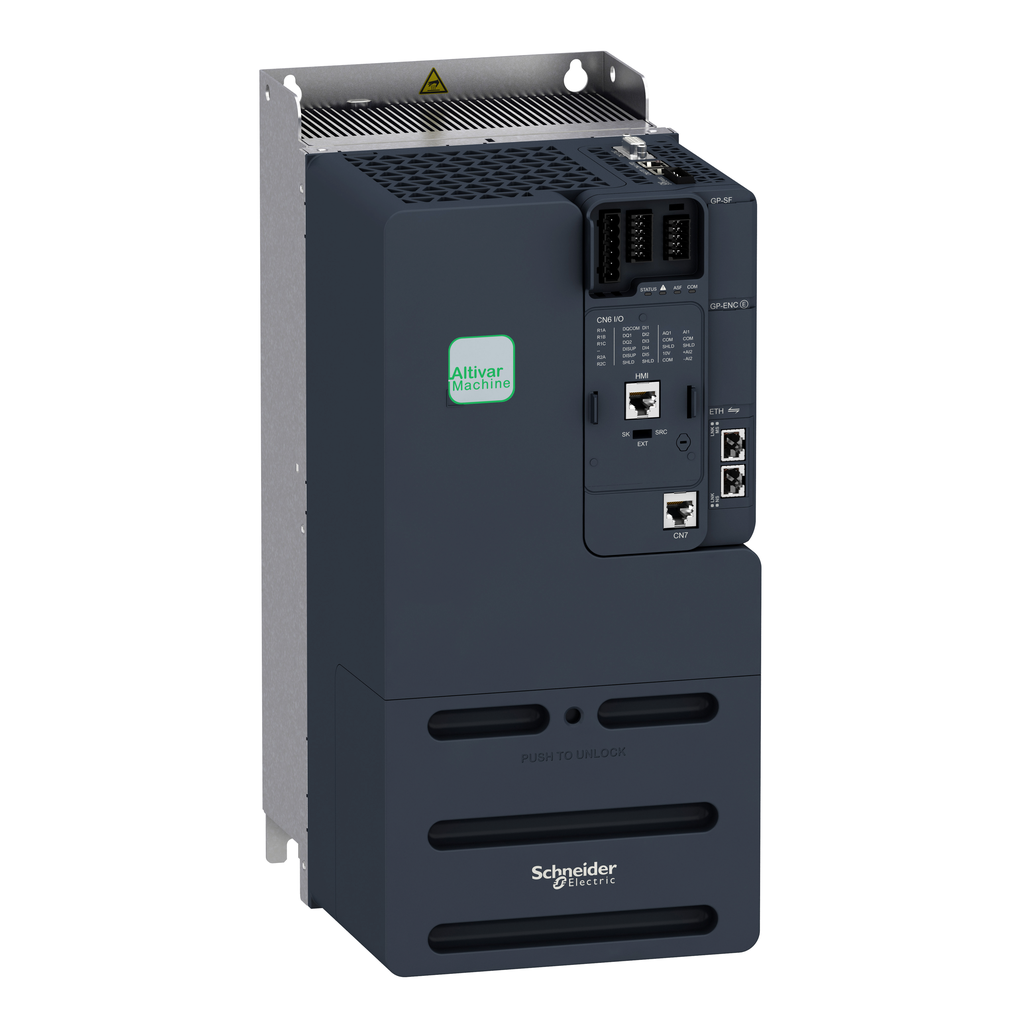

Variable speed drive, Altivar Machine ATV340, 22 kW Heavy Duty, 400 V, 3 phases, Ethernet | Mayer Electric

Mayer Electric Supply . ATV340D22N4E

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Machine ATV340, 22 kW Heavy Duty, 400 V, 3 phases, Ethernet | Mayer Electric
UPC785901745822
Weight10.2
WeightUnitkg
Weight_AttribNet Weight
depth, length249.0
height385.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Variable-speed-drive-22kW-400V-3-phases-ATV340-Ethernet-785901745822
jsonUrlData224112951-9035-4686-8b1a-abde00f73329
length_AttribDepth
moq, multiple, tierMinQty11
MPNATV340D22N4E
qtyInStock0
SKUSQDATV340D22N4E
tierPrice15414.54
width180.0
width_AttribWidth
Variantstandard version
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP20
Phase3 phase
Communication Port ProtocolModbus TCP || EtherNet/IP || Modbus serial
Nominal Output Current, Base Load Current At High Overload46.0 A
Product Specific Applicationmachine
Maximum Horse Power Rating40 hp normal duty || 30 hp heavy duty
Supply Frequency50...60 Hz +/- 5 %
Option Cardcommunication module, PROFINET || communication module, DeviceNet || communication module, CANopen || communication module, EtherCAT
Range Of ProductAltivar Machine ATV340
Motor Power Kw30 kW normal duty || 22 kW heavy duty
[Us] Rated Supply Voltage380...480 V - 15...10 %
Mounting Modecabinet mount
Emc Filterclass C3 EMC filter integrated
Prospective Line Isc22 kA
Line Current60.1 A 380 V normal duty) || 48.6 A 480 V normal duty) || 63.5 A 380 V heavy duty) || 50.6 A 480 V heavy duty)
Analogue Output Typesoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Discrete Output Typeprogrammable output DQ1, DQ2 30 V DC 100 mA
Electrical Connectionscrew terminal 0.2...2.5 mm? control || screw terminal 6...25 mm? motor || screw terminal 10...25 mm? line side || screw terminal 10...25 mm? DC bus
Asynchronous Motor Control Profileoptimized torque mode || constant torque standard || variable torque standard
4 Quadrant Operation Possible, With Safety Function Safe Stop 1 (Ss1), With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Torque Off (Sto), Brake Chopper Integrated, With Safety Function Safely Limited Speed (Sls)true
Apparent Power45.1 kVA 480 V normal duty) || 42.1 kVA 480 V heavy duty)
Net Weight10.2 kg
With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Sft Fct Safe Stop 2 (Ss2), With Safety Function Safe Speed Monitor (Ssm), With Safety Function Safe Programmable Logicfalse
Type Of Polarizationno impedance
Relay Output Typerelay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
Switching Frequency2...16 kHz adjustable || 6...16 kHz with derating factor
Maximum Transient Current68.2 A 60 s normal duty) || 69 A 60 s heavy duty) || 83.7 A 2 s normal duty) || 83 A 2 s heavy duty)
Analogue Input Number, Relay Output Number, Analogue Output Number2
Motor Slip Compensationautomatic whatever the load || can be suppressed || adjustable || not available in permanent magnet motor law
Discrete Output Number2.0
Method Of Accessslave Modbus RTU || slave Modbus TCP
Number Of Addresses1-247
Discrete Input Number5
Width180.0 mm
Transmission Rate4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Depth249.0 mm
Maximum Output Frequency0.599 kHz
Height385.0 mm
Acceleration And Deceleration RampsS, U or customized || linear adjustable separately from 0.01...9999 s
Maximum Output Voltage480 V
Transmission FrameRTU
Data Format8 bits, configurable odd, even or no parity
Base Load Current At Low Overload62.0 A
Connector Type3 RJ45
Pollution Degree2 EN/IEC 61800-5-1
Physical Interface2-wire RS 485
Minimum Switching Currentrelay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Discrete Input Logic16 preset speeds
Continuous Output Current62 A 4 kHz normal duty || 46 A 4 kHz heavy duty
Nominal Switching Frequency4 kHz
Braking To Standstillby DC injection
Discrete Input TypePTI programmable as pulse input 0-30 kHz, 24 V DC 30 V) || DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm || programmable
Synchronous Motor Control Profilepermanent magnet motor || reluctance motor
Mercury Free, Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
UpgradeabilityUpgraded components available
Environmental DisclosureENVPEP1609006EN
Sustainable Offer StatusGreen Premium product
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1609006EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL || CSA || T?V || EAC || CTick
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...9 Hz
StandardsEN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
Regulation Loopadjustable PID regulator
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Overvoltage Categoryclass III
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Maximum Acceleration Under Shock Impact (During Operation)70 m/s? at 22 ms
Ambient Air Temperature For Operation-15-50 ?C without derating vertical position) || 50-60 ?C with derating factor vertical position)
Volume Of Cooling Air128.0 m3/h
MarkingCE
