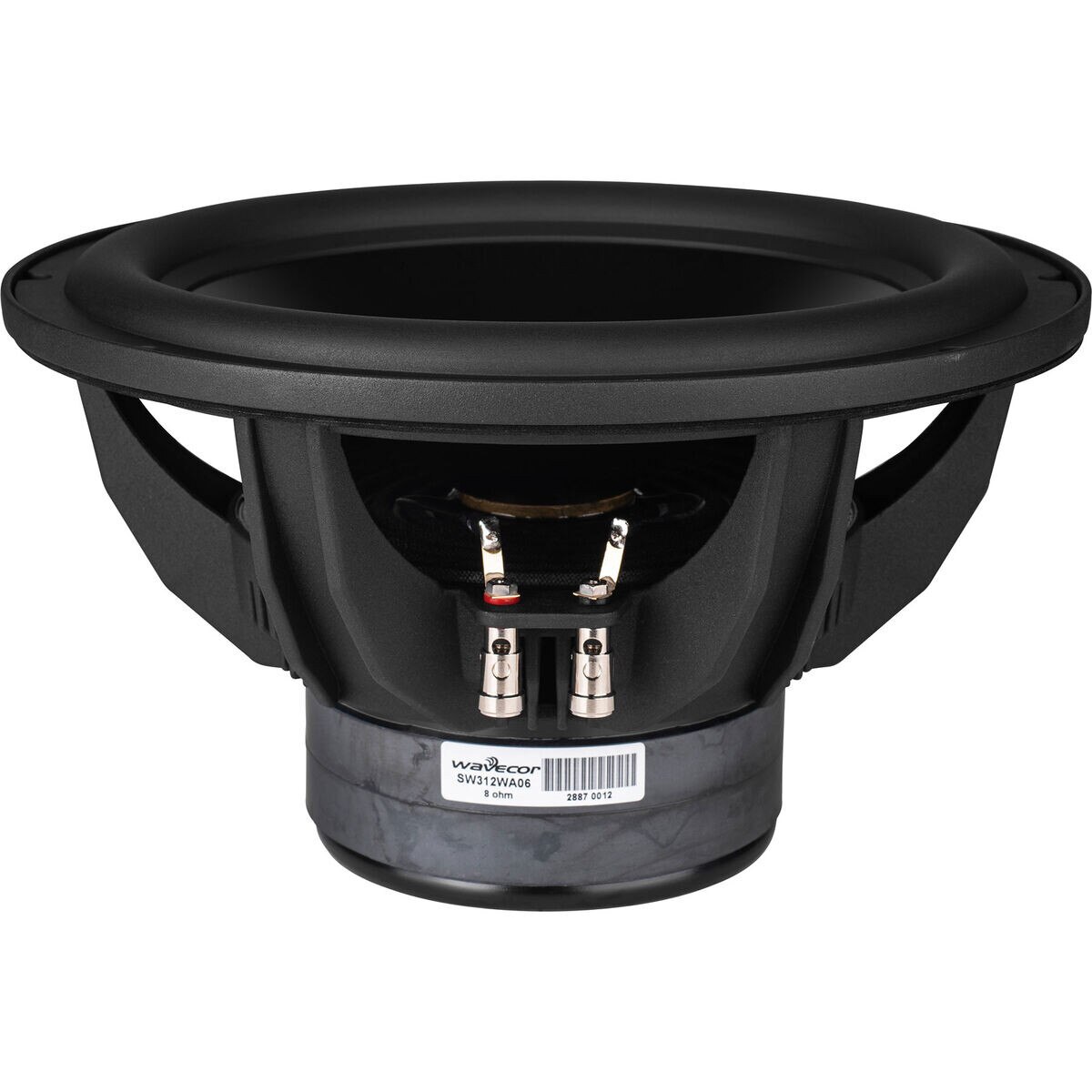

Wavecor SW312WA06 12-1/4" Black Aluminum Cone Subwoofer 8 Ohm

Wavecor SW312WA06 12-1/4" Black Aluminum Cone Subwoofer 8 Ohm. Part Number: 298-1088 by Wavecor.

Wavecor . SW312WA06

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandWavecor
DimensionUnitinch
Extra Product NameWavecor SW312WA06 12-1/4" Black Aluminum Cone Subwoofer 8 Ohm
UPC848864054452
Weight18.75
WeightUnitlbs
depth, length6.42
diameter, height, width12.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSW312WA06
qtyInStock0
SKU, Part Number298-1088
snippetWavecor SW312WA06 12-1/4" Black Aluminum Cone Subwoofer 8 Ohm. Part Number: 298-1088 by Wavecor.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)300 Watts
Impedance8?
Frequency Response29 to 300Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)29Hz
DC Resistance (Re)6.6?
Voice Coil Inductance (Le)2.5mH
Mechanical Q (Qms)11
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.57
Compliance Equivalent Volume (Vas)2.15ft?
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)18.4T?m
Maximum Linear Excursion (Xmax)11.5mm
Surface Area of Cone (Sd)488cm?
Cone Material, Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Overall Outside Diameter12.28"
Baffle Cutout Diameter10.87"
Depth6.42"
# Mounting Holes8
Sealed Volume1.578ft?
Sealed F343.53Hz
Vented Volume4.277ft?
Vented F321.02Hz
