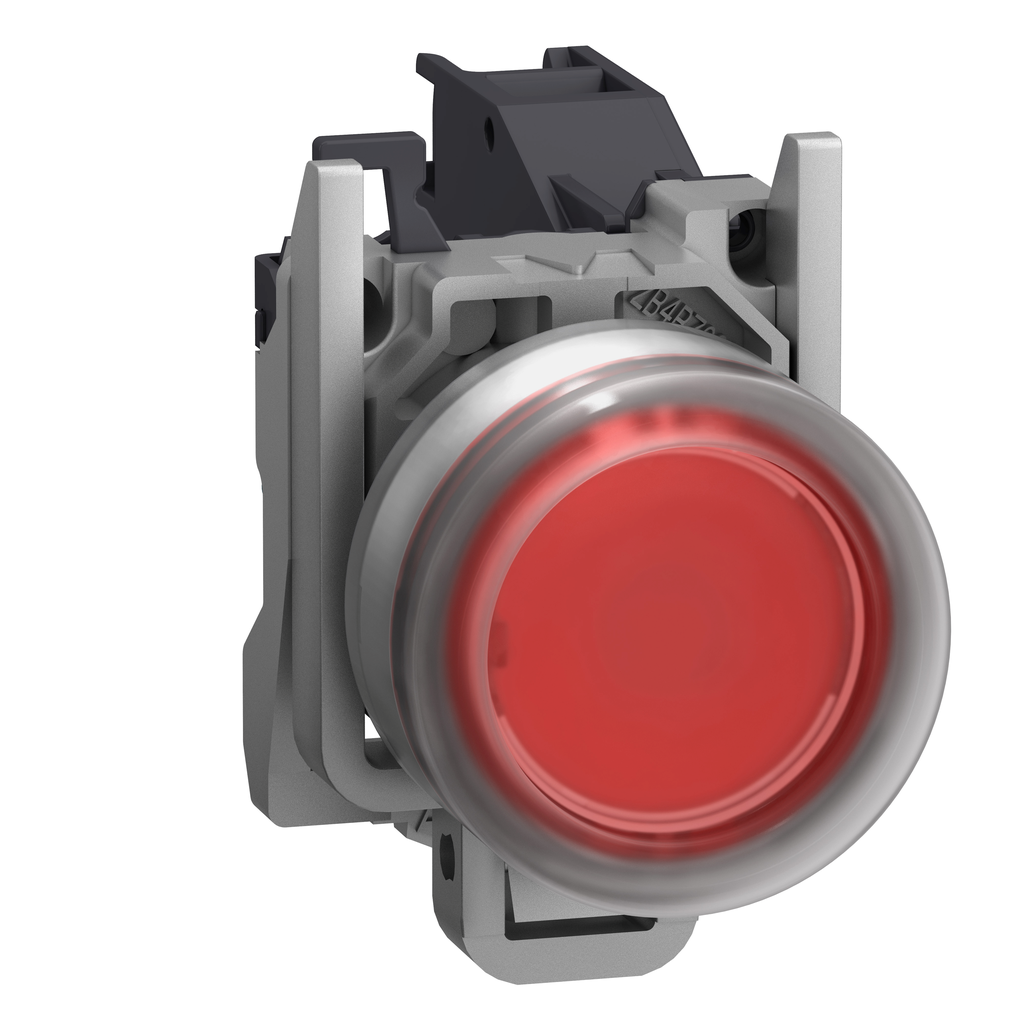

Complete push button, Harmony XB4 - ATEX D, red projecting with boot, metal, 22mm, spring return, 1NC | Mayer Electric

SQUARE D . SQDXB4BP42GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete push button, Harmony XB4 - ATEX D, red projecting with boot, metal, 22mm, spring return, 1NC | Mayer Electric
UPC3606489485887
Weight0.109
WeightUnitkg
Weight_AttribNet Weight
depth, length72.0
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Complete-push-button-Harmony-XB4-ATEX-D-red-projecting-with-boot-metal-22mm-spring-return-1NC-3606489485887
jsonUrlData2a50f795f-5ee7-4220-993d-aeea0058049d
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4BP42GEX
qtyInStock0
tierPrice1112.04
width46.2
width_AttribWidth
Gas Zonezone 1 - 2
Contacts Type And Composition1 NC
Operator Additional Informationbooted (clear silicon)
Range Of ProductHarmony XB4
Bezel Materialchromium plated metal
Dust Zonezone 21 - 22
Operator Profilered projecting
Mounting Diameter22 mm
Type Of Operatorspring return
Product Or Component Typecomplete push-button
Device Short NameXB4
Fixing Collar Materialzamak
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Height30 mm
[Ui] Rated Insulation Voltage415 V
Operating Force2.873 N
Embedding Depth58 mm
Contact Operationslow-break
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Operating Travel1.688 mm engagement point) || 3.271 mm changing state point) || 4.424 mm total travel)
Mechanical Durability5000000 cycles
Positive Openingwith
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingEx db eb IIC Gb || II 2 GD || Ex tb IIIC Db
Width46.2 mm
Depth72 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Net Weight0.109 kg
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-75 ?C
Ambient Air Temperature For Storage-40-70 ?C
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-1:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Protective TreatmentTH
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXB4BP42GEX111 @ $112.04
