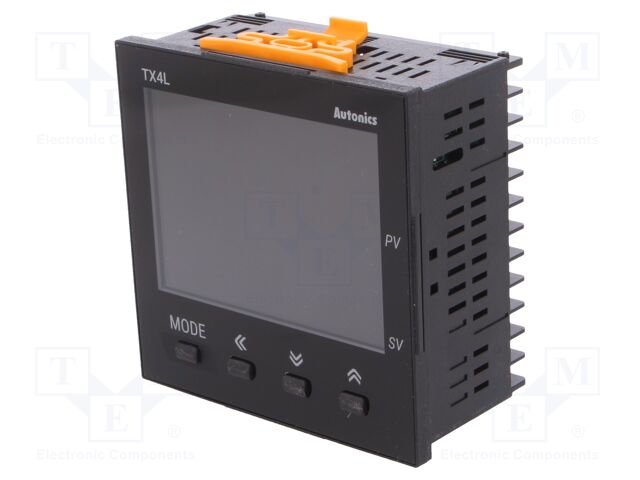

AUTONICS TX4L-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm
AUTONICS TX4L-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alar
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | AUTONICS |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Regulators |
| CategoryL4 | Temperature Regulators |
| DimensionUnit | mm |
| Extra Product Name | AUTONICS TX4L-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 92.0 |
| height | 26.8 |
| height_Attrib | Display height 1 |
| jsonUrlData | f5de7c380fa6ca9b8261730bfeab14f4. |
| jsonUrlData2 | 1d7a0814fc9a5906fbab |
| keywords | AUTONICS, TX4L-A4R, Automation, Regulation and Control, Regulators, Temperature Regulators |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN, SKU | TX4L-A4R |
| qtyInStock, tierMinQty2 | 5 |
| snippet | AUTONICS TX4L-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alar |
| tierMinQty3 | 10 |
| tierPrice1 | 130.54 |
| tierPrice2 | 116.43 |
| tierPrice3 | 102.31 |
| Type of module | regulator |
| Kind of temperature sensor | Cu50, |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| Kind of output 2, Kind of output 3 | alarm |
| Kind of output 4 | analogue |
| Regulation for output 1 | ON-OFF, |
| Mounting | on panel |
| Output 1 electrical parameters, Output 2 electrical parameters, Output 3 electrical parameters | 250V AC / 3A |
| Output 4 electrical parameters | 4...20mA |
| Controlled parameter range | -1999...9999 |
| Operating temperature | -10...50?C |
| The programming method | foil keypad |
| Body dimensions | 96x96x51mm |
| Mounting hole diameter | 92x92mm |
| IP rating | IP50 |
| Kind of display used | LCD |
| Display height 1 | 26.8mm |
| Display 2 height | 17.8mm |
| Manufacturer series | TX4L |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TX4L-A4R | 1 | 5 | 1 | 1 @ $130.54, 5 @ $116.43, 10 @ $102.31 |
