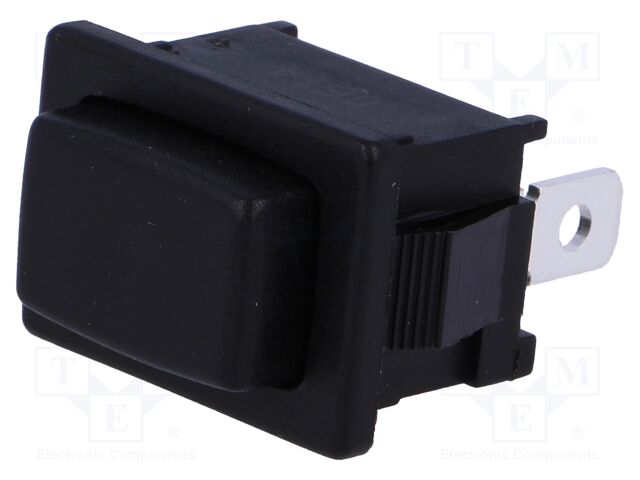

SCI R13-516A-02 | Switch: push-button; Pos: 2; SPST-NO; 6A/250VAC; OFF-(ON); on panel
SCI R13-516A-02 | Switch: push-button; Pos: 2; SPST-NO; 6A/250VAC; OFF-(ON); on pane
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Push Button Switches |
| CategoryL3 | Standard Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-516A-02 | Switch: push-button; Pos: 2; SPST-NO; 6A/250VAC; OFF-(ON); on panel |
| atoms, moq, multiple, tierMinQty1, Stable positions number | 1 |
| diameter, length, width | 19.4 |
| jsonUrlData | b6b1100a7f86cdc755a854311a992171. |
| jsonUrlData2 | 4ebcae3f7a0cf145b1cf |
| keywords | SCI, R13-516A-02, PS516 |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-516A-02 |
| qtyInStock | 664 |
| SKU | PS516 |
| snippet | SCI R13-516A-02 | Switch: push-button; Pos: 2; SPST-NO; 6A/250VAC; OFF-(ON); on pane |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 400 |
| tierPrice1 | 1.41 |
| tierPrice2 | 1.27 |
| tierPrice3 | 1.14 |
| tierPrice4 | 1.02 |
| tierPrice5 | 0.76 |
| Type of switch | push-button |
| Number of positions | 2 |
| Contacts configuration | SPST-NO |
| AC contacts rating @R | 6A / 250V AC |
| Switching method | OFF-(ON) |
| Illumination | none |
| Leads | connectors 4,8x0,8mm |
| Operating temperature | -25...70?C |
| Electrical life | 6000 cycles |
| Max contact resistance: | 50m? |
| Button shape | prominent, |
| Mounting hole diameter | 19.4x13mm |
| Body material | polyamide |
| Actuator colour | black |
| Panel thickness | max. 2mm |
| Mounting | on panel |
| Flammability rating | UL94V-2 |
| Manufacturer series | R13-516 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PS516 | 1 | 664 | 1 | 1 @ $1.41, 5 @ $1.27, 20 @ $1.14, 100 @ $1.02, 400 @ $0.76 |
