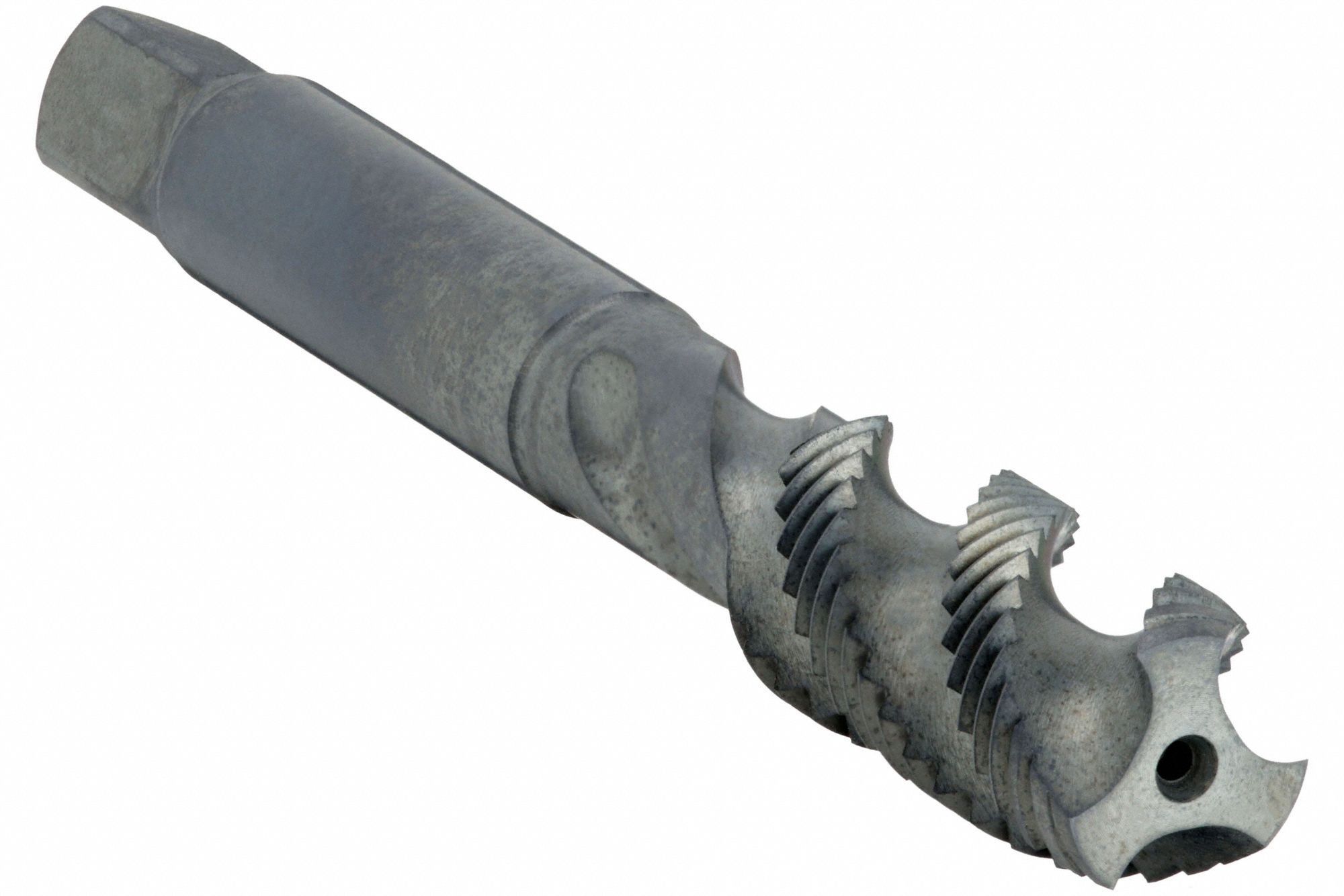

SPIRAL FLUTE TAP, M12X1.75 THREAD SIZE, 23.9MM THREAD L, 85.9MM OVERALL L, 3 FLUTES

Find your WIDIA-GTD SPIRAL FLUTE TAP, M12X1.75 THREAD SIZE, 23.9MM THREAD L, 85.9MM OVERALL L, 3 FLUTES at Grainger Canada, formerly Acklands-Grainger. We have been Canada's premiere industrial supplier for over 125 years with superior service and quality.

WIDIA-GTD . VTSFT-TC5531 WP49EG

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWIDIA-GTD
DimensionUnitmm
Extra Product NameSPIRAL FLUTE TAP, M12X1.75 THREAD SIZE, 23.9MM THREAD L, 85.9MM OVERALL L, 3 FLUTES
UNSPSC23153305
Weight0.088
WeightUnitlbs
diameter, height, width9.32
height_Attrib, width_AttribShank Dia.
length85.9
length_AttribOverall Length
moq, multiple1
MPNVTSFT-TC5531 WP49EG
originalCurrency{'currency': 'CAD'}
qtyInStock0
SKUWIDVTSFTTC5531WP49
ItemSpiral Flute Tap
Thread Standard, Measurement SystemMetric
Tap FinishBlack Oxide
Overall Length85.90 mm
Thread LimitD6
Thread Direction, Spiral DirectionRight Hand
Tap Shank Standard, StandardsANSI
55% Thread Drill Size27/64 in
Coolant FedNon-Coolant Through
FeaturesForm C Semi-Bottoming Chamfer, Tension/Compression Holders
Material Grade - MachiningWP49EG
Primary Material Application ISO CodeK, M, P
Shank Type - MachiningStraight
Square Size6.91 mm
Thread Limit / Class of FitD6 / 6H
SeriesVT-SFT
Tap StyleSpiral Flute
Thread SizeM12-1.75
Tap MaterialHigh Speed Steel-E
Thread Length23.90 mm
75% Thread Drill Size10.30 mm
Class of Fit6H
Number of Flutes3
Primary Material ApplicationCast Iron, Stainless Steel, Steel
65% Thread Drill Size10.50 mm
Extended NeckYes
Helix Angle45 Degrees
Shank Length41.70 mm
Tap ChamferSemi-Bottoming
Thread Pitch1.75mm
Shank Dia9.32 mm
Tap GroupingTap
Tap Thread SizeM12x1.75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWIDVTSFTTC5531WP4911
