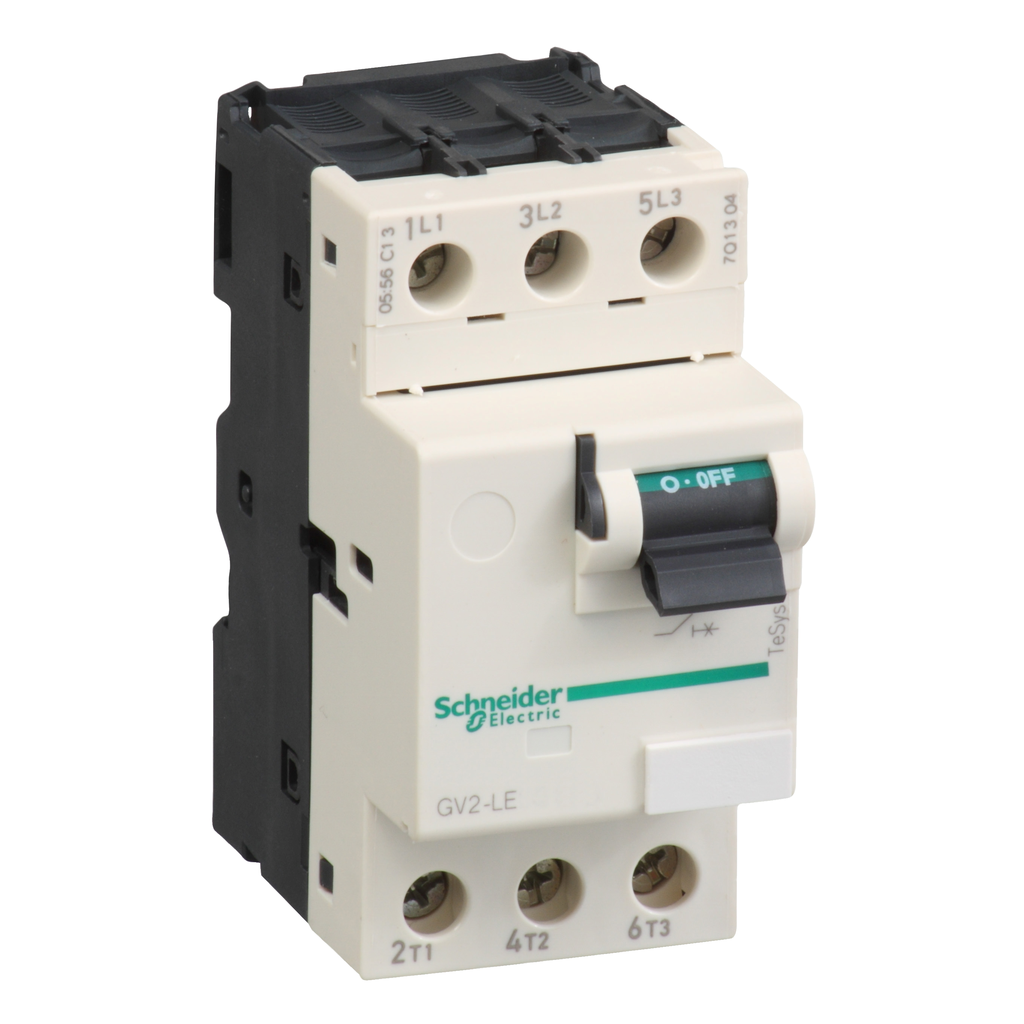

TeSys GV2 Manual Starter and Protector, magnetic circuit protector, toggle switch, 32 A, screw clamp terminals | Mayer Electric

Mayer Electric Supply . GV2LE32

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameTeSys GV2 Manual Starter and Protector, magnetic circuit protector, toggle switch, 32 A, screw clamp terminals | Mayer Electric
UPC785901474012
Weight0.33
WeightUnitkg
Weight_AttribNet Weight
depth, length78.5
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-TeSys-GV2-Manual-Starter-and-Protector-magnetic-circuit-protector-toggle-switch-32-A-screw-clamp-terminals-785901474012
jsonUrlData2997d5db7-8103-44b1-ae08-abde00f75c6f
length_AttribDepth
moq, multiple, tierMinQty11
MPNGV2LE32
qtyInStock0
SKUSQDGV2LE32
tierPrice1576.38
width45.0
width_AttribWidth
Range Of Product, Product NameTeSys GV2
Product Or Component Typemotor circuit breaker
RangeTeSys Deca
Device Applicationmotor protection
Device Short NameGV2LE
Trip Unit Technologymagnetic
Warranty18 months
Mechanical Robustnessshocks 30 Gn IEC 60068-2-27 || vibrations 5 Gn, 5...150 Hz IEC 60068-2-6
Line Rated Current32 A
[Ue] Rated Operational Voltage, [Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Height89 mm
Rated Dutycontinuous IEC 60947-4-1
Network TypeAC
Magnetic Tripping Current416-416 A
[Ith] Conventional Free Air Thermal Current32 A IEC 60947-4-1
Motor Power Kw15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz
Maximum Operating Rate40 cyc/h
Operating Positionany position
Utilisation Categorycategory A IEC 60947-2 || AC-3 IEC 60947-4-1
Net Weight0.33 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2
Control Typetoggle
Power Dissipation Per Pole1.8 W
Electrical Durability100000 cycles AC-3 415 V
Suitability For Isolationyes IEC 60947-1 ? 7-1-6
Tightening Torque1.7 N.m screw clamp terminals
Mechanical Durability100000 cycles
Poles Description3P
Width45 mm
Depth78.5 mm
Network Frequency50/60 Hz IEC 60947-2
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP121004EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI121004EN
Eu Rohs DirectiveCompliant
Product CertificationsCCC || EAC || BV || RINA || UL || UKCA
Ik Degree Of ProtectionIK04
Ambient Air Temperature For Operation-20-60 ?C
StandardsEN/IEC 60947-4-1 || CSA C22.2 No 60947-4-1 || UL 60947-4-1
Climatic WithstandIACS E10
Ambient Air Temperature For Storage-40-80 ?C
Ip Degree Of ProtectionIP20 IEC 60529
Operating Altitude6561.68 ft (2000 m)
Fire Resistance960 ?C IEC 60695-2-11

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDGV2LE32111 @ $576.38
