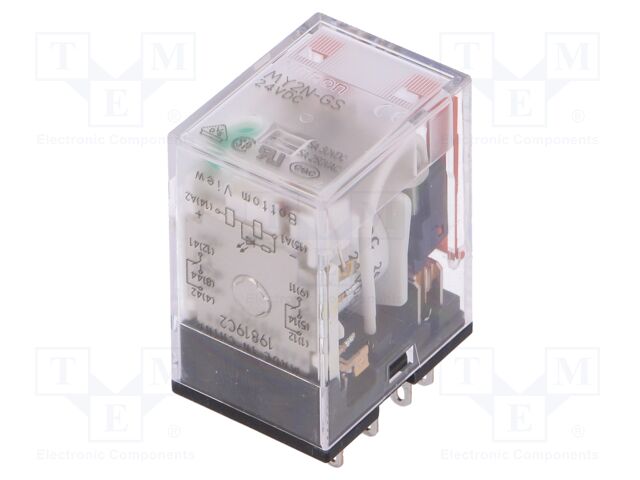

OMRON MY2N-GS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 7A
OMRON MY2N-GS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 7
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON |
|---|---|
| Extra Product Name | OMRON MY2N-GS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 7A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 0c4b46aca17df6763b8c5851a829faa5.5 |
| jsonUrlData2 | 1d13bff27e1864bae6f7 |
| MPN | MY2N-GS 24VDC |
| qtyInStock | 82 |
| SKU | MY2N-GS-24DC |
| snippet | OMRON MY2N-GS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 7 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierPrice1 | 6.54 |
| tierPrice2 | 6.19 |
| tierPrice3 | 5.68 |
| tierPrice4 | 4.68 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 7A |
| AC contacts rating @R | 7A / 220V AC |
| DC contacts rating @R | 7A / 24V DC |
| Switched voltage | max. 220V DC, |
| Relay variant | industrial |
| Mounting | socket |
| Relay series | MY-GS |
| Operating temperature | -55...70?C |
| Body dimensions | 28x21.5x36mm |
| Coil resistance | 662? |
| Operate time, Release time | 20ms |
| Coil current | 36.3mA |
| Contact resistance | 100m? |
| Coil power consumption | 0.9W |
| Leads | 2,5x0,5mm connectors |
| Switching capacity | 210W, |
| Related items | PY08-02, |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MY2N-GS-24DC | 1 | 82 | 1 | 1 @ $6.54, 5 @ $6.19, 25 @ $5.68, 100 @ $4.68 | |
| RS Delivers | 186-4166 | 1 | 145 | 1 | 1 @ $6.60, 5 @ $6.29, 10 @ $6.14 |
| MY2N-GS 24VDC | 1 | 1 | 1 @ $7.75 | ||
| RS Online | 1864166 | 1 | 1 |
