Hamilton

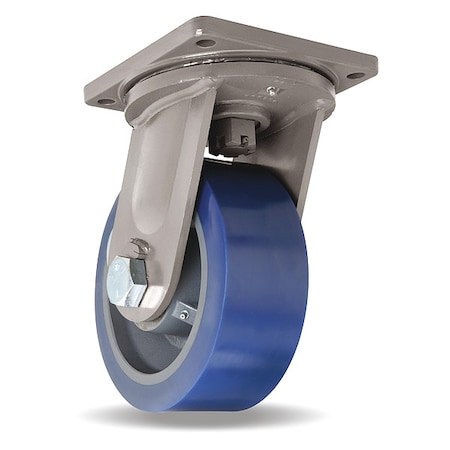

Hamilton . S-MD-104SYT-4SL-HCB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA29
UnitOfMeasureEA
Weight95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height10
jsonUrlData924526ffbdad25e5923b
length, width16
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-MD-104SYT-4SL-HCB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9071579
tierPrice11096.52
urlhttps://www.zoro.com/hamilton-plate-caster-5000-lb-load-rating-s-md-104syt-4sl-hcb/i/G9071579/
Caster Sub-TypeSwivel
Load Rating5000 lb
Wheel Dia10 in
Wheel Width, Overall Wheel Width4 in
Mounting Bolt Dia, Mounting Plate Thickness5/8 in
Caster Brake TypeFace Contact Brake
Mounting Plate Size8 1/2 in x 8 1/2 in
Wheel/Tread MaterialPolyurethane
Tire StyleTubeless
Operating Temperature Range-50 Degrees to 200 Degrees F
Wheel Core MaterialForged Steel
TreadFlat
Frame Color, Core ColorSilver
Mounting Plate Bolt Hole PatternD
Swivel ConstructionKingpin
Swivel Radius8 3/8 in
Swivel Lead3 in
With Toe Plate, NSF Listed, Leveling Caster, Includes Thread Guards, Non-Marking, Includes Mounting FastenersNo
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing7 in x 7 in
For Axle Dia1 1/4 in
Number of Mounting Holes4
Load Rating Range3000 to 5999 lb
Wheel/Tread Hardness RatingFirm
Brake LocationFace
Frame FinishPowder Coated
Tread ShapeStandard
Swivel Raceway TypeRoller
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
ESD Conductive, Includes Spanner BushingYes
Wheel TypeFlat-Free
StandardsICWM
Frame ConstructionForged
Swivel Lock Type4-Position Directional Lock
Swivel Bearing Seal TypeOpen
Caster Mounting TypePlate
SeriesMaxi-Duty
Wheel/Tread ColorBlue
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Wheel Bearing Material, Caster Frame MaterialSteel
ItemStandard Plate Caster
Wheel Bearing TypeTapered Roller
Wheel Core TypeSolid
Wheel/Tread Hardness95 Shore A
Mounting Height13 in
For Surface TypeConcrete
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9071579111 @ $1096.52
Grainger55HA2911
