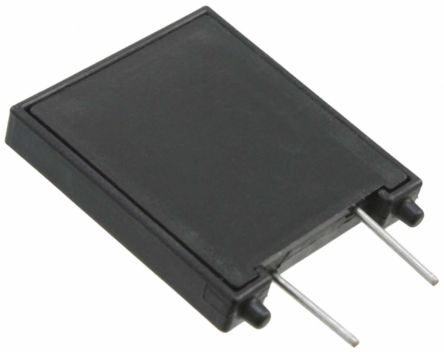

LVB125 Littelfuse Inc. | Circuit Protection | DigiKey
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Littelfuse Inc. |
|---|---|
| Extra Product Name | LVB125 Littelfuse Inc. | Circuit Protection | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | LVB125 |
| qtyInStock | 0 |
| SKU | LVB125-ND |
| Part Status, Ratings, Thickness (Max) | - |
| Type | Polymeric |
| Voltage - Max | 240V |
| Operating Temperature | -40?C ~ 85?C |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.984" L x 0.175" W (25.00mm x 4.40mm) |
| Height - Seated (Max) | 1.071" (27.20mm) |
| Lead Spacing | 0.400" (10.15mm) |
| Approval Agency | UL |
| Current - Max | 12.5 A |
| Current - Hold (Ih) (Max) | 1.25 A |
| Current - Trip (It) | 2.5 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 152 mOhms |
| Resistance - Post Trip (R1) (Max) | 482 mOhms |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | LVB125-ND | 1 | 1 | ||
| RS Online | 8697356 | 1 | 1 | ||
| 164-8198 | 250 | 250 | 250 @ $2.31 | ||
 iodParts | LVB125 | 1 | 1 | ||
| Newark | 34AC5397 | 250 | 250 | 100 @ $1.98, 500 @ $1.81, 1000 @ $1.59, 2500 @ $1.48 | |
| Digi-Key | 3511329 | 5000 | 70 | 5000 | 1 @ $3.88, 5 @ $3.75, 10 @ $3.62, 50 @ $2.84, 100 @ $2.33, 250 @ $2.26, 500 @ $1.94, 1000 @ $1.81, 5000 @ $1.40 |
| RS Delivers | 869-7356 | 1 | 1 | ||
| RS Delivers | 869-7356P | 1 | 1 | 1 @ $2.90 | |
| RS Online | 1648198 | 1 | 1 |
