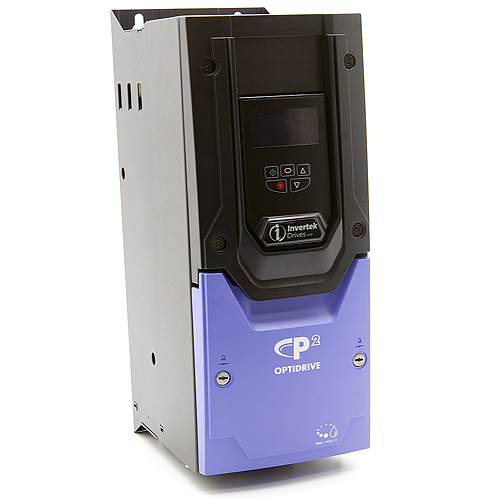

Invertek ODP-2-54050-3HF4N-MN 37kW 50Hp 72A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

The ODP-2-54050-3HF4N-MN is produced by Invertek and is described as a Invertek ODP-2-54050-3HF4N-MN 37kW 50Hp 72A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

Invertek . ODP-2-54050-3HF4N-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-54050-3HF4N-MN 37kW 50Hp 72A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD
Voltage, Input voltage380/480V
Weight25
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length10.6
height21.3
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-54050-3HF4N-MN
qtyInStock0
SKU6092963
tierPrice13157.12
width13.779527559055119
width_AttribPackaged dimensions width
Frame, Drive dimensions size5
Height21.3 in
Depth10.6 in
Rated power37 kW/50 HP
Phase, Input phases3
Width (in)9.3
Supply fuse or MCB (type B)100 A
Packaged dimensions depth375 mm (14.76 in)
Supply current continuous76.4 A
Drive dimensions weight23 kg (50.71 lbs)
Max motor cable size, Max supply cable size35 mm? (0.05 in?)
Brake transistorInternal
Supply voltage380-480 V
Output current72 A
Drive dimensions fixings4 x M8
Drive dimensions depth270 mm (10.63 in)
Packaged dimensions weight25 kg (55.12 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height540 mm (21.26 in)
EMC filterInternal EMC
DisplayTFT display
Packaged dimensions height595 mm (23.43 in)
Motor output rating37 kW (50 HP)
Drive dimensions width235 mm (9.25 in)
PCB coatingStandard
EnclosureIP55
Packaged dimensions width350 mm (13.78 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092963111 @ $3157.12
driveswarehouse.comODP-2-54050-3HF4N-MN1-211 @ $3157.12
