Pumptrol, water pump switch 9013FY, adjustable diff., 40 60 PSI | Crescent Electric Supply Company

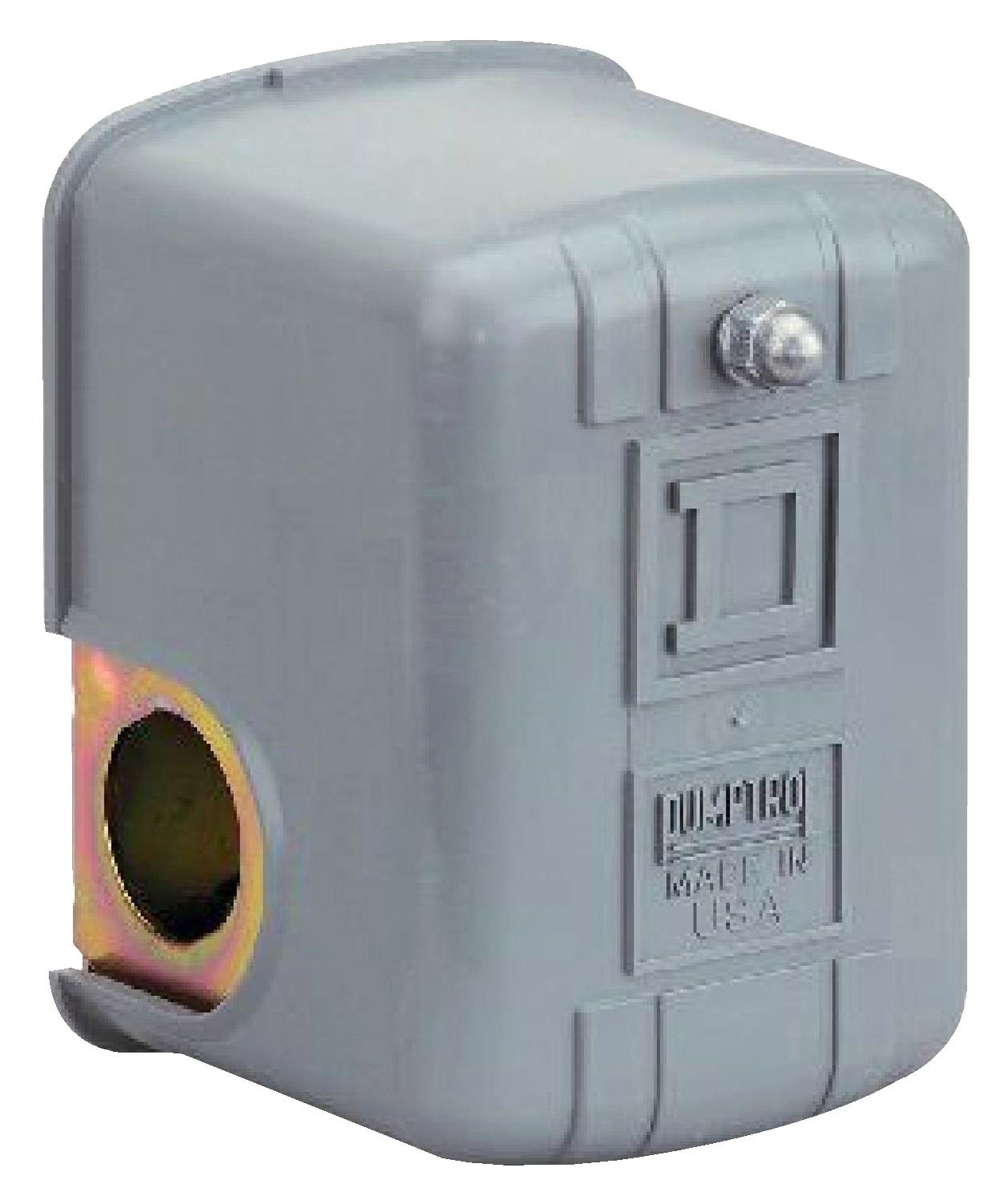

Telemecanique 9013FYG2J24 Pressure Switch Square D Pressure Switch, Type F Adjustable Electro-Mechanical, Series: 9013FY, 5 to 60 psig Pressure, 2NC/DPST-DB Contact Configuration, 60 cpm Operating Cycles, -33 to 257 deg F, 1/4 in NPSF Screw Clamp Connection, Zinc Plated Steel Connection, Nitrile Diaphragm, Polypropylene Housing Material, IP20/NEMA 1 Enclosure Additional Description: TELE-9013FYG2J24 PRESSURE SWITCH 575VAC 1HP F +OPTIONS Catalog Description: Square D Pumptrol, water pump switch 9013FY, adjustable diff., 40 60 PSI

Telemecanique . 9013FYG2J24

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTelemecanique
CategoryL1Industrial Automation and Control
CategoryL2Automation Switches
CategoryL3, CategoryL4Pressure Switch
Extra Product NamePumptrol, water pump switch 9013FY, adjustable diff., 40 60 PSI | Crescent Electric Supply Company
UPC785901319665
countryOfOrigin, Country of OriginMexico
moq, multiple, tierMinQty11
MPN, Catalog Number9013FYG2J24
qtyInStock0
SKU25581
tierPrice146.38
Sub Brand9013FY
Warranty DescriptionContractual Warranty:18 months
Made in USANo
GTIN00785901319665
ApplicationControl electrically driven water pumps;Power circuit;Regulation between 2 thresholds
Contact Configuration2 NC, snap action, DPST-DB, Form YY
EnclosureNEMA 1 UL 50
Operating Cycles10 CYC/MN
Process Connection0.25 INCH NPSF INTERNAL UL 508
Special Features-
StandardCE-NSF ANSI 61 ANNEX G-UL 508,IP20 IEC 60529,UL LISTED FILE E12158-CSA FILE LR25490
Item TypeElectromechanical pressure switch;Adjustable differential
Environmental ConditionsGENERAL PURPOSE (INDOOR)
Operating Temperature-33-257 A Degrees F
System Pressure80 PSI 5-60 PSI)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
crescentelectric.com25581111 @ $46.38
us.rs-online.com706622841111 @ $63.66, 10 @ $59.70
standardelectricsupply.com2227329111 @ $31.20
Newark17B20121311 @ $11.36
