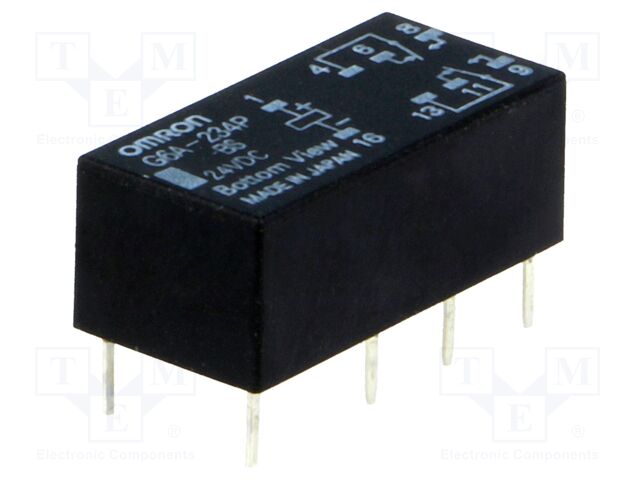

OMRON OCB G6A-234P-BS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PCB
OMRON OCB G6A-234P-BS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G6A-234P-BS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | 6069110141b45317e4753c96033fab01. |
| jsonUrlData2 | dd3324c109933b0d6378 |
| keywords | OMRON OCB, G6A-234P-BS 24VDC, G6A-234P-BS-24DC |
| MPN | G6A-234P-BS 24VDC |
| qtyInStock | 0 |
| SKU | G6A-234P-BS-24DC |
| snippet | OMRON OCB G6A-234P-BS 24VDC | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 1A; PC |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 1A |
| AC contacts rating @R | 0.3A / 125V AC |
| DC contacts rating @R | 1A / 30V DC |
| Switched voltage | max. 220V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 2057? |
| Operate time | 5ms |
| Body dimensions | 20.2x10.1x8.4mm |
| Release time | 3ms |
| Operating temperature | -40...70?C |
| Relay series | G6A-BS |
| Contact resistance | 50m? |
| Terminal pitch | 5mm |
| Coil current | 11.7mA |
| Conform to the norm | BABT |
