Where can I buy ODE-3-120043-1F1A?

ODE-3-120043-1F1A is available from MRO Supply, driveswarehouse.com. See pricing comparison above.

What is the price of ODE-3-120043-1F1A?

Pricing ranges from $374.40 to $374.40 depending on quantity and distributor.

Is ODE-3-120043-1F1A in stock?

Yes, ODE-3-120043-1F1A is currently in stock at multiple distributors with immediate availability.

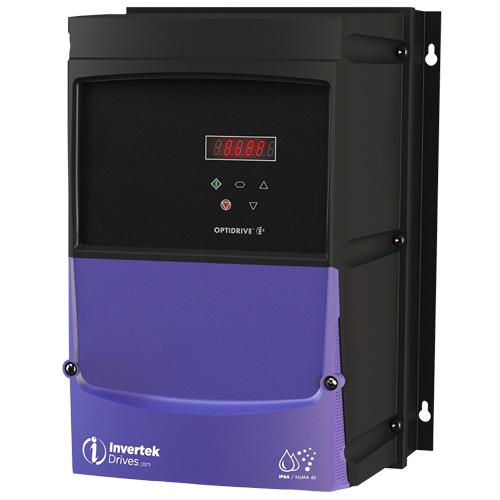

Invertek ODE-3-120043-1F1A 0.75kW 1Hp 4.3A Output Current 200~240V 1Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Name: Invertek ODE-3-120043-1F1A 0.75kW 1Hp 4.3A Output Current 200~240V 1Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Brand: Invertek
Price: 374.40 USD
Availability: OutOfStock

The ODE-3-120043-1F1A is produced by Invertek and is described as a Invertek ODE-3-120043-1F1A 0.75kW 1Hp 4.3A Output Current 200~240V 1Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Invertek . ODE-3-120043-1F1A

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Invertek
CategoryL1	Automation
CategoryL2	Speed Controllers & VFDs
CategoryL3	AC Vector Drives
CategoryL4	Three Phase
DimensionUnit	inch
Extra Product Name	Invertek ODE-3-120043-1F1A 0.75kW 1Hp 4.3A Output Current 200~240V 1Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Voltage, Input voltage	200 / 240V
Weight	2.9
WeightUnit	lbs
Weight_Attrib	Packaged dimensions weight
depth, length	7.0
height	9.1
height_Attrib	Height
length_Attrib	Depth
moq, multiple, tierMinQty1, Frame, Drive dimensions size, Input phases	1
MPN	ODE-3-120043-1F1A
qtyInStock	0
SKU	6092699
tierPrice1	374.40
width	8.26771653543307
width_Attrib	Packaged dimensions width
Height	9.1 in
Depth	7 in
Rated power	0.75 kW/1 HP
Phase	3
Width (in)	6.3
Supply fuse or MCB (type B)	10 A
Packaged dimensions depth	345 mm (13.58 in)
Supply current continuous	7.5 A
Drive dimensions weight	2.3 kg (5.07 lbs)
Max motor cable size, Max supply cable size	8 mm? (0.01 in?)
Brake transistor	No internal brake transistor
Supply voltage	200-240 V
Output current	4.3 A
Drive dimensions fixings	4 x M4
Drive dimensions depth	152 mm (5.98 in)
Packaged dimensions weight	2.9 kg (6.39 lbs)
Max motor cable length	100 m (328 ft)
Output voltage	0 - supply voltage
Drive dimensions height	232 mm (9.13 in)
EMC filter	Internal EMC filter
Display	LED
Packaged dimensions height	205 mm (8.07 in)
Motor output rating	0.75 kW (1 HP)
Drive dimensions width	161 mm (6.34 in)
Enclosure	IP66 outdoor non-switched
Packaged dimensions width	210 mm (8.27 in)

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
MRO Supply	6092699	1		1	1 @ $374.40
driveswarehouse.com	ODE-3-120043-1F1A	1	-2	1	1 @ $374.40
