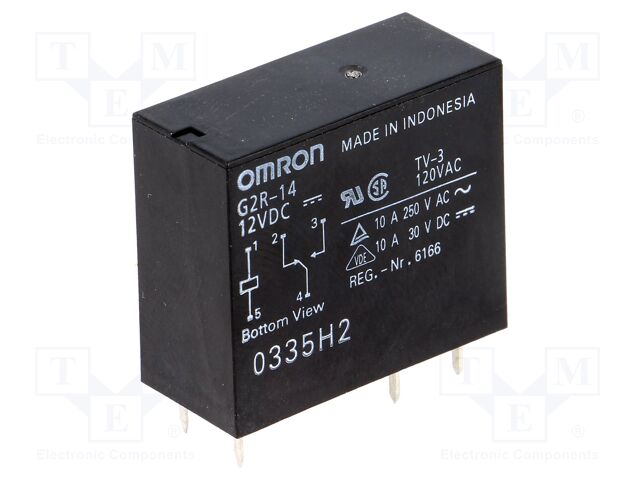

OMRON OCB G2R-14 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A

The Omron G2R-14 12VDC Relay is a 12-volt direct current relay with a TV-3120VAC rating. It can handle 10 amps at 250 volts AC and 10 amps at 30 volts DC. The relay also features a 15X2W4 configuration.

OMRON OCB G2R-14 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10

OMRON OCB . G2R-14 12VDC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOMRON OCB
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameOMRON OCB G2R-14 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A
atoms, moq, multiple, tierMinQty11
jsonUrlData0930a69dccdfe47982d01e659159ce3f.
jsonUrlData2c4dc3b93a4f075eb2f95
keywordsOMRON OCB, G2R-14 12VDC, G2R-14-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
MPNG2R-14 12VDC
qtyInStock0
SKUG2R-14-12DC
snippetOMRON OCB G2R-14 12VDC | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10
tierMinQty25
tierMinQty325
tierMinQty4100
tierMinQty5500
tierPrice12.94
tierPrice22.68
tierPrice32.05
tierPrice41.79
tierPrice51.71
Type of relayelectromagnetic
Contacts configurationSPDT
Rated coil voltage12V DC
Contact current max10A
AC contacts rating @R10A / 250V AC
DC contacts rating @R10A / 30V DC
Switched voltagemax. 125V DC,
Relay variantminiature
MountingPCB
Coil voltage min9.6V DC
Operate time15ms
Body dimensions29x13x25.5mm
Release time5ms
Mechanical durability20000000 cycles
Operating temperature-40...70?C
Relay seriesG2R
Contact resistance30m?
Terminal pitch3.5mm
Coil current43.6mA
Enclosure descriptionhermetic seal

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEG2R-14-12DC111 @ $2.94, 5 @ $2.68, 25 @ $2.05, 100 @ $1.79, 500 @ $1.71
