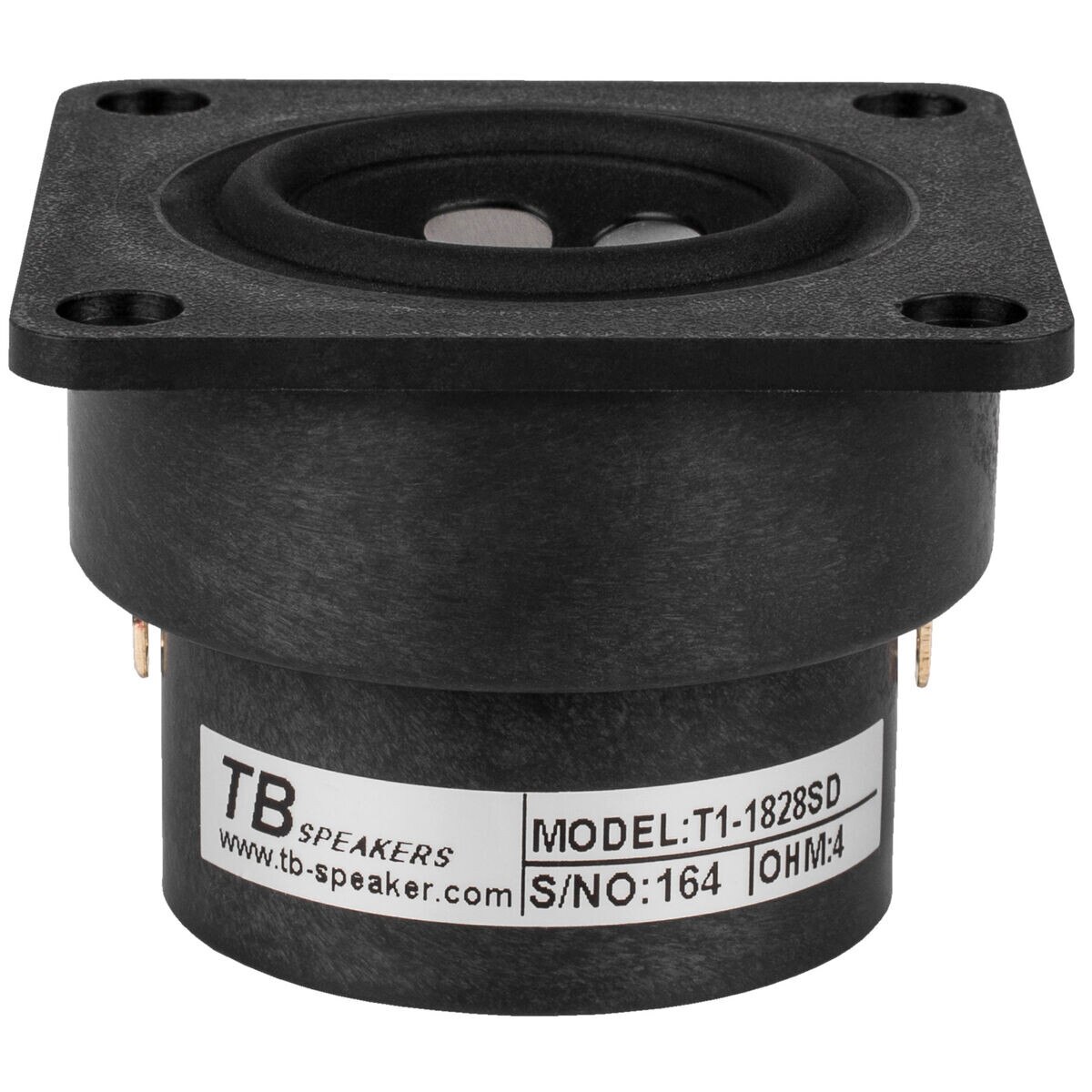

Tang Band T1-1828SD Speaker Module 2-5/16" x 2-5/16"
Tang Band T1-1828SD Speaker Module 2-5/16" x 2-5/16". Part Number: 264-935 by Tang Band.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Tang Band |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Tang Band T1-1828SD Speaker Module 2-5/16" x 2-5/16" |
| UPC | 848864023694 |
| Weight | 0.3 |
| WeightUnit | lbs |
| depth, length | 1.72 |
| diameter, height, width | 2.32 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple | 1 |
| MPN, Model | T1-1828SD |
| qtyInStock | 0 |
| SKU, Part Number | 264-935 |
| snippet | Tang Band T1-1828SD Speaker Module 2-5/16" x 2-5/16". Part Number: 264-935 by Tang Band. |
| Unit of Measure | Each |
| Nominal Diameter | 2" |
| Bolt Circle Diameter | 2.6 |
| Power Handling (RMS) | 4 Watts |
| Power Handling (MAX) | 8 Watts |
| Impedance | 4? |
| Frequency Response | 75 to 20,000Hz |
| Sensitivity | 80dB 2.83V/1m |
| Voice Coil Diameter | 1.1" |
| Resonant Frequency (Fs) | 75Hz |
| DC Resistance (Re) | 3.5? |
| Voice Coil Inductance (Le) | 0.195mH |
| Cone Material | Aluminum |
| Surround Material | Rubber |
| Basket / Frame Material | Polymer |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 2.32" x 2.32" |
| Baffle Cutout Diameter | 2.2" |
| Depth | 1.72" |
| # Mounting Holes | 4 |
