BZT52C5V6 Good-Ark Semiconductor | Discrete Semiconductor Products | DigiKey

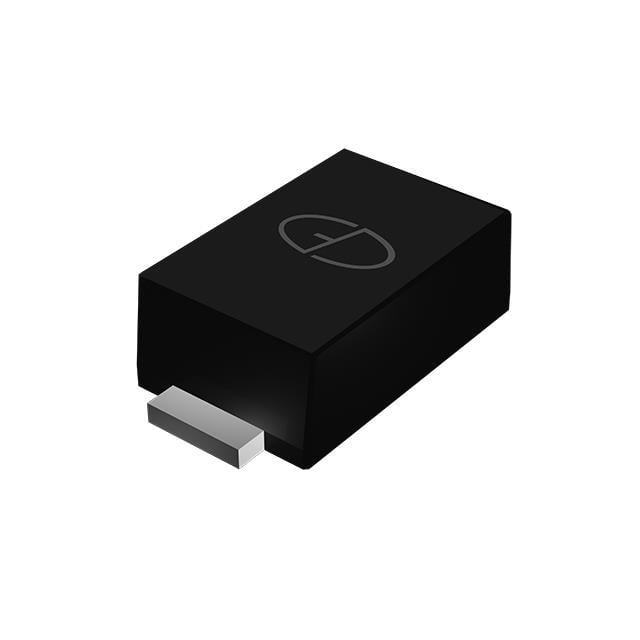

Zener Diode 5.6 V 500 mW ?7.14% Surface Mount SOD-123
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Good-Ark Semiconductor |
|---|---|
| CategoryL1, Category | Discrete Semiconductor Products |
| CategoryL2 | Diodes |
| CategoryL3 | Zener |
| Extra Product Name | BZT52C5V6 Good-Ark Semiconductor | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extendedLead | 117 |
| extendedQty | -2 |
| extraShipping, qtyInStock | 0 |
| MPN, Manufacturer Product Number | BZT52C5V6 |
| packaging | Cut Tape (CT) & Digi-Reel? |
| SKU | 18648691 |
| snippet, Detailed Description | Zener Diode 5.6 V 500 mW ?7.14% Surface Mount SOD-123 |
| tierMinQty10 | 90,000 |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1,000 |
| tierMinQty6 | 2,000 |
| tierMinQty7 | 5,000 |
| tierMinQty8 | 10,000 |
| tierMinQty9 | 45,000 |
| tierPrice1 | 0.14000 |
| tierPrice10 | 0.01526 |
| tierPrice2 | 0.12500 |
| tierPrice3 | 0.06820 |
| tierPrice4 | 0.04198 |
| tierPrice5 | 0.02862 |
| tierPrice6 | 0.02433 |
| tierPrice7 | 0.02194 |
| tierPrice8 | 0.01908 |
| tierPrice9 | 0.01717 |
| Digi-Key Part Number | 4786-BZT52C5V6TR-ND - Tape & Reel (TR) |
| Description | DIODE, ZENER, 0.5W, 5.6V, SOD-12 |
| Manufacturer Standard Lead Time | 16 Weeks |
| Series | BZT52Cxxx |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ?7.14% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 40 Ohms |
| Current - Reverse Leakage @ Vr | 1 ?A @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case, Supplier Device Package | SOD-123 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 18648691 | 1 | 1 | 1 @ $0.14, 10 @ $0.12, 100 @ $0.07, 500 @ $0.04, 1000 @ $0.03, 2000 @ $0.02, 5000 @ $0.02, 10000 @ $0.02, 45000 @ $0.02, 90000 @ $0.02 |
