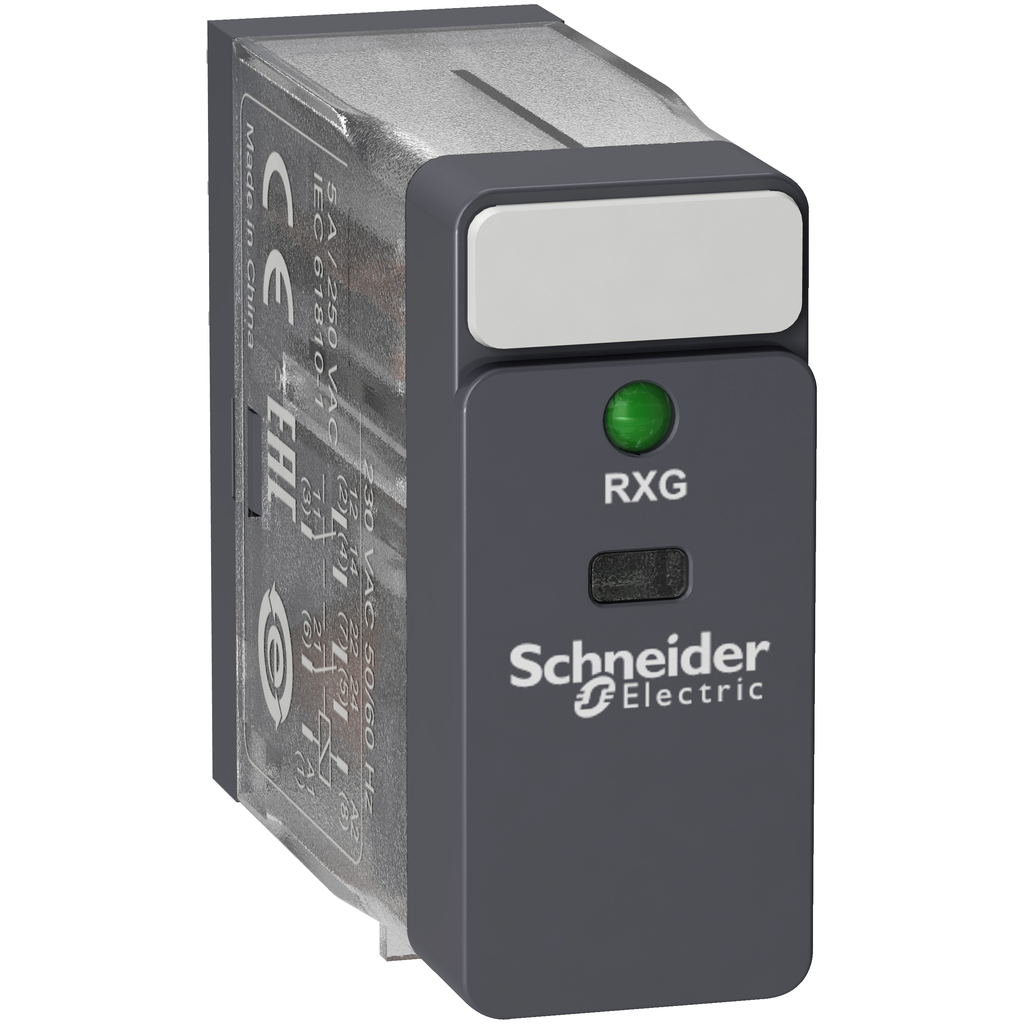

Harmony, Interface plug-in relay, 5 A, 2 CO, with LED, 230 V AC | Mayer Electric

Mayer Electric Supply . RXG23P7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameHarmony, Interface plug-in relay, 5 A, 2 CO, with LED, 230 V AC | Mayer Electric
UPC785901949503
Weight0.02
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Interface-plug-in-relay-5-A-2-CO-LED-230-V-AC-785901949503
jsonUrlData2e896b628-0d32-4a4c-845f-abd200630975
moq, multiple, tierMinQty11
MPNRXG23P7
qtyInStock0
SKUSQDRXG23P7
tierPrice114.86
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typeplug-in relay
Series Nameinterface relay
Contacts Type And Composition2 C/O
Device Short NameRXG
Utilisation Coefficient20 %
Maximum Switching Capacity1250 VA
Safety Reliability DataB10d = 100000
[Uc] Control Circuit Voltage230 V AC 50/60 Hz
Average Consumption0.82 VA 60 Hz
Insulation Resistance1000 MOhm at 500 V DC
Torque Value0.8 N.m
Test Levelslevel A
Contacts Materialsilver alloy (AgSnO2In2O3)
Reset Time, Operating Time20 ms
Dielectric Strength1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
Status Ledwith
Net Weight0.02 kg
Colour Of Coverstandard
Maximum Switching Voltage250 V AC || 30 V DC
Device Presentationcomplete product
Electrical Insulation Classclass F
[Ie] Rated Operational Current5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Electrical Durability100000 cycles NO resistive at 55 ?C || 100000 cycles NC resistive at 55 ?C
Mechanical Durability10000000 cycles
Resistance23500 Ohm +/- 15 %
Control Circuit Voltage Limits0.8...1.1 Uc AC
Local Signallingflag
Mounting Positionany position
[Uimp] Rated Impulse Withstand Voltage6 kV 1.2/50 ?s
Load Current5 A 250 V AC
Drop-Out Voltage Threshold>= 0.3 Uc AC
Minimum Switching Capacity50 mW at 10 mA, 5 V DC
[Ithe] Conventional Enclosed Thermal Current5 A -40-55 ?C
Contact Resistance100 mOhm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1406006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCSA || CE || UL || EAC || DNV-GL
Ambient Air Temperature For Operation-40-70 ?C
StandardsIEC 61810-1 || CSA C22.2 No 14 || UL 508
Protection CategoryRT I
Pollution Degree2
Shock Resistance20 gn in operation || 100 gn not in operation
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Relative Humidity10-85 %
Ambient Air Temperature For Storage-40-85 ?C
Overvoltage CategoryIII
Ip Degree Of ProtectionIP40
