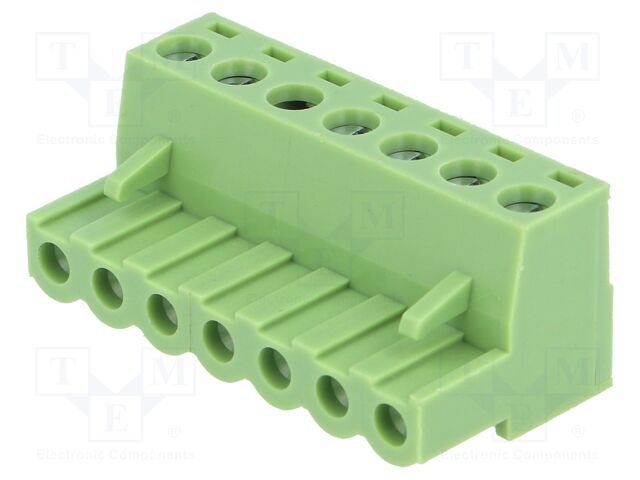

XINYA XY2500F-B(5.08)-7P | Pluggable terminal block; 5.08mm; ways: 7; straight; plug; female
XINYA XY2500F-B(5.08)-7P | Pluggable terminal block; 5.08mm; ways: 7; straight; plug; femal
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| Extra Product Name | XINYA XY2500F-B(5.08)-7P | Pluggable terminal block; 5.08mm; ways: 7; straight; plug; female |
| atoms | 1 |
| jsonUrlData | cab86ea7c86018591e2ced72ba10699b. |
| jsonUrlData2 | ed5d5f31ccd1666bd623 |
| keywords | XINYA, XY2500F-B(5.08)-7P, TBW-5.08-K-7P, Connectors, Power connectors, Terminal blocks, Pluggable terminal blocks |
| moq, multiple, tierMinQty1 | 2 |
| MPN | XY2500F-B(5.08)-7P |
| qtyInStock | 1946 |
| SKU | TBW-5.08-K-7P |
| snippet | XINYA XY2500F-B(5.08)-7P | Pluggable terminal block; 5.08mm; ways: 7; straight; plug; femal |
| tierMinQty2 | 10 |
| tierMinQty3 | 50 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 0.95 |
| tierPrice2 | 0.784 |
| tierPrice3 | 0.698 |
| tierPrice4 | 0.63 |
| tierPrice5 | 0.559 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways, Number of terminals | 7 |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp, |
| Wire cross-section | 2.5mm |
| Wire size | 28AWG...12AWG |
| Colour | green |
| Rated voltage | 250V |
| Connector pinout layout | 1x7 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | latch |
| Conform to the norm | UL |
| Contact plating | nickel plated |
| Operating temperature | -40...120?C |
| Contact material | brass |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBW-5.08-K-7P | 2 | 1946 | 2 | 2 @ $0.95, 10 @ $0.78, 50 @ $0.70, 100 @ $0.63, 500 @ $0.56 |
