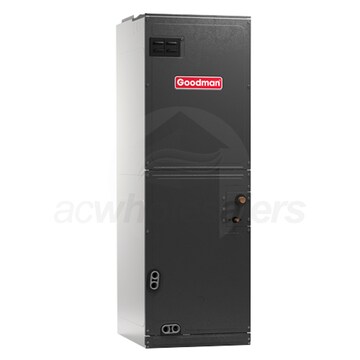

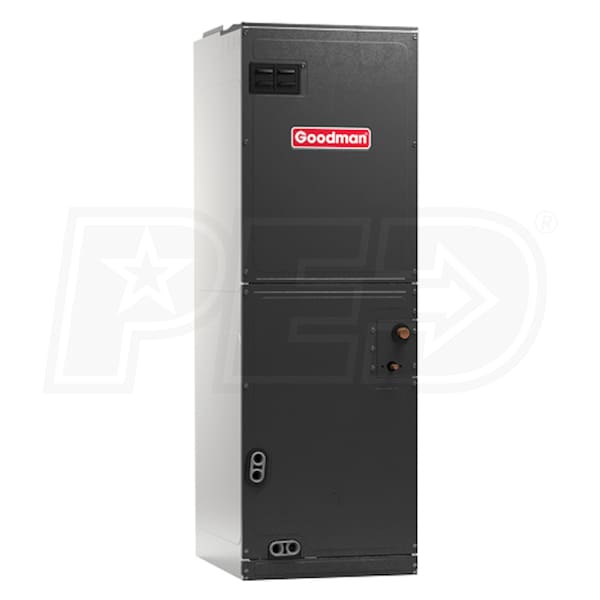

GOODMAN . ASPT61D14

Features a direct-drive multi-speed blower motor, all-aluminum evaporator coil, transformer, and blower time-delay. Multi-position mounting. Includes a thermostatic expansion valve (TXV). AHRI Certified, ETL Listed. This listing is for each. This item requires special shipping, additional charges may apply. 1-PIECE, MULTI-SPEED, MULTI-POSITION, HORIZONTAL/VERTICAL TYPE 17-1/2 INCH WIDTH X 21 INCH DEPTH X 58 INCH HEIGHT SIZE 60 HERTZ FREQUENCY RATING TERMINAL BLOCK CONNECTION TYPE 1 PHASE (S) ETL (CANADA AND US), AHRI, ASHRAE 193, BBB, ISO 9001/14001 APPROVAL 208/230 VOLT AC VOLTAGE RATING 6.9 AMP FULL LOAD (BLOWER MOTOR), 8.6 AMP (MCA), 15 AMP (MOP) CURRENT RATING 1 HP (BLOWER MOTOR) POWER RATING GALVANIZED, LEATHER GRAIN EMBOSSED PAINTED ENCLOSURE FINISH 60000 BTU/HOUR COOLING CAPACITY REFRIGERANT TYPE R-410A ENERGY EFFICIENCY RATIO 13 SEER MOTOR TYPE EEM EXPANSION DEVICE EXPANSION VALVE COIL CONNECTION SIZE 3/8 INCH (LIQUID), 7/8 INCH (SUCTION), 3/4 INCH FEMALE THREADED (DRAIN) COIL MATERIAL ALUMINUM BLOWER SIZE 11-15/16 INCH DIAMETER X 10-5/8 INCH WIDTH ASPT MODEL

This comes with a 10-year parts limited warranty provided it is installed by a qualified installer and registered online with 60 days of installation System Configuration: Upflow, Downflow, Horizontal Product Features Internal factory-installed thermal expansion valves for cooling and heat pump applications All-aluminum evaporator coil Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193 Product Specifications Dimensions: 21x24.5x58 in Voltage: 208/240 Motor Type: Multi-speed blower Model Number: ASPT61D14

" This listing is for the air handler only, no accessories are included. You may need an electric heat kit, options include HKSC05XC, HKSC08XC, and HKSC10XC and are sold separately Durability and Reliability The ASPT61D14 air handler is factory-sealed, making it compliant out of the box with 2001 Florida Building Code compliant and decreasing air leakage, increasing efficiency and saving the air to heat or cool your home, and providing peace of mind that the reliability of the unit will heat or cool your home whenever you need it to. Moreover, the ASPT61D14 has a sub-structure that increases overall unit stability, and its cabinet is durable in construction to protect your new investment. Warranty This Goodman products come with a 10-year parts limited warranty from the manufacturer, provided that the items are installed by a qualified installer and are registered within 60 days of installation. Air Handler Tonnage: 5 Ton Air Handler Orientation: Multi-Positional System Configuration: Upflow, Downflow, Horizontal Coolant: R-­‐410A Product Features The ASPT61D14 includes a Direct-drive, multi-speed ECM blower motor The ASPT61D14 is AHRI certified; ETL listed The ASPT61D14 has an All-aluminum evaporator coil The ASPT61D14 contains a Coil mounting track for quick repositioning. The ASPT61D14 has a Cabinet air leakage was less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 19 Product Specifications Air Handler Dimensions: 23 3/8 inches in depth x 24½ Inches wide x 58 inches high. Voltage: 208/230 Air Handler: 208/240 Air Handler Motor: Multi-Speed Liquid Line Valve Connection: 22⅞ inch Suction Line Valve Connection: 26⅛ inch Air Handler Model Number: ASPT61D14 "

" This listing is for the air handler only, no accessories are included. You may need an electric heat kit, options include HKSC05XC, HKSC08XC, and HKSC10XC and are sold separately Durability and Reliability The ASPT61D14 air handler is factory-sealed, making it compliant out of the box with 2001 Florida Building Code compliant and decreasing air leakage, increasing efficiency and saving the air to heat or cool your home, and providing peace of mind that the reliability of the unit will heat or cool your home whenever you need it to. Moreover, the ASPT61D14 has a sub-structure that increases overall unit stability, and its cabinet is durable in construction to protect your new investment. Warranty This Goodman products come with a 10-year parts limited warranty from the manufacturer, provided that the items are installed by a qualified installer and are registered within 60 days of installation. Air Handler Tonnage: 5 Ton Air Handler Orientation: Multi-Positional System Configuration: Upflow, Downflow, Horizontal Coolant: R-­‐410A Product Features The ASPT61D14 includes a Direct-drive, multi-speed ECM blower motor The ASPT61D14 is AHRI certified; ETL listed The ASPT61D14 has an All-aluminum evaporator coil The ASPT61D14 contains a Coil mounting track for quick repositioning. The ASPT61D14 has a Cabinet air leakage was less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 19 Product Specifications Air Handler Dimensions: 23 3/8 inches in depth x 24½ Inches wide x 58 inches high. Voltage: 208/230 Air Handler: 208/240 Air Handler Motor: Multi-Speed Liquid Line Valve Connection: 22⅞ inch Suction Line Valve Connection: 26⅛ inch Air Handler Model Number: ASPT61D14 "

" This listing is for the air handler only, no accessories are included. You may need an electric heat kit, options include HKSC05XC, HKSC08XC, and HKSC10XC and are sold separately Durability and Reliability The ASPT61D14 air handler is factory-sealed, making it compliant out of the box with 2001 Florida Building Code compliant and decreasing air leakage, increasing efficiency and saving the air to heat or cool your home, and providing peace of mind that the reliability of the unit will heat or cool your home whenever you need it to. Moreover, the ASPT61D14 has a sub-structure that increases overall unit stability, and its cabinet is durable in construction to protect your new investment. Depending on the location and use, air handlers may be required to provide heating, cooling, or both to modify the supply air temperature and humidity level. In colder areas, humidification is usually required for constant heating to cause the air to dry out, resulting in poor air quality and increased static electricity. Warranty This Goodman products come with a 10-year parts limited warranty from the manufacturer, provided that the items are installed by a qualified installer and are registered within 60 days of installation. Air Handler Tonnage: 5 Ton Air Handler Orientation: Multi-Positional System Configuration: Upflow, Downflow, Horizontal Coolant: R-­‐410A Product Features The ASPT61D14 includes a Direct-drive, multi-speed ECM blower motor The ASPT61D14 is AHRI certified; ETL listed The ASPT61D14 has an All-aluminum evaporator coil The ASPT61D14 contains a Coil mounting track for quick repositioning. The ASPT61D14 has a Cabinet air leakage was less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 19 Product Specifications Air Handler Dimensions: 21 in
