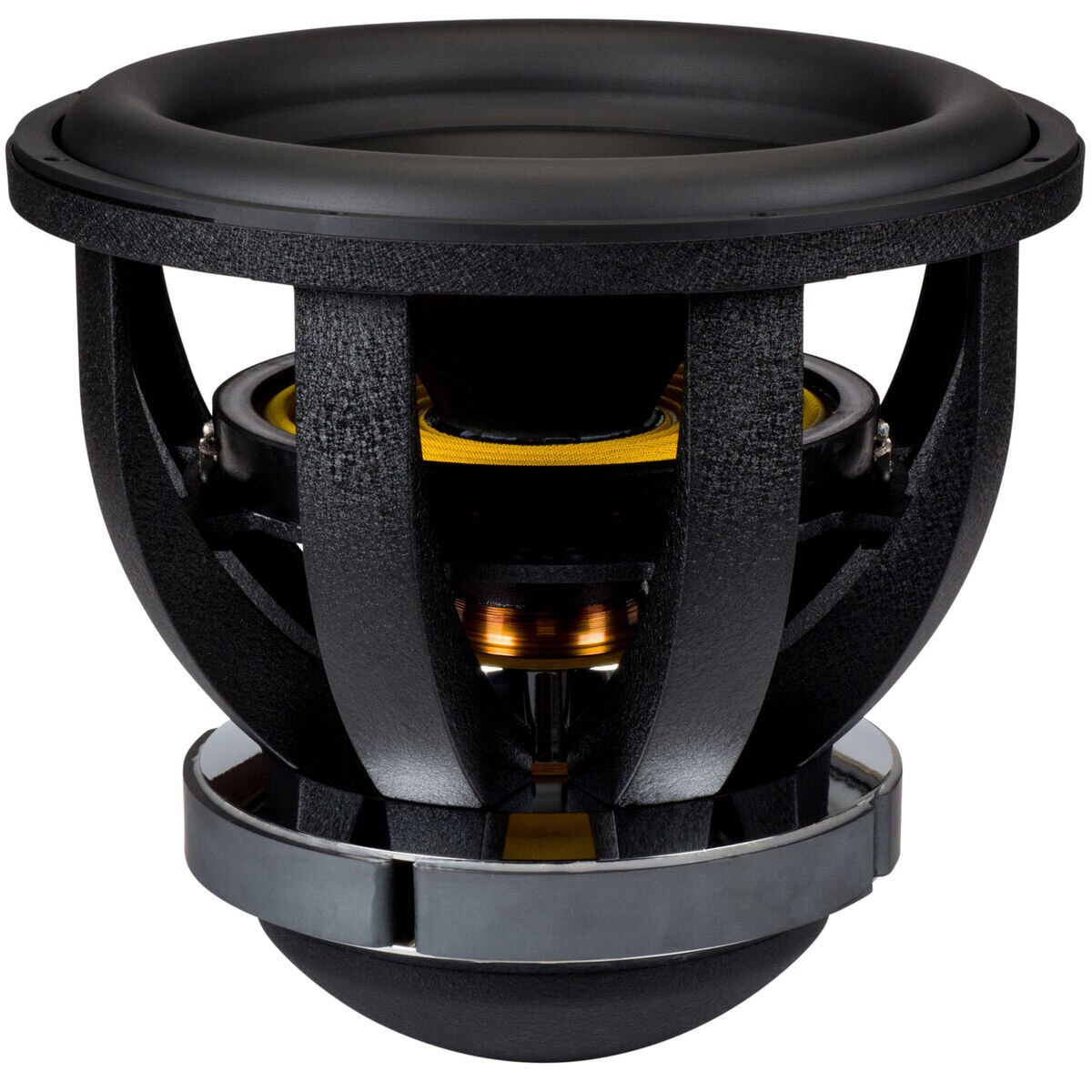

RE Audio XXX15-v2-4 15" Cast Frame DVC Subwoofer Driver 4+4 Ohm

RE Audio XXX15-v2-4 15" Cast Frame DVC Subwoofer Driver 4+4 Ohm. Part Number: 268-8153 by RE Audio.

RE Audio . XXX15-V2-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandRE Audio
DimensionUnitinch
Extra Product NameRE Audio XXX15-v2-4 15" Cast Frame DVC Subwoofer Driver 4+4 Ohm
UPC611892992320
Weight97
WeightUnitlbs
depth, length13.5
diameter, height, width16.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPNXXX15-V2-4
qtyInStock0
SKU, Part Number268-8153
snippetRE Audio XXX15-v2-4 15" Cast Frame DVC Subwoofer Driver 4+4 Ohm. Part Number: 268-8153 by RE Audio.
ModelXXX15-v2-4
Unit of MeasureEach
Nominal Diameter15"
Power Handling (RMS)2000 Watts
Power Handling (MAX)4000 Watts
Impedance8?
Sensitivity85.81dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)19.1Hz
DC Resistance (Re)4.2?
Mechanical Q (Qms)3.62
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.501
Compliance Equivalent Volume (Vas)7.31ft?
BL Product (BL)18.16T?m
Maximum Linear Excursion (Xmax)54mm
Surface Area of Cone (Sd)810cm?
Cone MaterialKevlar
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter16"
Baffle Cutout Diameter14.5"
Depth13.5"
# Mounting Holes8
Sealed Volume1.85ft?
Vented Volume3.6ft?
Vented F334Hz
