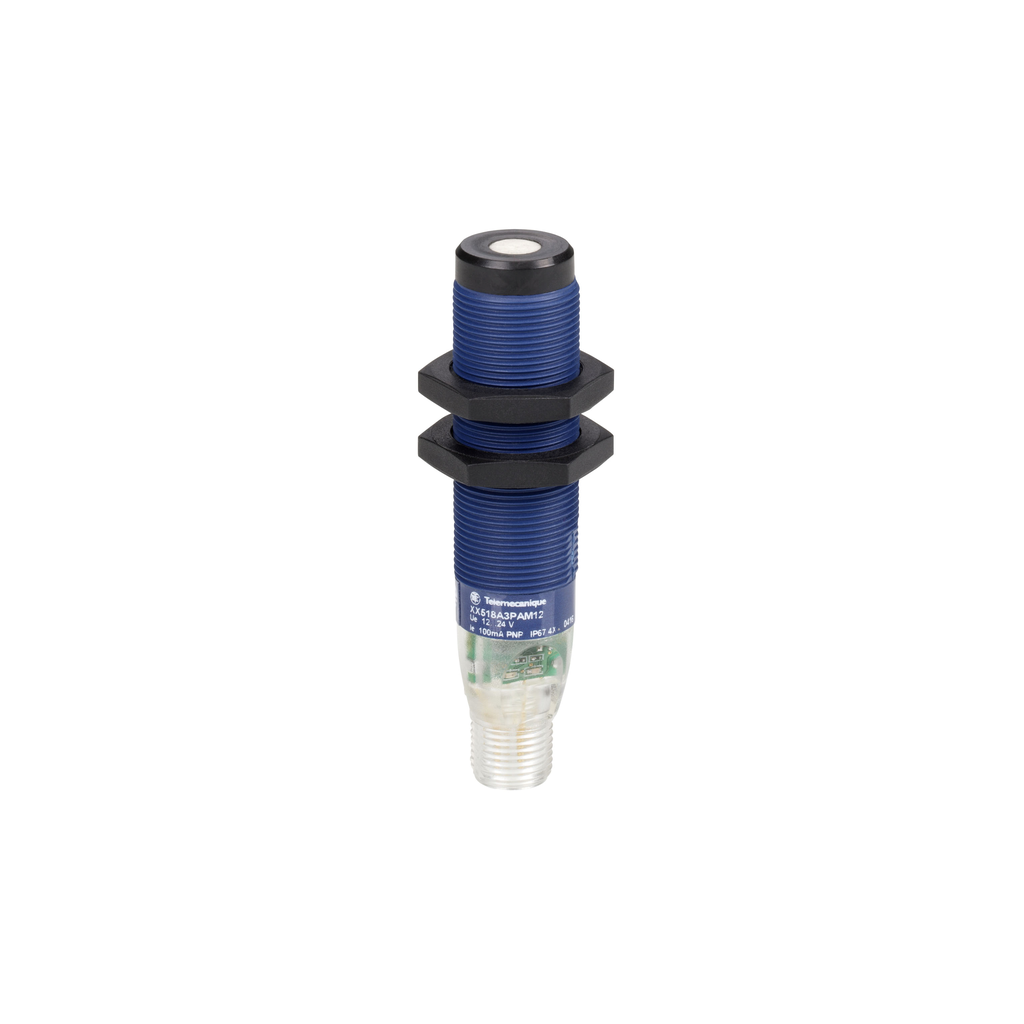

Ultrasonic sensors XX, 18 mm ultrasonic sensor | Mayer Electric

Mayer Electric Supply . XX518A3NBM12

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameUltrasonic sensors XX, 18 mm ultrasonic sensor | Mayer Electric
UPC785901613268
Weight0.033
WeightUnitkg
Weight_AttribNet Weight
height, width18.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Ultrasonic-sensors-XX-18-mm-ultrasonic-sensor-785901613268
jsonUrlData22b0c356c-109d-4a61-adda-aeea0058c177
length77.62
length_AttribLength
moq, multiple, tierMinQty11
MPNXX518A3NBM12
qtyInStock0
SKUSQDXX518A3NBM12
tierPrice1130.18
width_AttribWidth
Discrete Output TypeNPN
Discrete Output Function1 NC
Type Of Output Signaldiscrete
Range Of ProductTelemecanique Ultrasonic sensors XX
Sensor NameXX5
[Sd] Sensing Range50.8-508 mm
Materialvalox
Wiring Technique4-wire
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle5 ?
Product Specific Applicationoptimum and universal
Sensor Typeultrasonic sensor
Electrical Connection1 male connector M12 4 pins
Sensor Design? 18 mm
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Warranty18 months
Iso ThreadM18 x 1
Type Of Sensing Windowadjustable
Repeat Accuracy1.27 %
Height, Width, Depth, Cad Overall Width, Cad Overall Depth18 mm
Minimum Size Of Detected Objectcylinder diameter 2.5 mm - up to 254 mm sensing distance
Maximum Switching Current100 mA overload and short-circuit protection
Switching Frequency40 Hz
Maximum Delay Response15 ms
Status Ledsetting-up assistance 2 LEDs green/yellow (flashing)) || output state 2 LEDs green/yellow)
Transmission Frequency300 kHz
[Sa] Assured Operating Distance51-508 mm teach mode)
MarkingCE
Length77.62 mm
Net Weight0.033 kg
Cad Overall Height0.654 mm
Current Consumption40 mA
Maximum Differential Travel2.5 mm
Blind Zone51 mm
Deviation Angle From 90? Of Object To Be Detected-10-10 ?
Maximum Delay Recovery1000 ms
Maximum Delay First Up100 ms
Supply Voltage Limits10-28 V DC
Enclosure MaterialULTEM
Front Materialglass epoxy
[Sn] Nominal Sensing Distance508 mm
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP111234EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI111225EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL
Ambient Air Temperature For Operation-30-70 ?C
Resistance To Electromagnetic Fields10 V/m level 3 IEC 61000-4-3
StandardsIEC 60947-5-2
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Ambient Air Temperature For Storage-40-80 ?C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXX518A3NBM12111 @ $130.18
