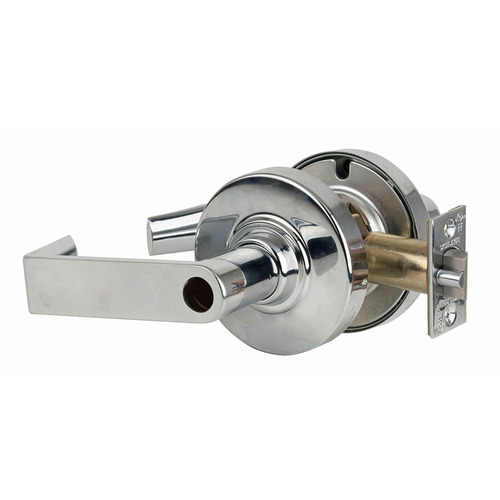

Schlage Commercial ND94LD RHO 625 ND Series Vandlgard Classroom Less Cylinder Rhodes with 13-247 Latch 10-025 Strike Bright Chrome Finish

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSchlage Commercial
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND94LD RHO 625 ND Series Vandlgard Classroom Less Cylinder Rhodes with 13-247 Latch 10-025 Strike Bright Chrome Finish
atoms, moq, multiple, tierMinQty1, Package Qty1
height10.0
height_AttribCase Height
length16.375
length_AttribCase Length
MPN, SKUND94LD RHO 625
qtyInStock0
tierPrice1610.34
width14.625
width_AttribCase Width
Base MaterialBrass or Bronze
Strike Width1-1/4"
Strike TypeANSI Strike
Strike Number10-025
Strike Height4-7/8"
Special MarksFire rated 3 Hours {A}
ScrewsCombination
Rose/Escutcheon Design3-7/16 In. Diameter
Lock Face Size2-1/4 In. x 1-1/8 In.
Lever/Knob DesignRHO - Rhodes
Latch TypeDeadlatch
Latch Number13-247
Latch Backset Dim2-3/4 In.
Case Width14.625"
Case Volume2394.84375
Case Height10"
Bolt Protection1/2"
ANSI FunctionF84
Package Width8.25"
Package Volume372.28125
Package Length9.5"
Package Height4.75"
BAA QualifiedYes
OriginMexico
Fire Rated3 Hours {A}
Cylinder TypeL-Less Conventional Cylinder
Function94-Vandlgard Classroom
Case Length16.375"
Color Code625/US26
HandNot Handed
Thickness1-5/8" - 2-1/8"
GradeANSI/BHMA Grade 1
Finish, Finish DescriptionBright Polished Chrome
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
DesignRhodes
HandingReversible
Lever StyleRHO-Rhodes
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Projection2.9375
Lever Length4.5625
Door Thickness1 5/8" - 2 1/8"
Bore Size2.1250
ADA ApprovedFalse
Strike Size1-1/4" x 4-7/8"
Manufacturer ParentAllegion
Knob/Lever Size4-9/16 Inch
Latch Throw1/2 Inch
Function DescriptionDeadlocking latch bolt by levers. Outside knob/lever is locked by key in outside lever. Inside knob/lever is always free.
Sub-SeriesCL_Cylindrical_Locks_schlage_commercial_343
Lever Style FamilyStraight Return Lever
ADA CompliantYES
Front Size1-1/8" x 2-1/4"
Latch Bolt MaterialStainless Steel
Lever Length-Inches4.5625 Inch
Handle TypeLever
Door Cross Bore2.125 Inch
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Trim MaterialPressure Cast Zinc (Lever)
Function FamilyClassroom
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Rose Diameter3-7/16 Inch
Product Projection2-15/16 Inch
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Latch CornerSquare
Warranty10 year mechanical
Cylinder Type UsedLess Cylinder
Strike Lip1-3/16 Inch
Finish FamilyPolished Chrome
