1790357 Phoenix Contact | Connectors, Interconnects | DigiKey

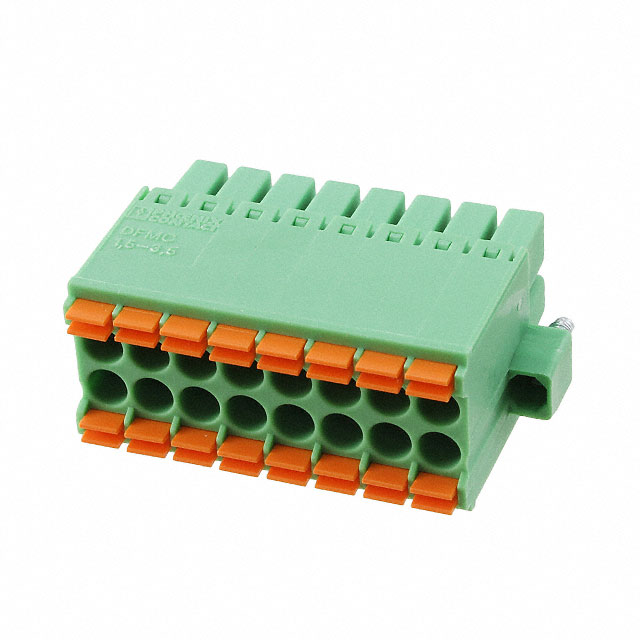

PCB Plug Push-In 3.5mm 16AWG 160V 8A 8 Position COMBICON, DFMC Series

Phoenix Contact . 1790357

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrPhoenix Contact
Extra Product Name1790357 Phoenix Contact | Connectors, Interconnects | DigiKey
atoms, minimum, moq, multiple1
MPN1790357
qtyInStock159
SKU277-8788-ND
Part StatusActive
TypePlug, Female Sockets
Number of Positions16
Positions Per Level8
Number of Levels2
Pitch0.138" (3.50mm)
Header Orientation, Operating Temperature, Ingress Protection, Screw Size, Torque - Screw, Contact Material, Contact Tail Length-
Plug Wire Entry180?
Termination StyleScrewless - Push-In Spring
Mounting TypeFree Hanging (In-Line)
Current - IEC8A
Wire Gauge or Range - AWG16-24 AWG
Wire Gauge or Range - mm?0.2-1.5mm?
ColorGreen
Contact Mating FinishTin
FeaturesMating Flange
Material Flammability RatingUL94 V-0
Wire Strip Length10mm
Housing MaterialPolyamide (PA), Nylon
Insulation Height0.522" (13.25mm)
Voltage - IEC250 V
Current - UL8 A
Voltage - UL150 V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key277-8788-ND11591
Newark88W477212511 @ $17.04, 10 @ $16.49, 50 @ $15.74, 100 @ $14.49, 250 @ $13.39, 500 @ $12.70, 1000 @ $11.95
Radwell179035750-2501 @ $10.56
Allied Electronics709943855050
HotendaH1542183111 @ $11.58, 10 @ $11.27, 50 @ $10.53, 100 @ $9.69, 250 @ $8.95, 500 @ $8.53
RS Delivers881-8938111 @ $528.10
RS Online881893811
AmazonTPB07M6ZZJ1P111 @ $33.81
Digi-Key2743761111 @ $17.26, 10 @ $14.12, 50 @ $13.20, 100 @ $12.14, 250 @ $11.22, 500 @ $10.69
industrialautomationparts.comAE-004826111 @ $11.90
Airline HydraulicsPHOENIX 1790357111 @ $13.86
us.rs-online.com70994385505050 @ $14.91, 500 @ $14.61, 2500 @ $14.17
