Parker

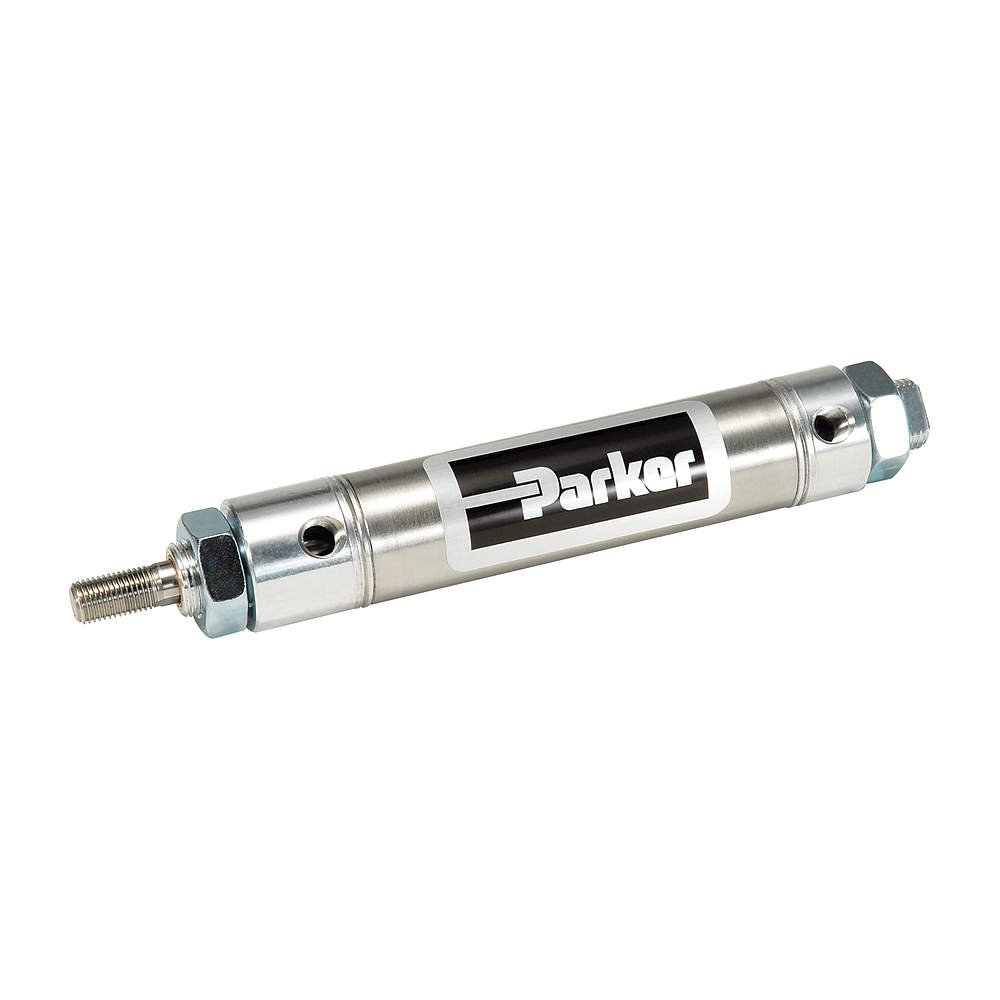

Round Air Cylinder 3/4 Inch Bore 4 Inch Stroke | 49J668 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75DXPSRM04.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J668
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.4
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead26
extendedQty-2
height, width1.2
jsonUrlData924526ffbdad25e5923b
length8.8
moq, multiple, tierMinQty11
MPN0.75DXPSRM04.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6219911
tierPrice142.75
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-4-in-stroke-round-body-double-acting-075dxpsrm0400/i/G6219911/
Cylinder Action, Single Acting/Double ActingDouble Acting
ItemAir Cylinder
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cd, Dimension Cc0.25 in
Overall Length8.53 in
Rod Thread Length0.5 in
Pivot Hole Dia0.251 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonYes
Stroke4 in
Mount, Air Cylinder MountNose and Pivot
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Dimension E, Dimension Cb0.38 in
End Cap Material, Piston MaterialAluminum
FinishSilver
Dimension B0.624 in
FeaturesSwitch Ready
Nose Mount Thread, Dimension N15/8"-18
Temp Range14 Degrees to 140 Degrees F
Dimension Kk1/4"-28 UNF
Rod Thread Size1/4-28 UNF
Dimension A1/2 in
Dimension L0.34 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6219911111 @ $42.75
Raptor SuppliesAJ2ECV111 @ $106.57
AmazonB074JF9R851-211 @ $65.56
bscsource.com075DXPSRM0400111 @ $70.59
sustainablesupply.comC16852311-211 @ $68.21
Guardian854954301-211 @ $98.90
Radwell0.75DXPSRM04.0011151
National Supply Network854954301-211 @ $89.19
