11 Position 41 Amp PCB Header, Horizontal, For Use With Pluggable Terminal Block Connectors, PWM1P7.62-11DPSQ | SourceASI

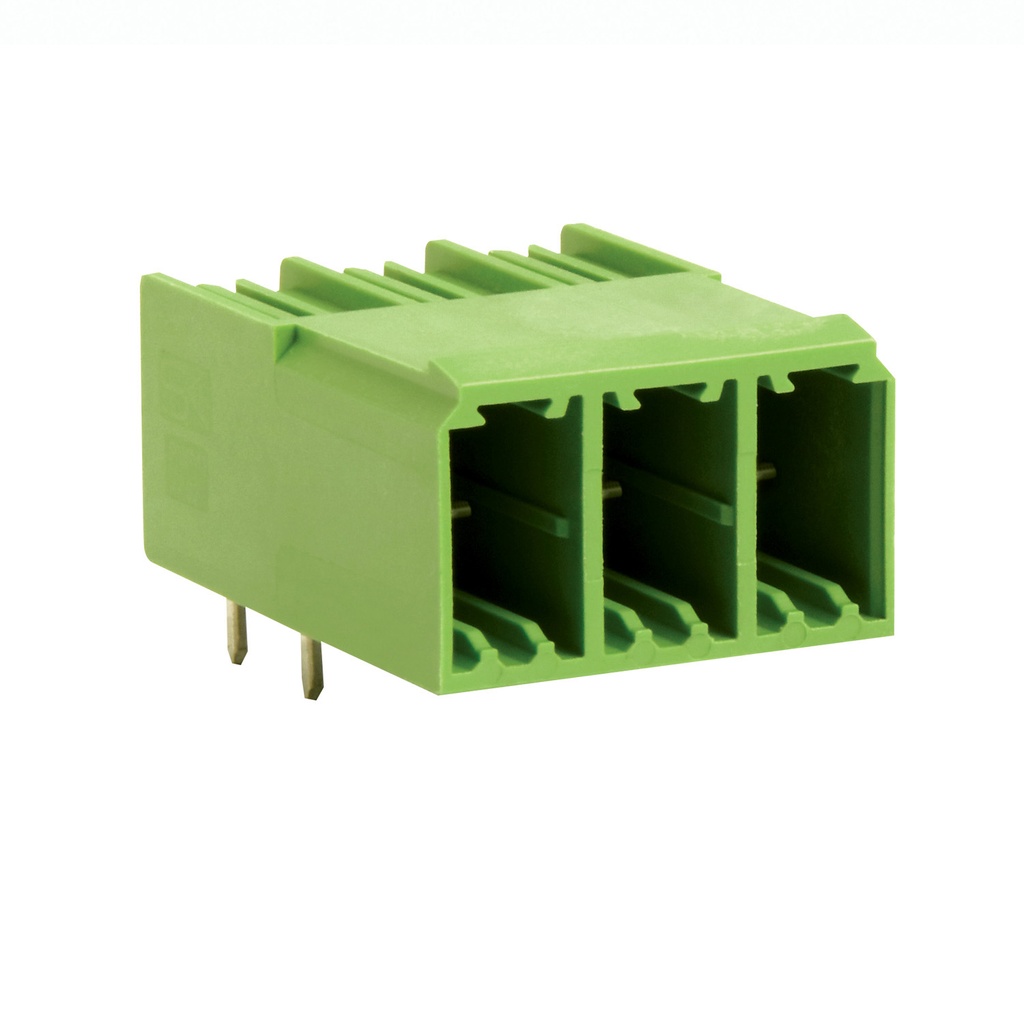

The PWM1P7.62-11DPSQ is a 11 position 41 amp horizontal PCB header that is used with the high current screw terminal connector, PWF1 series. This horizontal 41 amp PCB pin header is fully enclosed and the housing is polarized so that the high current 41 amp pluggable terminal block can only mate in one direction. The green housing is made out of a UL94V0 thermoplastic and each position has 2 solder pins to the PCB. The UL ratings for this 11 position horizontal 41 amp header are 41A, 300V.
