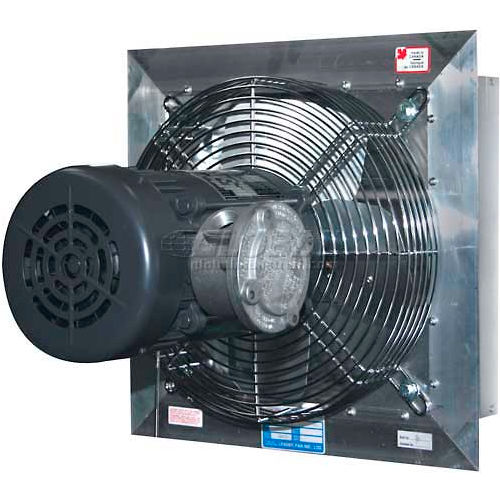

Exhaust Fan, Hazardous Location,20In
Exhaust Fan Standard Duty 20 Inch 3640 Cfm | 29NV40 | Worldwide Delivery | +44 203 287 5224 | [email protected]
Gallery
Attributes
| Brand name, Manufacturer name, Brand | Canarm |
|---|---|
| Manufacturer | Canarm Canarm HVAC Canarm Ltd |
| CategoryId | 5113 |
| DimensionUnit | inch |
| GraingerSku | 29NV40 |
| Extra Product Name | Exhaust Fan, Hazardous Location,20In |
| UPC | 062345206158 |
| UnitOfMeasure | EA |
| Weight | 114 0.000625 114.0 114.00 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
| countryOfOrigin | CA |
| extendedLead | 10 |
| extendedQty | -2 |
| height | 24.5 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 30.5 |
| moq, multiple, tierMinQty1, Phase, Number of Fans, Number of Speeds, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Keyword, ModelNumber, Model_number, PartNumber, Part_number | AX20-4 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G6937411 |
| tierPrice1 | 1075.48 |
| url | https://www.zoro.com/canarm-exhaust-fan-hazardous-location-20in-ax20-4/i/G6937411/ |
| width | 26 |
| Blade Dia, Blade Diameter | 20 in |
| Venturi Depth (In ) | 5/8 in |
| Dimension D (In ) | 14 in |
| Dimension A (In ), Outside Dia (In ), Width (In ), Height (In ), Overall Width, Overall Height, Overall Diameter | 24 3/4 in |
| Flange Width (In ) | 1 1/2 in |
| Dimension C (In ), For Maximum Wall Thickness, For Minimum Wall Thickness | 5 in |
| Shaft Dia (In ), Shaft Diameter | 1/2 in |
| Max Depth (In ), Overall Depth | 19 in |
| Venturi Clearance Dia (In ), Venturi Diameter | 1/8 in |
| Dimension B (In ) | 21 3/4 in |
| Duct Height, Duct Diameter, Duct Width, Duct Shape | Not Applicable |
| For Cut-Out Height, For Cut-Out Width | 21 in |
| Manufacturer Warranty Length | 1 yr |
| Item | Shutter Mounted Hazardous Location Exhaust Fan |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Type | Explosion Proof ean upc |
| Fan Voltage | 115/208-230V AC |
| Exhaust/Supply Fan Motor HP, Motor Horsepower | 1/3 hp |
| Drive Package With Motor Included, Drive Package Included, Includes Grill, Speed Controllable, Includes Dehumidistat, Includes Motor | No |
| CFM @ 0 000-In SP, Supply Airflow @ 0 000 in SP, Exhaust Airflow @ 0 000 in SP, Maximum Airflow | 3,640 cfm |
| Sones @ 0 000-In SP @ 5 Ft | 30 |
| Full Load Amps | 6.6/3.1-3.3 |
| Motor RPM, Motor Speed | 1,725 RPM |
| Mounting Position, Discharge Direction | Horizontal |
| Bearing Type | Ball |
| Watts | 250 W |
| Hz | 60 |
| CFM @ 0 250-In SP, Exhaust Airflow @ 0 250 in SP | 3,140 cfm |
| Frame Material | Heavy Duty Aluminum |
| Includes | Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard |
| CFM @ 0 125-In SP, Exhaust Airflow @ 0 125 in SP | 3,360 cfm |
| Number of Blades, Number_of_blades | 3 |
| Propeller Material, Housing Material, Housing Finish, Blade Material, Material, MaterialType | Aluminum |
| For Use With | General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan |
| Frame Finish | Powder Coated |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Motor Insulation | Class B |
| Max Ambient Temp (F), Maximum Ambient Operating Temperature | 104 Degrees F |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Type | Single Phase |
| Agency Compliance | cETLus |
| Motor Enclosure Design | Totally Enclosed Air-Over (TEAO) |
| Fan Style | Shutter-Mounted |
| Guard Type | Intake |
| Exhaust Airflow @ 0 100 in SP | 3,440 cfm |
| Frequency | 50 Hz |
| Control Type | Rotary Dial |
| Full Load Current | 6.6 A |
| Assembled | Fully Assembled |
| Ventilation Type | Exhaust |
| Guard Finish | Chrome |
| Noise Level @ 0 000 in SP @ 5 ft, Noise Level @ 0 100 in SP @ 5 ft | 30 sones |
| Maximum Noise Level @ 0 000 in SP @ 5 ft | Greater than 9.0 sones |
| Guard Material | Steel |
| Vent Design | Ductless |
| Nameplate Voltage, Nominal Voltage | 115V AC |
| Drive Type | Direct Drive |
| Electrical Connection | Hardwired |
| Maximum Exhaust Airflow @ 0 000 in SP | 2001 to 4000 cfm |
| Method of Construction | Stamped |
| Square Opening Required | 20-1/2 to 30 in |
| ASIN | B0000DKQ3H |
| Air_flow_capacity | 3640.0 |
| Amount | 0.00 1541.99 |
| Asin | B0000DKQ3H B00CALUX18 |
| Bullet_point | 1/3 hpHP 115/208-230V ACV Shutter Mounted Explosion Proof Exhaust Fan This listing is for each |
| ClassificationId | 5446824011 |
| Controller_type | Remote Control |
| CurrencyCode | USD |
| DisplayName | Ventilation Fans |
| Electric_fan_design | exhaust_fan |
| Generic_keyword | 20 inch |
| Height | 1090 24.50 500 75 |
| Identifier | 0062345206158 062345206158 |
| IdentifierType | EAN UPC |
| Included_components | Remote |
| IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Canarm Shutter-Mounted Exhaust Fan - 20in., 115/230 Volt, Model# AX20-4 [Misc.] Exhaust Fan, Standard Duty, 20 in, 3640 cfm |
| Item_type_keyword | built-in-household-ventilation-fans |
| Item_weight | 0.01 114.0 |
| Label, Publisher, Studio | Canarm Canarm Ltd |
| Length | 30.50 |
| Link | https://m.media-amazon.com/images/I/51ZMbz6L3RL._SL75_.jpg https://m.media-amazon.com/images/I/51ZMbz6L3RL.jpg https://m.media-amazon.com/images/I/51vS5Uj9Q9L._SL75_.jpg https://m.media-amazon.com/images/I/51vS5Uj9Q9L.jpg https://m.media-amazon.com/images/I/71pCmhtPAML.jpg |
| Mounting_type | Wall Mount |
| ProductCategoryId | 5446824011 home_improvement_display_on_website |
| ProductGroup | Home Improvement Kitchen |
| ProductType | ELECTRIC_FAN |
| ProductTypeName | ELECTRIC_FAN HARDWARE |
| Product_description | 1/3 hpHP 115/208-230V ACV Shutter Mounted Explosion Proof Exhaust Fan This listing is for each. This item requires special shipping, additional charges may apply. Technical Specification Item Shutter Mounted Explosion Proof Exhaust Fan Type Explosion Proof Blade Dia. 20 in CFM @ 0.000-In. SP 3, 640 cfm CFM @ 0.125-In. SP 3, 360 cfm CFM @ 0.250-In. SP 3, 140 cfm Sones @ 0.000-In. SP @ 5 Ft. 30 Fan Voltage 115/208-230V AC Drive Package With Motor Included No Exhaust/Supply Fan Item Exhaust Fan Hz 60 Phase 1 Full Load Amps 6.6/3.1-3.3 Watts 250 W Exhaust/Supply Fan Motor HP 1/3 hp Bearing Type Ball Motor RPM 1, 725 RPM Motor Type Explosion Proof Motor Enclosure Explosion Proof Fan Cooled Motor Insulation Class B Max. Ambient Temp. (F) 104 Degrees F Height (In.) 24 3/4 in Width (In.) 24 3/4 in Max. Depth (In.) 19 in Outside Dia. (In.) 24 3/4 in Venturi Clearance Dia. (In.) 1/8 in Venturi Depth (In.) 5/8 in Shaft Dia. (In.) 1/2 in Mounting Position Horizontal Flange Width (In.) 1 1/2 in Number of Blades 3 Propeller Material Aluminum Frame Material Heavy Duty Aluminum Frame Finish Powder Coated Agency Compliance cETLus For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan Includes Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard Hazardous Location Class 1 C, D / 2 F, G This item is restricted for international sale. This Canarm Shutter-Mounted Exhaust Panel Fan offers powerful ventilation for factories, garages, warehouses and industrial and commercial buildings. Fan Diameter in. 20, Air Delivery CFM 3,640, Amps 6.6/3.1-3.3, Depth in. 5, Dimensions L x W x H in. 24 3/4 x 14 x 24 3/4, HP 1/3, Volts 115/230, Needs to be Hardwired Yes, Dimensions L x H in. 24 3/4 x 24 3/4. Constructed of heavy-duty extruded aluminum Built-in shutters automatically open when the fan starts and close when fan stops Totally enclosed 1/3 HP single-phase motor with overload protection Heavy-duty OSHA motor mount/guard Heavy-gauge welded steel rod with plated finish Framing dimensions 22in. x 22in. Model Number: AX20-4. Size: L. Age Group: Adult. |
| Product_site_launch_date | 2007-05-24T06:14:55.000-00:00 2013-04-10T09:30:15.620Z |
| Rank | 4200 4645190 |
| Size | L |
| Sku | CANARM AX20-4 |
| Supplier_declared_dg_hz_regulation | unknown |
| Title | Canarm Shutter-Mounted Exhaust Fan - 20in., 115/230 Volt, Model# AX20-4 [Misc.] |
| URL | http://ecx.images-amazon.com/images/I/41hBOO54KwL._SL75_.jpg https://m.media-amazon.com/images/I/51ZMbz6L3RL._SL75_.jpg |
| Unit | cubic_feet_per_minute ounces pounds volts |
| Units | inches pixels pounds |
| Variant | MAIN |
| Voltage | 230.0 |
| WebsiteDisplayGroup | kitchen_display_on_website |
| WebsiteDisplayGroupName | Kitchen |
| Width | 26.00 432 500 65 75 941 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G6937411 | 1 | 1 | 1 @ $1075.48 | |
 Global Industrial | WBB880465 | 1 | Ships in 10 Business Days | 1 | 1 @ $1154.00 |
| AF8ZAR | 1 | 1 | 1 @ $1815.63 | ||
| B0000DKQ3H | 1 | -2 | 1 | 1 @ $1128.27 | |
| sustainablesupply.com | C1123794 | 1 | -2 | 1 | 1 @ $1093.15 |
| C9B AX20-4 | 1 | 1 | 1 @ $0.00 | ||
 National Supply Network | B880465 | 1 | -2 | 1 | 1 @ $1099.00 |
| G005780607 | 1 | 1 | 1 @ $1544.75 | ||
 grainger.ca | LDRAX204 | 1 | 1 | 1 @ $2240.73 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Canarm Shutter-Mounted Exhaust Fan - 20in., 115/230 Volt, Model# AX20-4 [Misc.]
Brand: Canarm
1/3 hpHP 115/208-230V ACV Shutter Mounted Explosion Proof Exhaust Fan This listing is for each. This item requires special shipping, additional charges may apply. Technical Specification Item Shutter Mounted Explosion Proof Exhaust Fan Type Explosion Proof Blade Dia. 20 in CFM @ 0.000-In. SP 3, 640 cfm CFM @ 0.125-In. SP 3, 360 cfm CFM @ 0.250-In. SP 3, 140 cfm Sones @ 0.000-In. SP @ 5 Ft. 30 Fan Voltage 115/208-230V AC Drive Package With Motor Included No Exhaust/Supply Fan Item Exhaust Fan Hz 60 Phase 1 Full Load Amps 6.6/3.1-3.3 Watts 250 W Exhaust/Supply Fan Motor HP 1/3 hp Bearing Type Ball Motor RPM 1, 725 RPM Motor Type Explosion Proof Motor Enclosure Explosion Proof Fan Cooled Motor Insulation Class B Max. Ambient Temp. (F) 104 Degrees F Height (In.) 24 3/4 in Width (In.) 24 3/4 in Max. Depth (In.) 19 in Outside Dia. (In.) 24 3/4 in Venturi Clearance Dia. (In.) 1/8 in Venturi Depth (In.) 5/8 in Shaft Dia. (In.) 1/2 in Mounting Position Horizontal Flange Width (In.) 1 1/2 in Number of Blades 3 Propeller Material Aluminum Frame Material Heavy Duty Aluminum Frame Finish Powder Coated Agency Compliance cETLus For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan Includes Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard Hazardous Location Class 1 C, D / 2 F, G This item is restricted for international sale.
Details
- 1/3 hpHP 115/208-230V ACV Shutter Mounted Explosion Proof Exhaust Fan This listing is for each
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HARDWARE |
| Part number | AX20-4 |
| Items per pack | 1 |
| Label | Canarm Ltd |
| Manufacturer | Canarm Ltd |
Exhaust Fan, Standard Duty, 20 in, 3640 cfm
Brand: Canarm

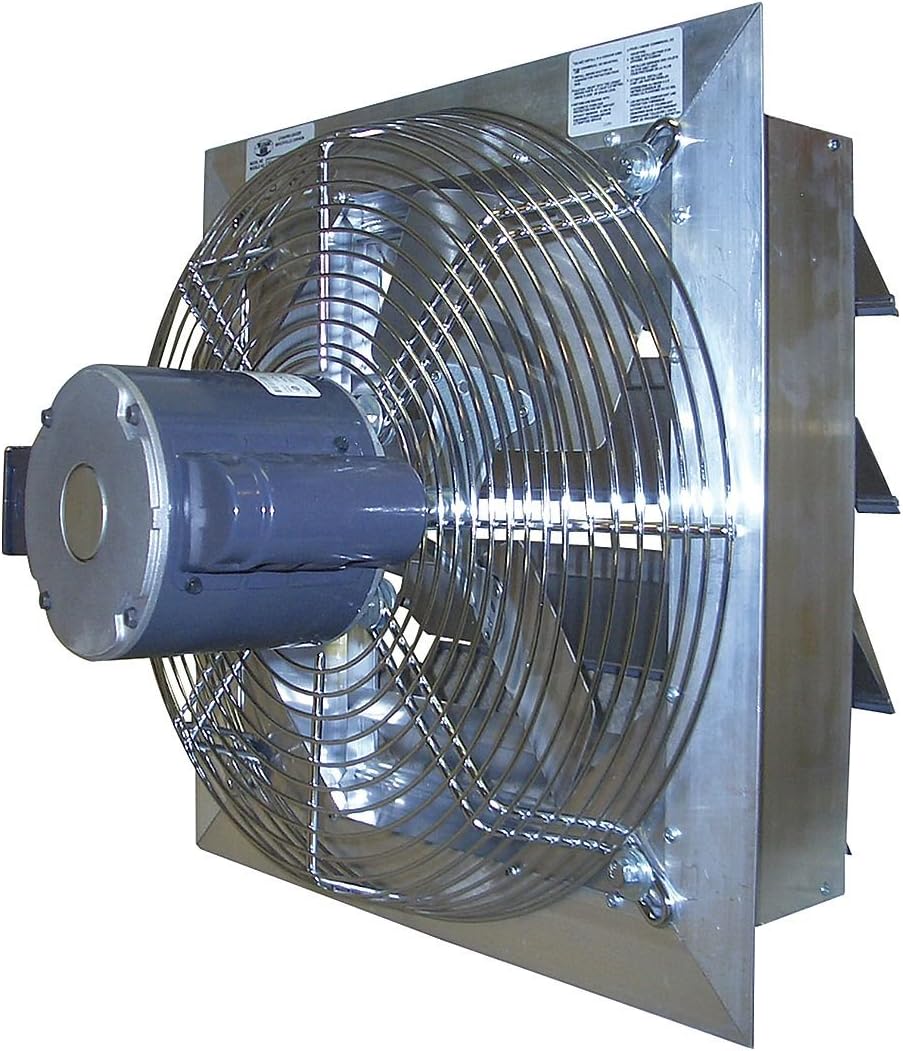

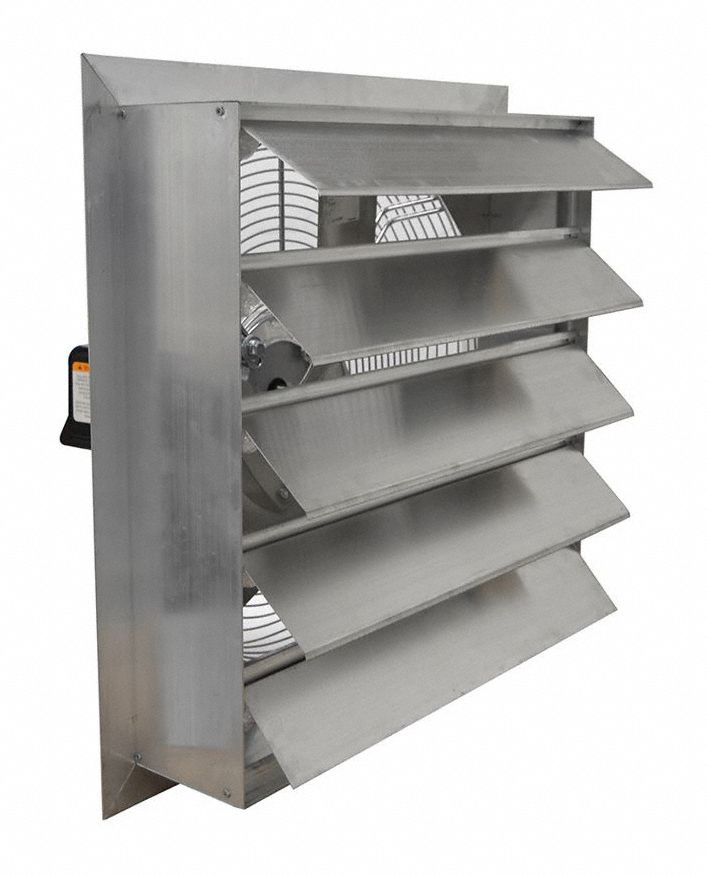

This Canarm Shutter-Mounted Exhaust Panel Fan offers powerful ventilation for factories, garages, warehouses and industrial and commercial buildings. Fan Diameter in. 20, Air Delivery CFM 3,640, Amps 6.6/3.1-3.3, Depth in. 5, Dimensions L x W x H in. 24 3/4 x 14 x 24 3/4, HP 1/3, Volts 115/230, Needs to be Hardwired Yes, Dimensions L x H in. 24 3/4 x 24 3/4. Constructed of heavy-duty extruded aluminum Built-in shutters automatically open when the fan starts and close when fan stops Totally enclosed 1/3 HP single-phase motor with overload protection Heavy-duty OSHA motor mount/guard Heavy-gauge welded steel rod with plated finish Framing dimensions 22in. x 22in. Model Number: AX20-4. Size: L. Age Group: Adult.
