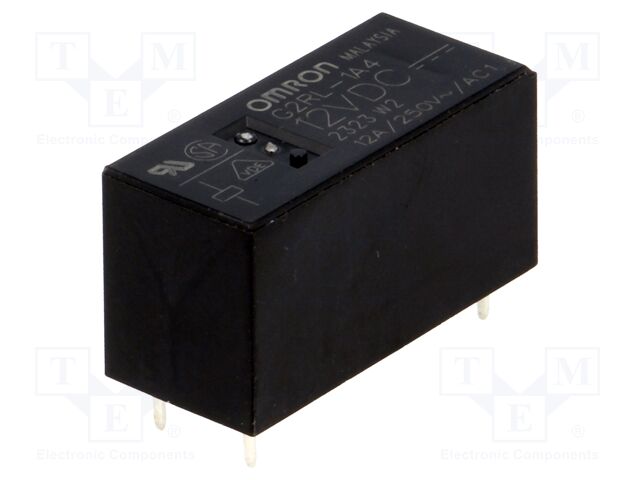

OMRON OCB G2RL-1A4 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A
OMRON OCB G2RL-1A4 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RL-1A4 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 01660874a5639e85645940ff995e33eb. |
| jsonUrlData2 | 455af40fc6726d46b3da |
| keywords | OMRON OCB, G2RL-1A4 12VDC, G2RL-1A4-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2RL-1A4 12VDC |
| qtyInStock | 15 |
| SKU | G2RL-1A4-12DC |
| snippet | OMRON OCB G2RL-1A4 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 12 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.11 |
| tierPrice2 | 2.83 |
| tierPrice3 | 2.19 |
| tierPrice4 | 2.05 |
| tierPrice5 | 1.91 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max | 12A |
| AC contacts rating @R | 12A / 250V AC |
| DC contacts rating @R | 12A / 24V DC |
| Switched voltage | max. 300V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 360? |
| Operate time | 15ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 5ms |
| Operating temperature | -40...85?C |
| Relay series | G2RL |
| Contact resistance | 100m? |
| Terminal pitch | 3.5mm |
| Coil current | 33.3mA |
| Enclosure description | hermetic seal |
| Leads | for PCB |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2RL-1A4-12DC | 1 | 15 | 1 | 1 @ $3.11, 5 @ $2.83, 25 @ $2.19, 100 @ $2.05, 500 @ $1.91 |
