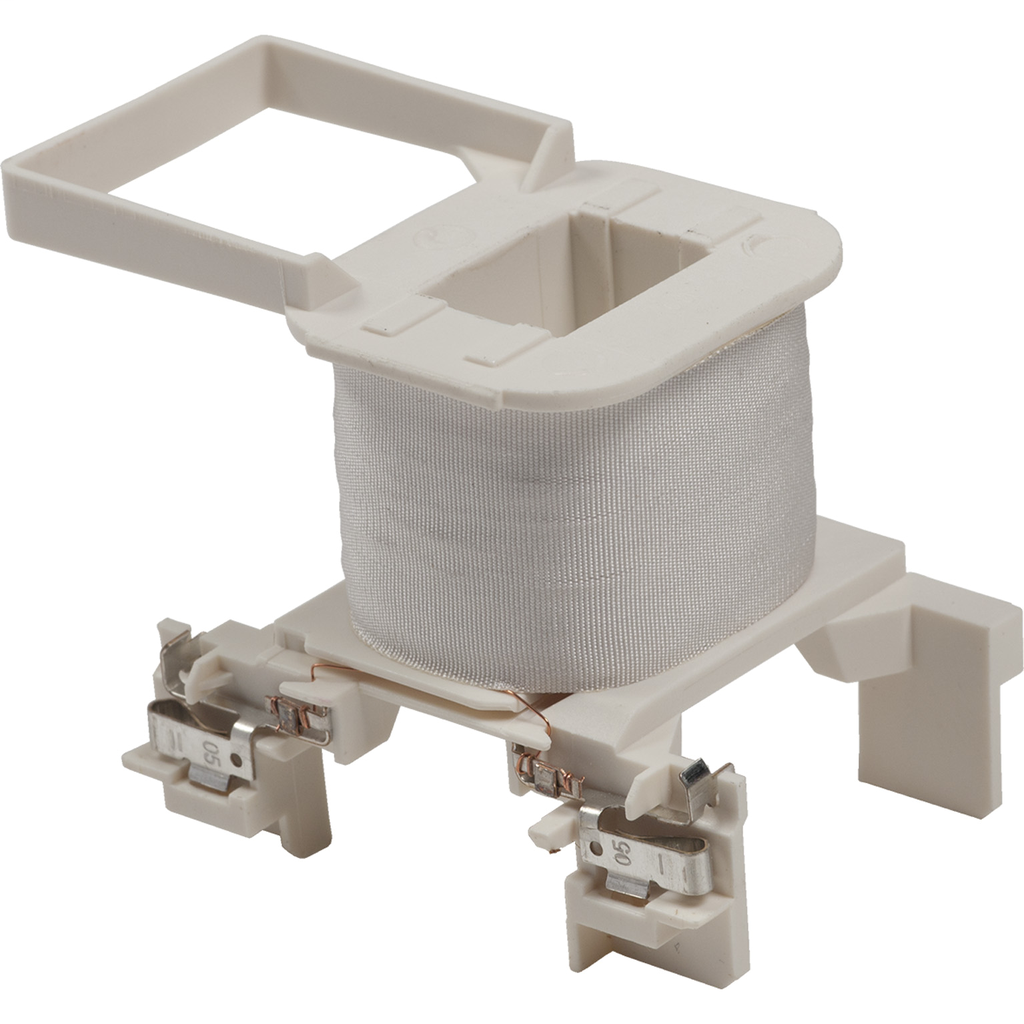

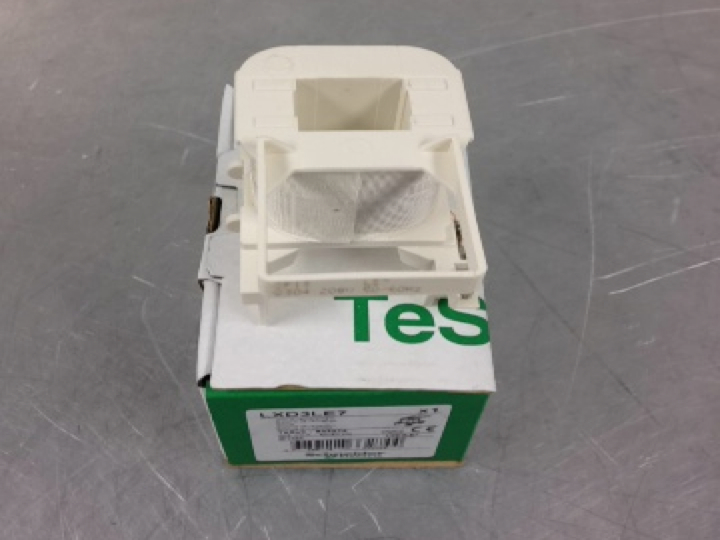

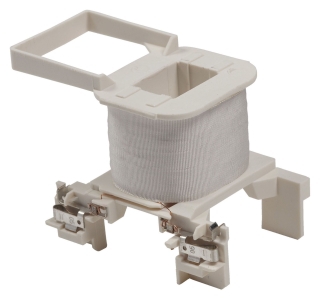

Replacement Coil, Contactor Type IEC, Coil Volts 208V AC, For Use With TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A, Hz 50/60, VA Rating 160
Replacement Coil, Contactor Type IEC, Coil Volts 208V AC, For Use With TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A, Hz 50/60, VA Rating 160
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Schneider Electric |
|---|---|
| CategoryId | 4818 |
| CategoryIdL1 | 23 |
| CategoryIdL2 | 17009 |
| CategoryIdL3 | 4517 |
| CategoryIdL4 | 17863 |
| CategoryL1 | Electrical Supplies |
| CategoryL2 | Industrial Control & Automation |
| CategoryL3 | Motor Controls |
| CategoryL4 | Contactors & Contacts |
| DimensionUnit | inch |
| GTIN, UPC | 785901677109 |
| GraingerSku | 12N820 |
| UnitOfMeasure | EA |
| Weight | 0.3 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | FR |
| height | 2.1 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 3.9 |
| moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty1 | 1 |
| MPN | LXD3LE7 |
| qtySource | qtyInStockOverride |
| SKU | G4081174 |
| snippet | Replacement Coil, Contactor Type IEC, Coil Volts 208V AC, For Use With TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A, Hz 50/60, VA Rating 160 |
| tierPrice1 | 57.65 |
| url | https://www.zoro.com/schneider-electric-replacement-magnetic-coil-208vac-5060hz-lxd3le7/i/G4081174/ |
| width | 2.2 |
| Item | Replacement Coil |
| For Use With | TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A |
| Coil Volts | 208V AC |
| VA Rating | 160 |
| Hz | 50/60 |
| Contactor Type | IEC |
| Maximum Operating Rate | 3600 cyc/h 60 ?C |
| Inductance Of Closed Circuit | 6.22 H |
| Inrush Power In Va | 160-160 VA 60 Hz 0.75 20 ?C) |
| Range | TeSys |
| Ambient Air Temperature For Operation | -5-60 ?C |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 60 Hz 60 ?C) || operational 0.85 to 1.1 Uc 60 Hz 60 ?C) |
| Device Short Name | LXD3 |
| Product Compatibility | LC1D40A to D80A || LC2D40A to D80A || LC1DT60A to DT80A |
| Heat Dissipation | 4-5 W 60 Hz |
| Product Or Component Type | contactor coil |
| Control Circuit Type | AC 60 Hz |
| Mechanical Durability | 6 Mcycles |
| Hold-In Power Consumption In Va | 15-15 VA 60 Hz 0.3 20 ?C) |
| Coil Technology | without built-in suppressor module |
| [Uc] Control Circuit Voltage | 208 V AC 60 Hz |
| Average Resistance | 105 Ohm 20 ?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G4081174 | 1 | 1 | 1 | 1 @ $57.65 |
 MRO Supply | 1066516 | 1 | 1 | ||
| Allied Electronics | 71417125 | 1 | 1 | ||
| FinditParts | 9444015 | 1 | 1 | ||
 gordonelectricsupply.com | LXD3LE7 | 1 | This Item Usually Ships in 3-5 Days | 1 | 1 @ $44.89 |
| AG9CCF | 1 | 1 | 1 @ $67.77 | ||
| Newark | 56T1151 | 1 | 1 | ||
| sustainablesupply.com | C3039410 | 1 | -2 | 1 | 1 @ $65.64 |
 Radwell | LXD3LE7 | 1 | 1 | 1 @ $55.00 | |
| 780114 | 1 | 1 | 1 @ $56.30 | ||
| industrialrefrigerationparts.com | LXD3LE7 | 1 | 1 | 1 @ $512.22 | |
 simsupply.com | ZO-G4081174 | 1 | 1 | 1 @ $68.33 | |
 cappusa.com | 4811850 | 1 | 1 | 1 @ $0.00 | |
| Crescent Electric Supply Co | 2203578 | 1 | 1 | ||
 Galco | LXD3LE7-SQD | 1 | 1 | 1 @ $51.46 | |
| LXD3LE7 | 1 | 1 | 1 @ $62.14 | ||
| standardelectricsupply.com | 2308904 | 1 | 1 | 1 @ $52.39 | |
 crescentelectric.com | 66111 | 1 | 1 | 1 @ $71.57 | |
| us.rs-online.com | 71417125 | 1 | 1 | 1 @ $65.68 | |
 blackhawksupply.com | LXD3LE7 | 1 | -2 | 1 | 1 @ $55.23 |
| simplybreakers.com | LXD3LE7 | 1 | -2 | 1 | 1 @ $98.99 |
