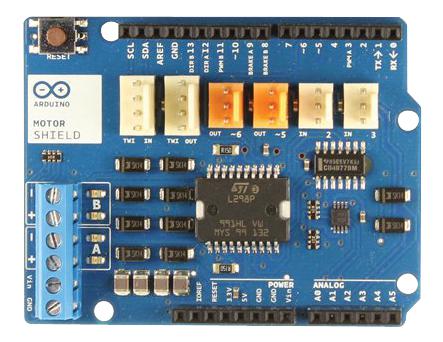

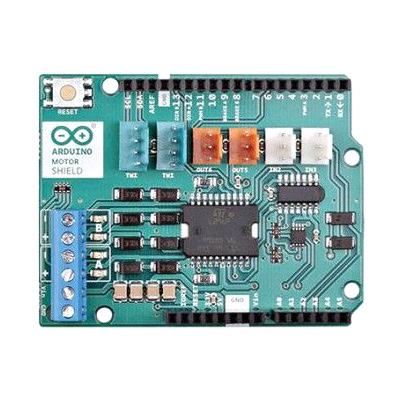

The Arduino Motor Shield is a dual full-bridge driver that allows you to control two DC motors with your Arduino board, independently adjusting the speed and direction of each motor. It also enables measurement of motor current absorption and features external power input to separate motor power from microcontroller power. This shield is compatible with the Arduino Uno, Uno SMD, Mega, and Leonardo, and can be used with up to four external relays or solenoids.
ARDUINO ARDUINO MOTOR SHIELD REV3 | Extension module; screw terminal, pin strips, pin strips
