EF80252B1-1000U-A99 Sunon Fans | Fans, Thermal Management | DigiKey

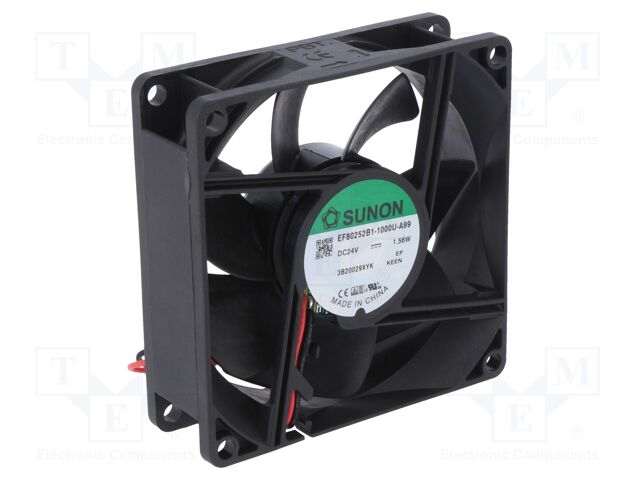

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 41.0 CFM (1.15m?/min) 2 Wire Leads

Sunon Fans . EF80252B1-1000U-A99

Attributes

Brand name, Manufacturer name, Manufacturer, MfrSunon Fans
DimensionUnitmm
Extra Product NameEF80252B1-1000U-A99 Sunon Fans | Fans, Thermal Management | DigiKey
atoms1
extraShipping, qtyInStock0
moq, multiple, tierMinQty13,600
MPNEF80252B1-1000U-A99
SKU16186000
snippetFan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 41.0 CFM (1.15m?/min) 2 Wire Leads
tierPrice14.59924
width25.0
width_AttribWidth
CategoryFans, Thermal Management
Series, Ingress Protection, Weight-
PackageBulk
Product StatusActive
Voltage - Rated24VDC
Size / DimensionSquare - 80mm L x 80mm H
Width25.00mm
Air Flow41.0 CFM (1.15m?/min)
Static Pressure0.180 in H2O (45.0 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart
Noise33.0dB(A)
Power (Watts)1.56 W
RPM3200 RPM
Termination2 Wire Leads
Operating Temperature14 ~ 158?F (-10 ~ 70?C)
Approval AgencyCCC, CE, CUR, TUV, UL
Current Rating (Amps)0.650A
Voltage Range8 ~ 27.6VDC
Material - Frame, Material - BladePolybutylene Terephthalate (PBT)
Lifetime @ Temp70000 Hrs @ 40?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key16186000360036003600 @ $4.60
TMEEF80252B1-A99-A1240511 @ $6.40, 10 @ $5.05, 50 @ $4.23, 200 @ $3.95
