BAV70T-7-F Diodes Incorporated | Discrete Semiconductor Products | DigiKey

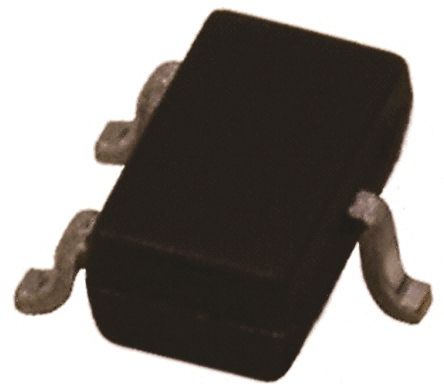

Diode Array 1 Pair Common Cathode 85 V 75mA (DC) Surface Mount SOT-523

Diodes Incorporated . BAV70T-7-F

Gallery

Attributes

Brand name, Manufacturer name, MfrDiodes Incorporated
ManufacturerDiodes Incorporated DIODES
CategoryL1, CategoryDiscrete Semiconductor Products
CategoryL2Diodes
CategoryL3Rectifiers
Extra Product NameBAV70T-7-F Diodes Incorporated | Discrete Semiconductor Products | DigiKey
atoms, moq, multiple, tierMinQty1, Item_package_quantity1
extraShipping0
MPN, Part Number, Manufacturer Product Number, Model, ModelNumber, Model_number, PartNumber, Part_numberBAV70T-7-F
packagingCut Tape (CT) & Digi-Reel?
qtyInStock68404
SKU815034
snippet, Detailed DescriptionDiode Array 1 Pair Common Cathode 85 V 75mA (DC) Surface Mount SOT-523
tariff1.2
tierMinQty1075,000
tierMinQty210
tierMinQty3100
tierMinQty4, Size500
tierMinQty51,000
tierMinQty63,000
tierMinQty76,000
tierMinQty815,000
tierMinQty930,000
tierPrice10.348
tierPrice100.03315
tierPrice20.28559999999999997
tierPrice30.1512
tierPrice40.09945599999999999
tierPrice50.067632
tierPrice60.060995999999999995
tierPrice70.053040000000000004
tierPrice80.045084
tierPrice90.03536
Product GroupBISS
Digi-Key Part NumberBAV70T-FDITR-ND - Tape & Reel (TR)
DescriptionDIODE ARRAY GP 85V 75MA SOT523
Manufacturer Standard Lead Time14 Weeks
Series-
PackageTape & Reel (TR)
Product StatusActive
Diode Configuration1 Pair Common Cathode
TechnologyStandard
Voltage - DC Reverse (Vr) (Max)85 V
Current - Average Rectified (Io) (per Diode)75mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 50 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr2 ?A @ 75 V
Operating Temperature - Junction-65?C ~ 150?C
Mounting TypeSurface Mount
Package / Case, Supplier Device PackageSOT-523
Base Product NumberBAV70
