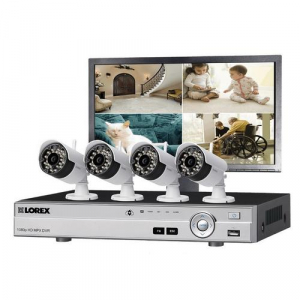

Lorex . LW44MW

Lorex . LW44MW

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLorex
moq, multiple, tierMinQty11
MPN, SKULW44MW
qtyInStock-2
tierPrice1792.00
Operating SystemLinux (embedded)
PentaplexSimultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels8 Ch
Video IN8 x 1Vp-p, CVBS, 75ohms, BNC
Video OUTNo
VGA OUT, HDMI, Covert Video, Audio Play, MicrophoneYes
Audio IN1 line IN (RCA)
Audio OUT1 line OUT (RCA)
USB Port1 at the back, 1 at the front
Alarm IN, Alarm OUT, DDNSNone
Video Output ResolutionHDMI: 3840x2160; 2560x1440; 1920x1200; 1600x1200; 1680x1050; 1920x1080; 1440x900; 1280x1024; 1280x720; 1024x768
PTZ controlRS-485 Pelco D & P Protocol
Live Display1, 4, 8
Live Display Speed240 NTSC, 200 PAL
OSDON/OFF
System NavigationUSB Mouse, IR Remote Controller, Front Panel
Motion Area SettingFixed Grid 396 pixels (22x18) NTSC/PAL
Sensitivity levels100
Firmware UpgradeAutomatic over the Internet & via USB device and Network
User AuthorityBy user group
Time SynchronizationAuto time sync by NTP server
Video CompressionH.264+
Audio CompressionG.711
Recording Resolution4K/8MP (3840x2160), 2K/4MP (2688x1520), 3MP (2304x1296), 1080p (1920x1080), 720p (1280x720), 960x480, 704x480, 352x480, 704x240, 352x240, 176x120
Recording Frame Rate4K at 7fps (per ch), 4MP at 15fps (per ch), 3MP/1080p/720p/960H: 30fps (NTSC)
Recording Resolution SettingPer camera for different resolutions
Recording Quality Control6 levels
Recording ScheduleBy hour, by day, by recording mode, by motion, by channel
Pre RecordingMax. 30 Secs
Post RecordingMax. 5 Minutes
ReliabilityWatch-Dog, Auto-recovery alter power failure
Playback Channel1 / 4 / 8
Playback SpeedVariable Max 4x
Playback PlayersBackup Player
SearchBy Time/Date & Motion Event
Log SearchUp to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage
StorageUp to 1 HDD (SATA)
Maximum CapacityUp to 1 x 8TB
Backup MediaUSB Flash Drive & HDD
Backup File FormatDAV/ASF file
Cloud ConnectionLorex Cloud Connectivity
Supported Operating SystemsWindows Mac OSX
Remote SoftwareClient Software (PC) & Safari (Mac)
Email notificationText with snapshot
Instant Smart Phone & Tablet SupportiPad, iPhone, Android
System ConfigurationFull setup configuration over network
PortsProgrammable by User
Network ProtocolHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
FilterNetwork Interface10/100-Base-TX, RJ-45
Network Speed ControlMax 64Mbps
Power ConsumptionApprox. 10 watts (no HDD included)
Supply Voltage100VAC-240VAC, 12VDC, 2A, 50/60Hz
Unit Dimensions12.8 x 10.0 x 2.2" / 325 x 255 x 55mm
Unit Weight (KGs)3.3lb / 1.5kg (without hard drive)
Operating temperature14°F ~ 130°F / -10°C ~ 55°C
Humidity10 ~ 90% RH
TX Frequency Range2.4 GHz (2412MHz~2462MHz)
TX Power17dBm
Unobstructed Effective Range600ft (183m) outdoor / 165ft (50m) indoor
ModulationOFDM and CCK
Transmission TypeDSSS
Operating Humidity< 90%
Image Sensor Type1/2.7" Color CMOS
Effective PixelsH: 1932 V: 1092
Minimum Illumination0 Lux with IR Illumination
AGCOn
AES Speed1/60 ~ 1/62,500 Sec
IR LEDs18 pieces
Night Vision Range115ft (35m) / 75ft (23m)
Environmental RatingIP66 (Indoor / Outdoor)
Lens2.8mm F2.0
Field of View118° (D) 85° (H)
Power Supply12Vdc +/- 10%
Operating Temperature-4° ~ 122°F / -20° ~ 50°C
Dimensions (W x D x H)3.2 x 6.1 x 5.6" / 82 x 155 x 143mm (with sunshade and antenna)
Weight0.34 kg / 0.7 lbs

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotLW44MW1-211 @ $792.00
