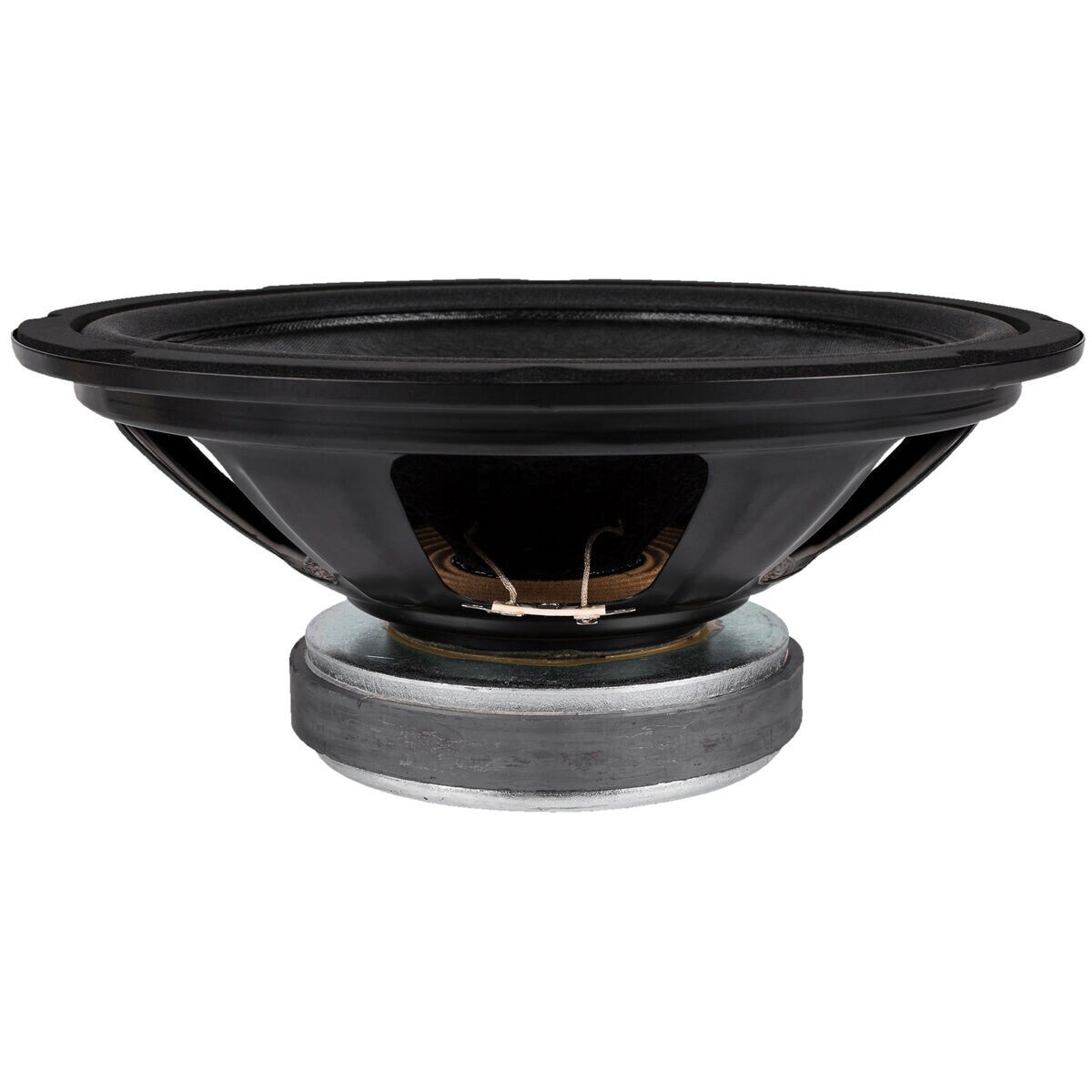

DL-1250-4 12" Coated Paper Cone Woofer with Foam Surround 4 Ohm

DL-1250-4 12" Coated Paper Cone Woofer with Foam Surround 4 Ohm. Part Number: 299-2132 by Factory Buyouts.

Factory Buyouts . 299-2132

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameDL-1250-4 12" Coated Paper Cone Woofer with Foam Surround 4 Ohm
UPC848864027227
Weight10.75
WeightUnitlbs
depth, length5.25
diameter, height, width12.06
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, SKU, Part Number299-2132
qtyInStock0
snippetDL-1250-4 12" Coated Paper Cone Woofer with Foam Surround 4 Ohm. Part Number: 299-2132 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.625
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance4?
Frequency Response35 to 3,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)33Hz
DC Resistance (Re)3.18?
Voice Coil Inductance (Le)0.84mH
Mechanical Q (Qms)6.94
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)5.03ft?
Mechanical Compliance of Suspension (Cms)0.38mm/N
BL Product (BL)9.18T?m
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)511.8cm?
Cone MaterialCoated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.06"
Baffle Cutout Diameter11"
Depth5.25"
# Mounting Holes8
Sealed Volume1.6ft?
Sealed F366Hz
Vented Volume5.1ft?
Vented F336Hz
