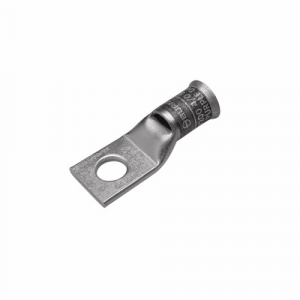

Order YA34TC58FXB by Burndy 50255T Lug UL Listed 90° C, 600 Volts to 35kV, (Pack of 25 pcs) - US Mega Store

UL Listed 90° C, 600 Volts to 35kV.

Burndy . YA34TC58FXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA34TC58FXB
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA34TC58FXB by Burndy 50255T Lug UL Listed 90° C, 600 Volts to 35kV, (Pack of 25 pcs) - US Mega Store
UPC781810129630
diameter, height, length1.06
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA34TC58FXB
qtyInStock-2
qtySourceFieldMap
snippetUL Listed 90° C, 600 Volts to 35kV.
tierPrice164.78
width1.55
width_AttribDimension - Pad Width inch
Color CodeBlue
Connector TypeTerminal
Die Index19
Feature - Barrel StyleBelled
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeLong Barrel, Tin Plated
UPC 12 Digit7818101296300
Dimension - B Length fraction2-1/2 in
Dimension - B Length inch2.48 in
Dimension - Bolt Hole Size inch, Dimension - N inch0.66 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size inch0.69 in
Dimension - Hole Size mm18 mm
Dimension - L Length Overall mm117 mm
Dimension - Length Overall inch4.60 in
Dimension - Outside Diameter inch1.06 in
Dimension - Pad Width inch1.55 in
Dimension - Strip Length inch2-9/16
Dimension - Z inch0.67 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size373.7 (925/#24)
Conductor - Copper DLO Size Range373 kcmil
Conductor - Copper Flex G Size, Conductor - Copper Flex H Size, Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size373.7
Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size Range, Conductor - Copper Str Size Range350 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA34TC58FXB1-211 @ $64.78
GalcoYA34TC58FXB-BURN111 @ $0.00
