BlackBox . IC466A

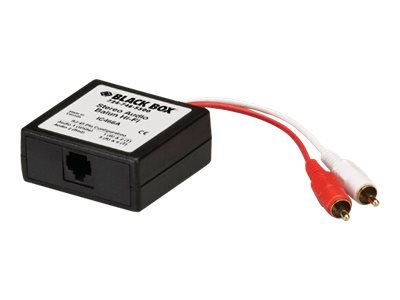

IC466A, Hi-Fi Stereo Audio Balun Features: Lightweight and compact-fits next to audio equipment. Baluns work with full-range, hi-fidelity audio frequency systems. Extend the distance between input and output devices up to 3250 feet (1 km). Use inexpensive UTP cable instead of bulky coax to link an analog audio source to an integrated audio-video receiver or audio Hi-Fi system. These tiny baluns are ideal for multimedia configurations-use them in boardrooms, classrooms, auditoriums, home installati
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BlackBox |
|---|---|
| DimensionUnit | foot |
| Weight | 0.2 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| moq, multiple | 1 |
| MPN, SKU | IC466A |
| qtyInStock, cUL, UL | 0 |
| width | 20.0 |
| width_Attrib | Bandwidth |
| Bandwidth | 20 Hz to 20 kHz at up to 3250 ft. (1 km)Input (Maximum) 1.1 Vp-p (unbalanced) |
| Cable Required | 24 AWG or lower solid copper unshielded twisted-pair (UTP) cable; Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/ft.; Attenuation: 6.6 dB/1000 ft. (305 m) at 1 MHz |
| CE Approval | Yes |
| Common Mode Rejection | Greater than 60 dB at 1 kHz, greater than 40 dB at 20 kHz and 3250 ft. (1 km) |
| Connectors | Audio: (2) RCA connectors on a 6" (15.2-cm) Y cable; UTP: (1) RJ-45 |
| Distance (Maximum) | 3250 ft. (1 km) |
| Enclosure | ABS fire-retardant plastic |
| Impedance | Audio source: 100 ohms; Audio receiver: 10 kohms or greater |
| Insertion Loss (Maximum) | Per balun pair: Less than 2 dB |
| Size | 1"H x 2.4"W x 2.3"D (2.5 x 6.1 x 5.8 cm) |
| Transmission | Transparent to the user |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Megadepot | IC466A | 1 | 1 | ||
| G2137726 | 1 | 1 | 1 @ $59.01 | ||
| 1373224 | 1 | 1 | 1 @ $59.95 | ||
 PCNation | 0434AF | 1 | -2 | 1 | 1 @ $55.76 |
| barcodegiant.com | BLA628164 | 1 | 1 | 1 @ $50.90 | |
 usmegastore.com | IC466A | 1 | Contact Us | 1 | 1 @ $58.75 |
| Newark | 16M8965 | 1 | 1 |
