mpn:
brand:
manufacturer:
MPN:
Description:

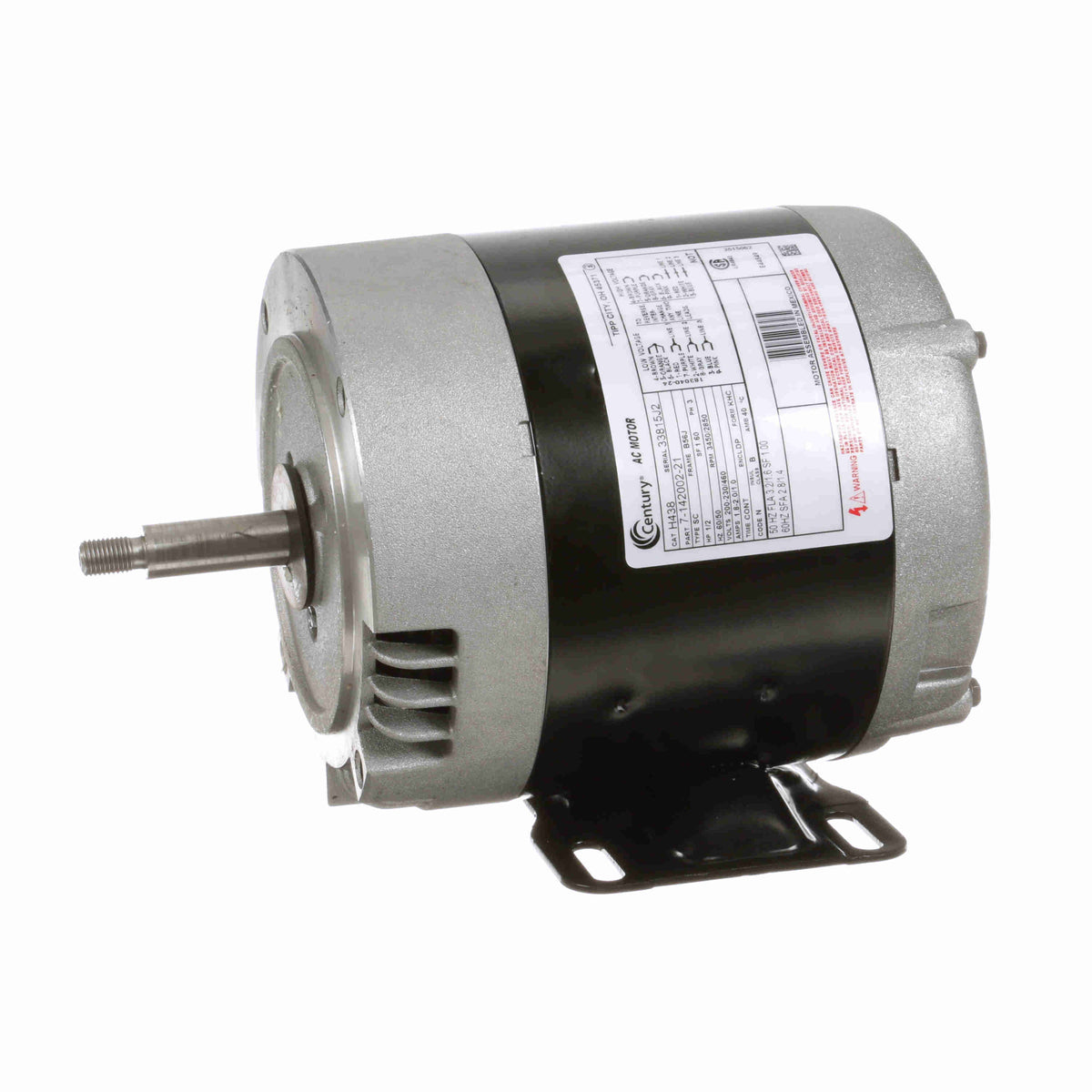

Product Type: 3 PhaseHP: 1/2RPM: 2850/3450Volts: 200-230/460Amps: 1.8/2/1Hz: 50/60Phase: 3Frame: 56JEnclosure Type: ODP (Open Dripproof)Mounting: C-Face/RigidMotor Diameter: 6-1/2"Shaft Diameter: ThreadedRotation: ReversibleNumber of Speeds: 2Service Factor (SF): 1.60Bearings: BallThermal Protection: NoneMaximum Ambien
Attributes
| Key ^ | Value |
|---|---|
| Amps | 1.8/2/1 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 56J |
| H438 is listed in Century's cross reference as a substitute for the following | A.O. Smith 142002, Century 142002, Marathon J048, Marathon V56T34D5367 |
| HP | 1/2 |
| Hz | 50/60 |
| Insulation Class | B |
| Maximum Ambient Temperature | 40? C |
| Motor Diameter | 6-1/2" |
| Mounting | C-Face/Rigid |
| Number of Speeds | 2 |
| Phase | 3 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 2850/3450 |
| Service Factor (SF) | 1.60 |
| Shaft Diameter | Threaded |
| Ship Weight | 18 lbs. |
| Thermal Protection | None |
| Volts | 200-230/460 |
