| Country of Origin (subject to change) | Multiple |
| Duty, Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Full Load Amps | 11.4/5.7-5.7 |
| HP | 3/4 |
| Hz | 60 |
| Ins. Class | F |

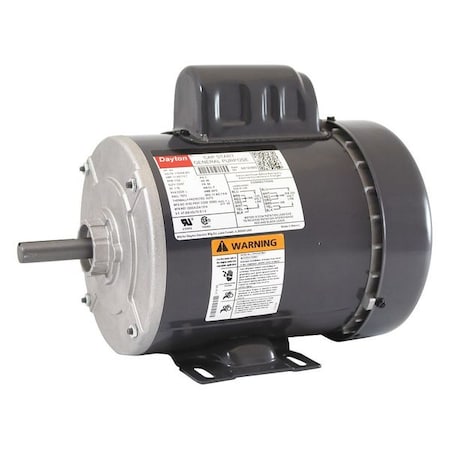

| Item | General Purpose Motor |
| Length Less Shaft | 11 in |
| Manufacturers Warranty Length | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1,725 |
| No. of Speeds | 1 |
| Nominal Efficiency | 65 % |
| Overall Length | 11 7/8 in |
| Phase | Single |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Standards | CSA (225293), UL (E47479) |
| Voltage | 115/208-230V AC |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
