Attributes
| Key | Value |
|---|---|
| Country of Origin (subject to change) | United States |
| Finish | Gray Metallic |
| Housing Material | Cast iron |
| HP | 0.4 |
| Includes | Muffler |

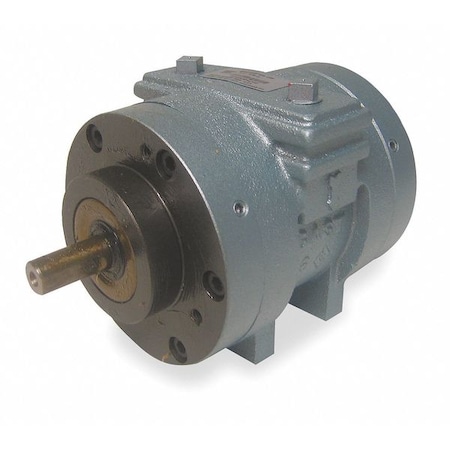

| Item | Air Motor |
| Keyway Length | 1.41" |
| Max. Air Flow | 30 cfm |
| Max. Air Pressure | 80 psi |
| Mounting | Hub |
| No Load RPM | 2000 |
| Operating Temp. Range | 0 Degrees to 250 Degrees F |
| Overall Height | 4.19" |
| Overall Length | 5.88" |
| Overall Width | 3.94" |
| Port Size | 1/4" NPT |
| Rotation | CW |
| RPM @ Max. Torque | 500 |
| Running Torque @ Max. Pressure | 13.50 in.-lb. |
| Shaft Dia. | 1/2" |
| Shaft Length | 2.06" |
| Stall Torque | 20 in.-lb. |
