Description:

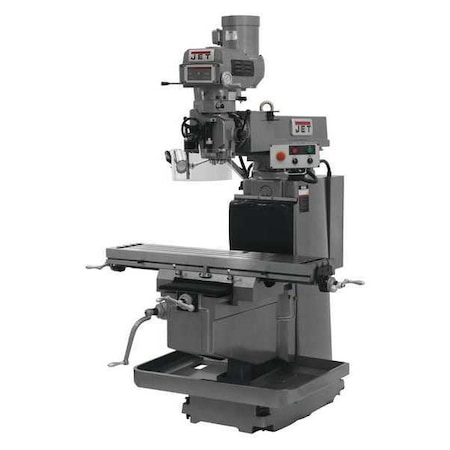

Knee/Column Milling Machine, Table Length 12 in, Table Width 54 in, 5 hp, Table Load Capacity 925 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 33-7/8 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 3,800 RPM
Attributes
| Key ^ | Value |
|---|---|
| Cross Travel (In.) | 15-21/64 |
| Feed Rate for Power Down Feed (In.) | 0.0015, 0.003, 0.006 |
| Item | Knee/Column Milling Machine |
| Knee Travel (In.) | 19-1/4 |
| Longitudinal Travel | 33-7/8 in |
| Longitudinal Travel (In.) | 33.88 |
| Motor HP | 5 |
| Overall Depth | 92 1/8 in |
| Overall Height | 104 1/4 in |
| Overall Length | 79-7/8 in |
| Overall Width | 79-7/8" |
| Phase | 3 |
| Quill Dia. | 4 1/8 in |
| Quill Dia. (In.) | 4-1/8 |
| Ram Travel Length | 25 in |
| Spindle Speed (RPM) | 80 to 3800 |
| Spindle Taper Size | NST40 |
| Spindle Travel Length | 5 in |
| T-Slot Size (In.) | 3-5/8 |
| Table Length | 12 in |
| Table Size (In.) | 12 x 54 |
| Table Width | 54 in |
| Type | Variable Speed NST40 |
| Voltage | 230/460V |
