mpn:
brand:
manufacturer:
MPN:
Description:

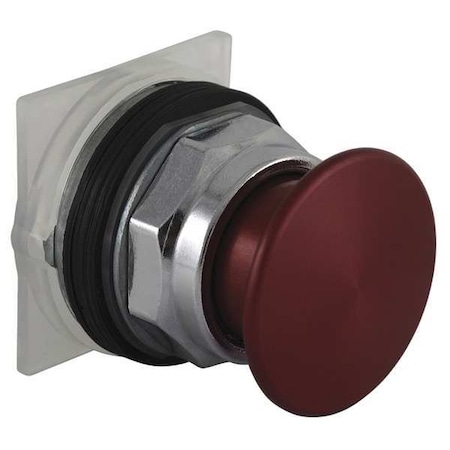

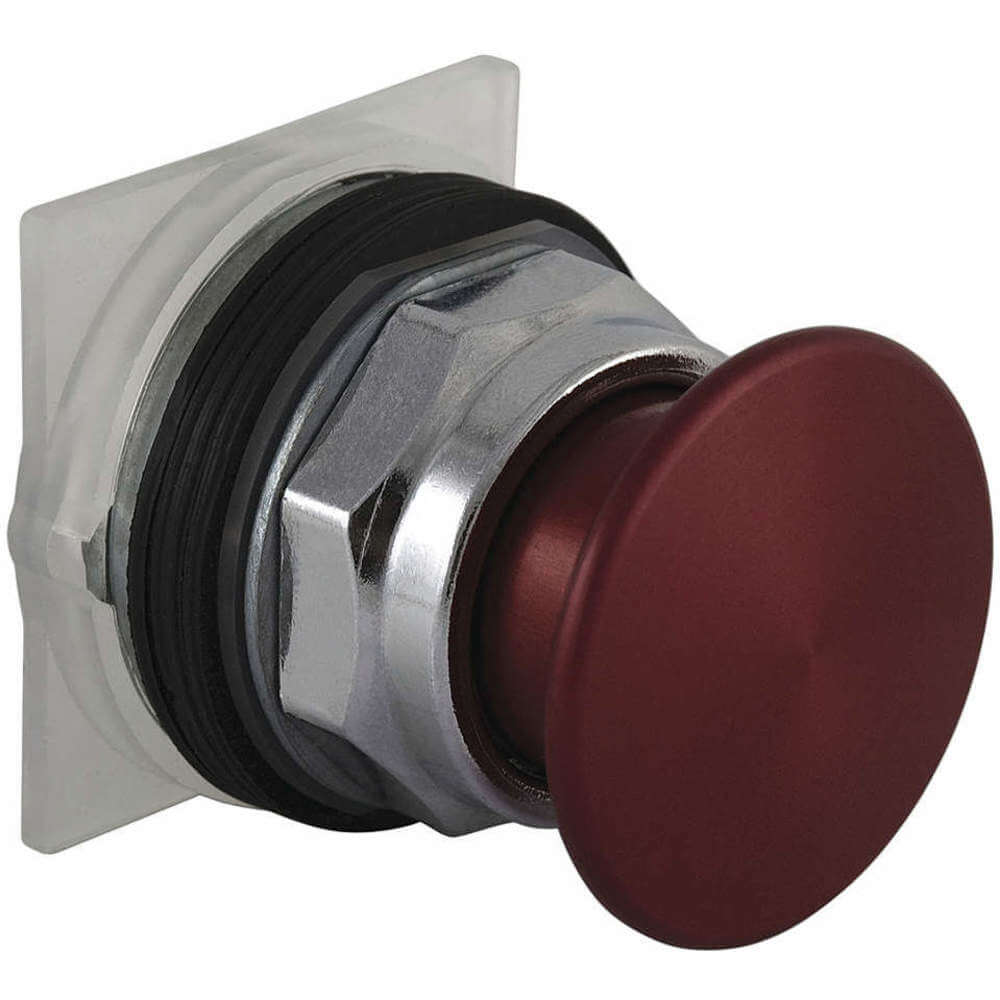

9001K Series, Red Push Button Head, Momentary, 31mm Cutout
Weight:
0.01875
Weight:
0.3 LB
Preferred Price:
111.24
Price:
111.24
Min Simple Price:
60.79
Absolute Min Price:
86.32
Min Price:
86.32
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
MDU0Mw:::9001KR24RM
sku:
MDU0Mw::F2:9001KR24RM@y0
condition:
11
seller:
Allfuses
amzMan:
square d/telemecanique
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| (Select First, Then Apply Filters) Compatible Series | Schneider, Harmony 9001K |
| Accessory Group | Type K and SK Accessories |
| Action | SPRING RETURN, Momentary Push |
| Actuator | Red mushroom ? 40 mm, unmarked; spring return;Mushroom ? 40 mm;Spring return |
| Actuator Type | Mushroom 30 mm, Pushbutton, Mushroom |
| Ambient Air Temperature For Operation | -25-70?C |
| Application | Contact block 9001KA.. |
| Basic Material, Material | Metal |
| Bezel Material | Chrome Die Cast Aluminum |
| Brand | Square D by Schneider Electric |
| Cad Overall Depth | 70 mm |
| Cad Overall Height | 45 mm |
| Cad Overall Width | 45.5 mm |
| Catalog Number, Manufacturer Product Number | 9001KR24RM |
| Category | Switches |
| Color, Color Family, Illumination Color, Indicator | Red |
| Contact Configuration, Contacts Type And Composition | without contact block |
| Country of Origin | MX - Mexico, Mexico |
| Description | MOMENTARY PUSH BUTTON |
| Detailed Description | Configurable Switch Body Pushbutton, Mushroom Non-Illuminated |
| Digi-Key Part Number | 4008-9001KR24RM-ND |
| ECCN | EAR99 |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR) |
| Head Material | Aluminum-Zinc Alloy |
| IEC Rating | IP66 |
| Illumination | Non-Illuminated, Illuminated |
| Ip Degree Of Protection | IP66 IEC 60529 |
| IP Rating | 66 |
| Item Type | Head for push-button |
| Item, Product Type | Push Button Operator |
| Legend | No Legend |
| Made in USA | No |
| Manufacturer Standard Lead Time | 1 Weeks |
| Manufacturer, Mfr | Schneider Electric |
| Mounting Diameter, Size | 30 mm |
| Mounting Hole Size | 30 |
| Mounting, Mounting Type | Panel Mount |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| No. of Positions | 2-Position |
| Number of Operators | 1 |
| Operating Temperature | -25-70 A Degrees C |
| Operation, Type | Momentary |
| Operator Shape | Round |
| Package | Box |
| Panel Cutout Dimensions | 30mm (Round) |
| Primary Type | Pushbutton |
| Product Certifications | UL 508 || NEMA |
| Product Status | Active |
| Protective Treatment | TC |
| Requires | Contact Block(s) |
| Series | Harmony 9001K Series, Harmony, Harmony 9001K |
| Size | 1.18 |
| Special Features | SCREW-IN WITH SET SCREW SECURITY |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C 4520-JIS C 852-UL 508-CSA C22.2 NO 14,IP66 IEC 60529,UL 508-NEMA |
| Standards | CE, CSA, UL |
| Sub Brand | 9001K |
| Termination | Screw |
| Type of Operator | 40mm Mushroom Head |
| UNSPSC | 39122216 |
| UPC, UPC Code | 785901688099 |
| Voltage Rating | 600V |
| Warranty Description | Contractual Warranty:18 months |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Allfuses | 9001KR24RM | 60.79 | 60.79 | 1 | 5 | Square D | 60.79 @ Qty: 1+ | ||
 | Zoro | G4604582 | 63.29 | 63.29 | 1 | In Stock | Schneider Electric | 0.3 | 63.29 @ Qty: 1+ | |
 | Raptor Supplies | AF7ZWQ | 88.628202 | 88.628202 | 1 | In Stock | SCHNEIDER ELECTRIC | 88.628202 @ Qty: 1+ | ||
 | mostelectric.com | 9001KR24RM | 89.5 | 89.5 | 1 | 4 | SQUARE D/TELEMECANIQUE | 89.5 @ Qty: 1+ | ||
| us.rs-online.com | 70343226 | 92.68 | 92.68 | 1 | In Stock | Square D | 92.68 @ Qty: 1+ | |||
| standardelectricsupply.com | 2188707 | 94.13 | 94.13 | 1 | In Stock | Square D | 94.13 @ Qty: 1+ | |||
 | Digi-Key | 16613352 | 98.59 | 98.59 | 1 | In Stock | Schneider Electric | 98.59 @ Qty: 1+ | ||
| Graybar | 25145797 | 100.8 | 100.8 | 1 | In Stock | Square D (Schneider Electric) | 100.8 @ Qty: 1+ | |||
| Newark | 34M1393 | 113.62 | 113.62 | 1 | In Stock | SCHNEIDER ELECTRIC | 113.62 @ Qty: 1+ | |||
 | National Supply Network | 54424650 | 132.52 | 132.52 | 1 | In Stock | Schneider Electric | 132.52 @ Qty: 1+ | ||
 | crescentelectric.com | 152847 | 149.27 | 149.27 | 1 | In Stock | Square D by Schneider Electric | 149.27 @ Qty: 1+ |
